Integrated Relay Control Module - Manual Revision


9207ford01

Article No.
91-25B-4

12/20/91

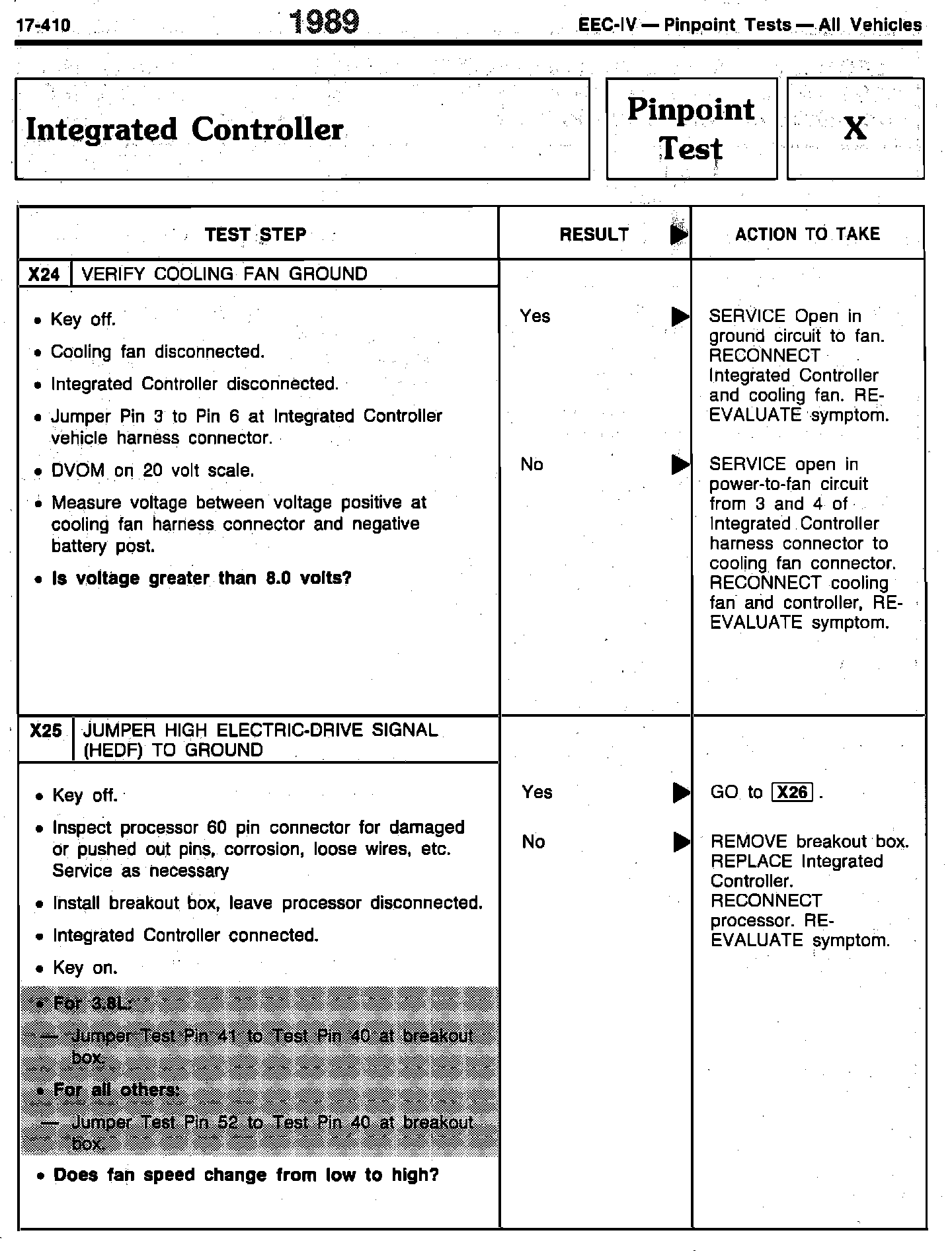

ENGINE/EMISSIONS DIAGNOSIS MANUAL - 1989 - PAGE 17-410 - IRCM DIAGNOSTICS REVISED


FORD: 1989 TAURUS

LINCOLN-MERCURY: 1989 CONTINENTAL, SABLE





ISSUE: Integrated Relay Control Module (IRCM) diagnostics for the 3.8L Taurus/Sable and Continental must be revised. Page 17-410 of the 1989 Engine/Emissions Diagnosis Manual is affected.


ACTION: Refer to the pages for the revised information.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 690000
