Identifying Control Module & Switch Connectors

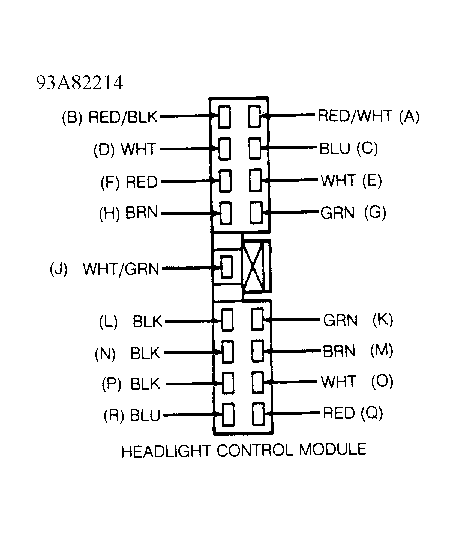

Fig 1: Headlight Control Module Connector Terminal ID
G93A82214Courtesy of FORD MOTOR CO.

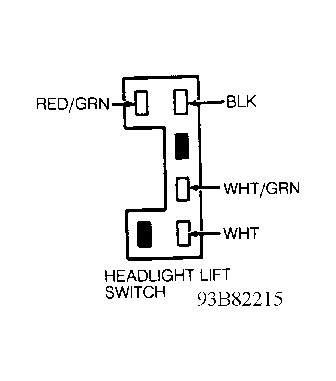

Fig 2: Headlight Lift Switch Connector Terminal ID
G93B82215Courtesy of FORD MOTOR CO.

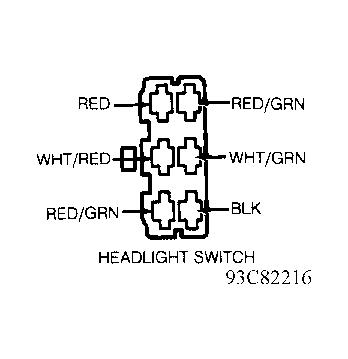

Fig 3: Headlight Switch Connector Terminal ID
G93C82216Courtesy of FORD MOTOR CO.

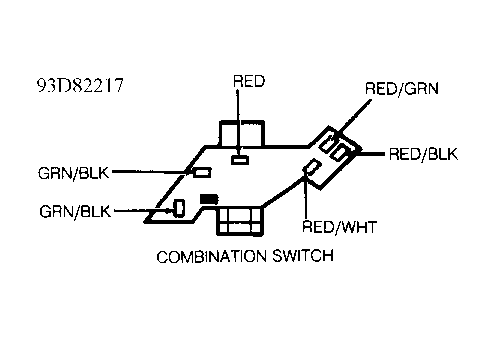

Fig 4: Combination Switch Connector Terminal ID
G93D82217Courtesy of FORD MOTOR CO.
