Connector Views
C123/C122-Manual Lever Position Switch

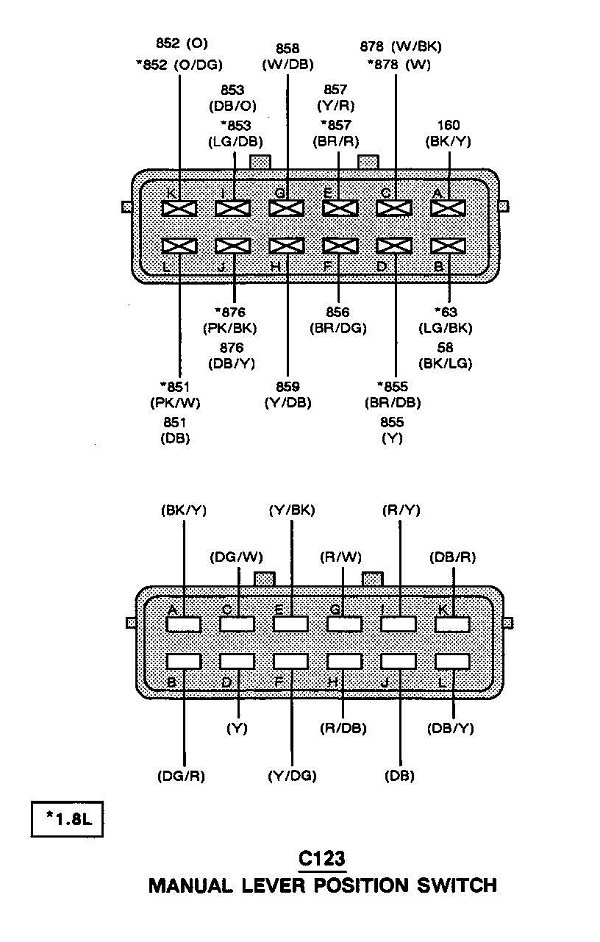

C123-MLP (1 Of 2):
C123-MLP (2 Of 2):

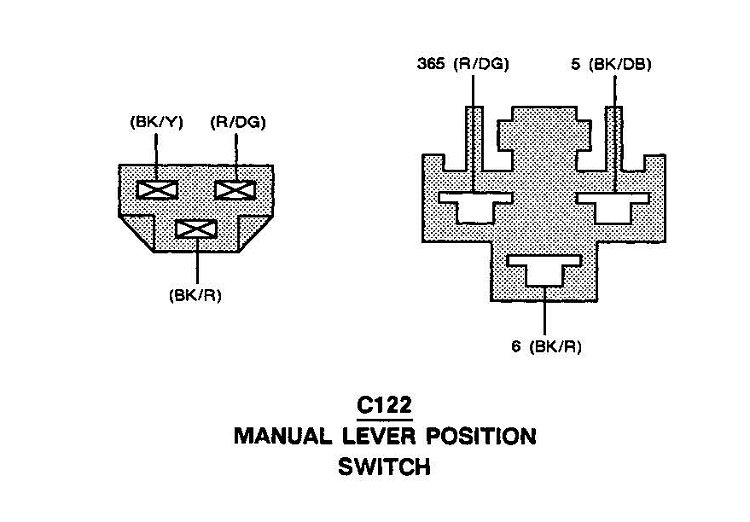

C122-MLP:
