Main Switch

Remove power window main switch and disconnect connector. See POWER WINDOW SWITCH  under REMOVAL & INSTALLATION. Using a test lamp or ohmmeter, test the power window switch at specified terminals for specified switch positions. Replace switch if operation is not as specified. See Fig 1 .

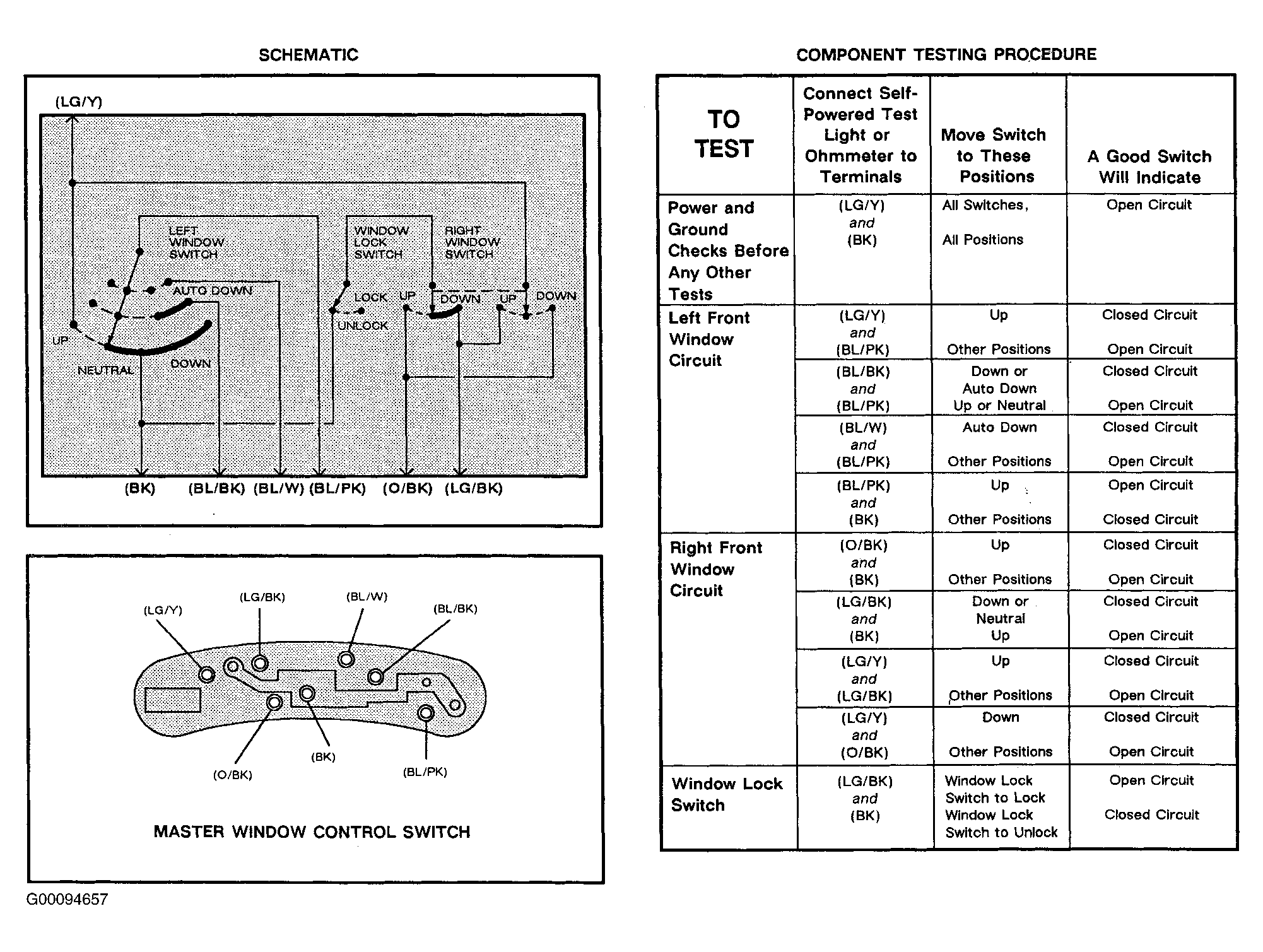

Fig 1: Testing Power Window Main Switch
G00097657Courtesy of FORD MOTOR CO.
