Coolant Level Sensor: Installation
WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

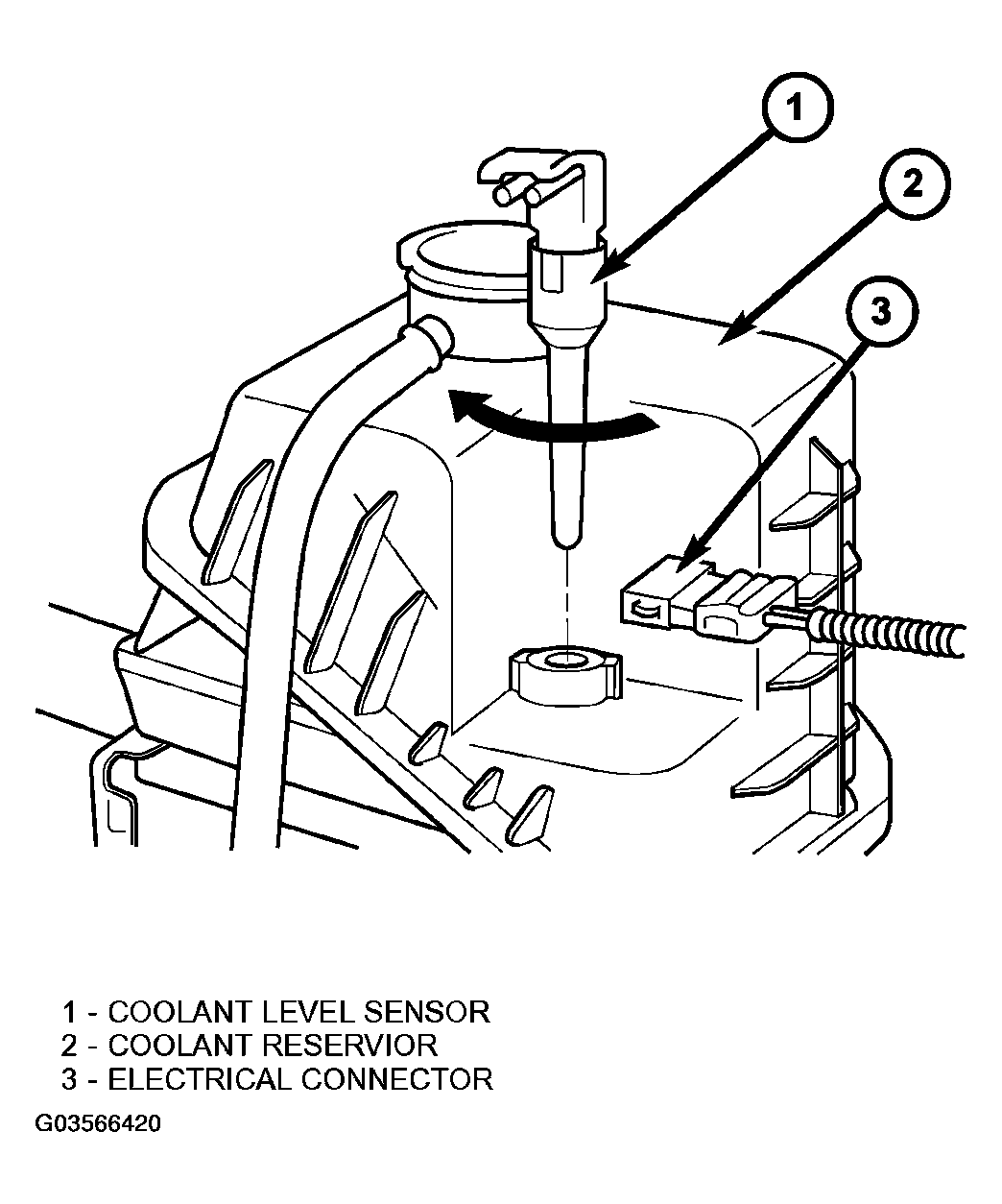

- Align coolant level sensor with coolant reservior access whole, press down while turning counterclockwise 90 degrees to seat sensor (Fig 1).
- Connect coolant level sensor electrical connector (Fig 1).
- Refill cooling system to proper level (Refer to STANDARD PROCEDURE ).
- Inspect for leaks.
