Glow Plug: Installation

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

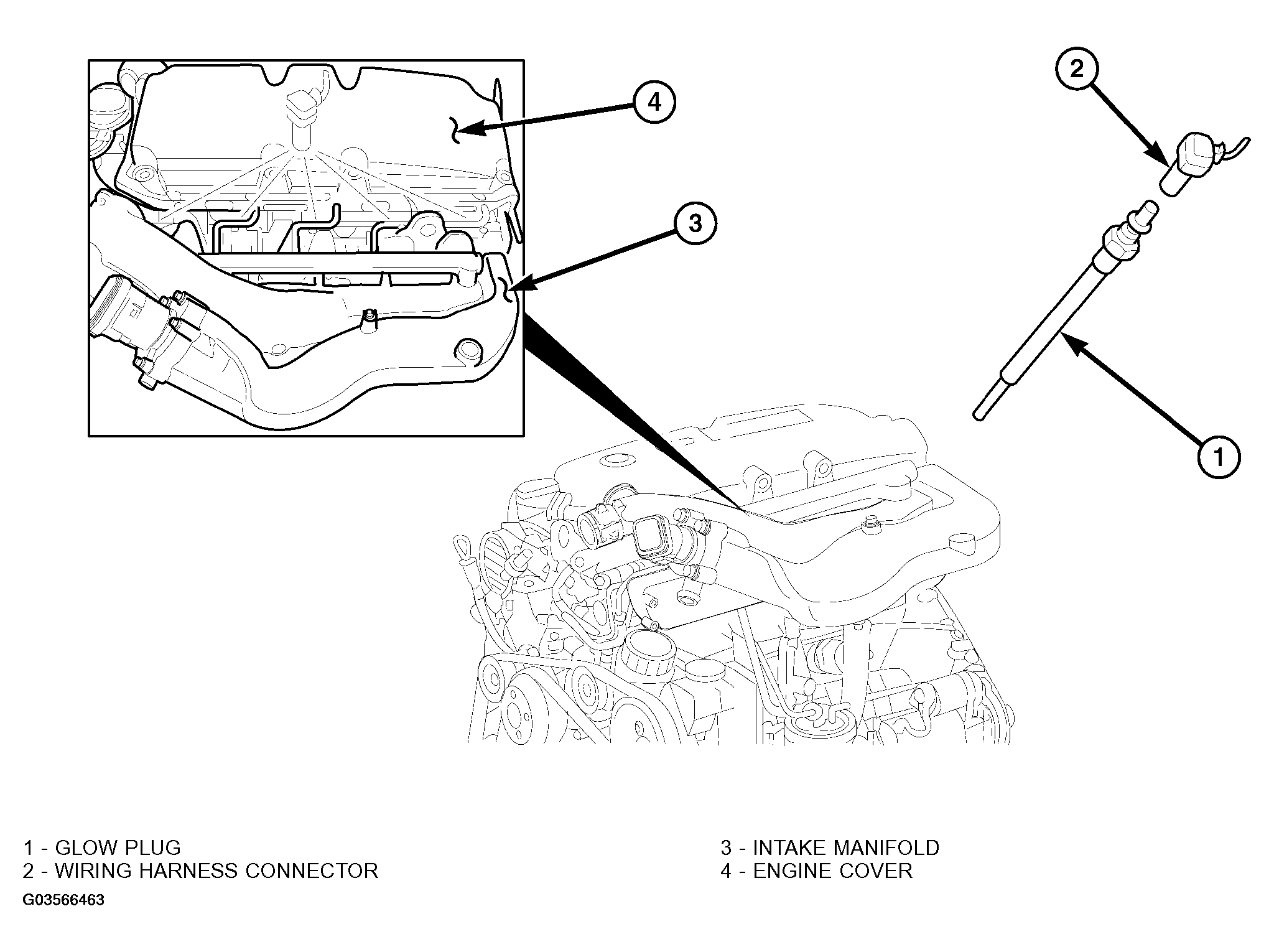

  1. Screw glow plug(s) into cylinder head and tighten to 12 N.m (115 lbs. in) (Figure ).
  2. Connect the glow plug wiring harness connector(s)
  3. Install the engine cover.
  4. Connect negative battery cable.
