Speed Control: Description

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

The speed control system is electronically controlled by the Engine Control Module (ECM). A cable and a vacuum controlled servo are not used. This is a servo-less system. Control of the system is accomplished by a 4-position, instrument panel mounted switch (Fig 1 ).

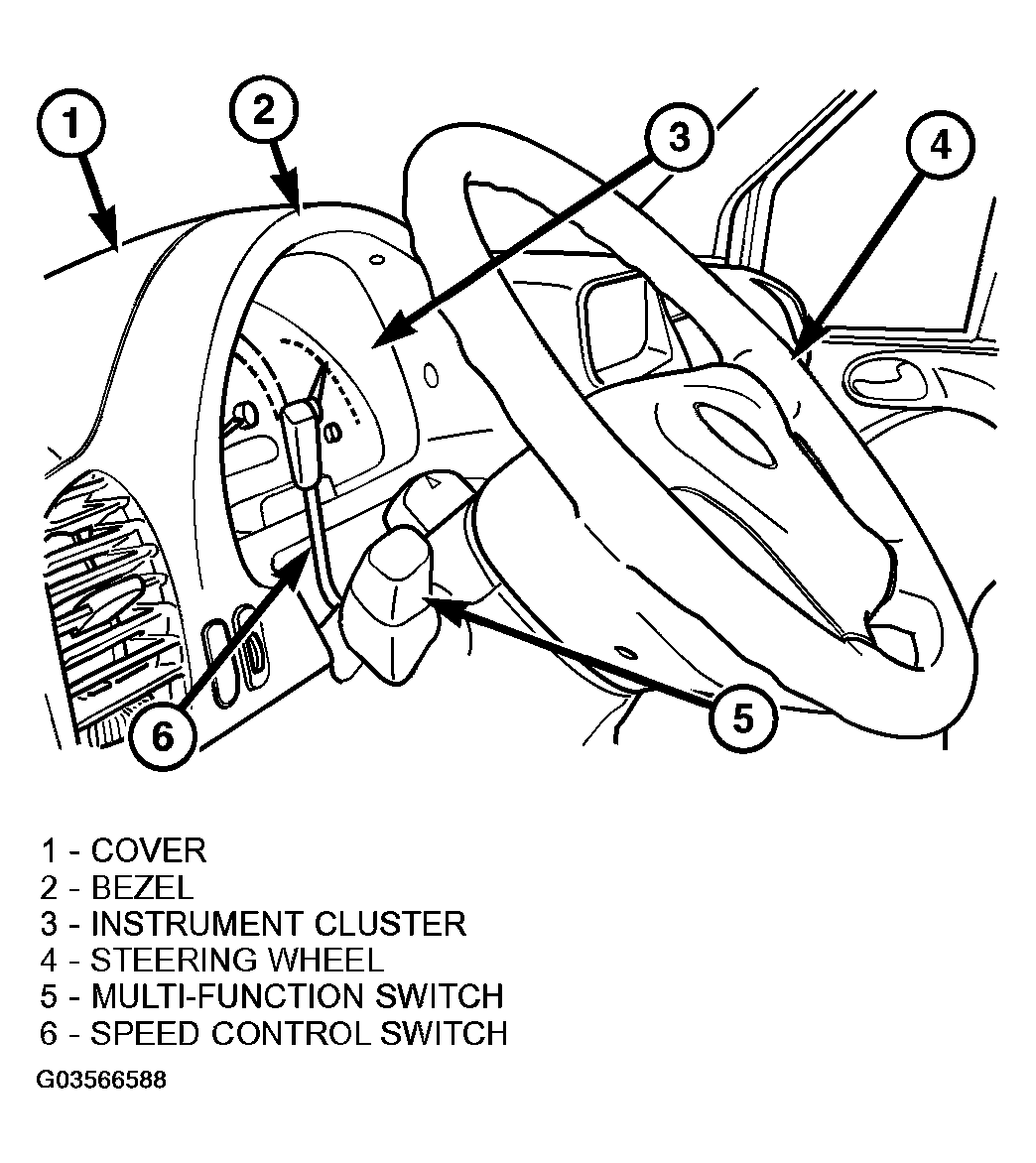

Fig 1: Locating Speed Control Switch

Courtesy of DAIMLERCHRYSLER CORP.

Switch settings ( Fig 2 ) are:

Set / Accelerate
Resume Set Speed
Set / Decelerate
Off
The system is designed to operate at speeds above 25 mph (40 km/h).

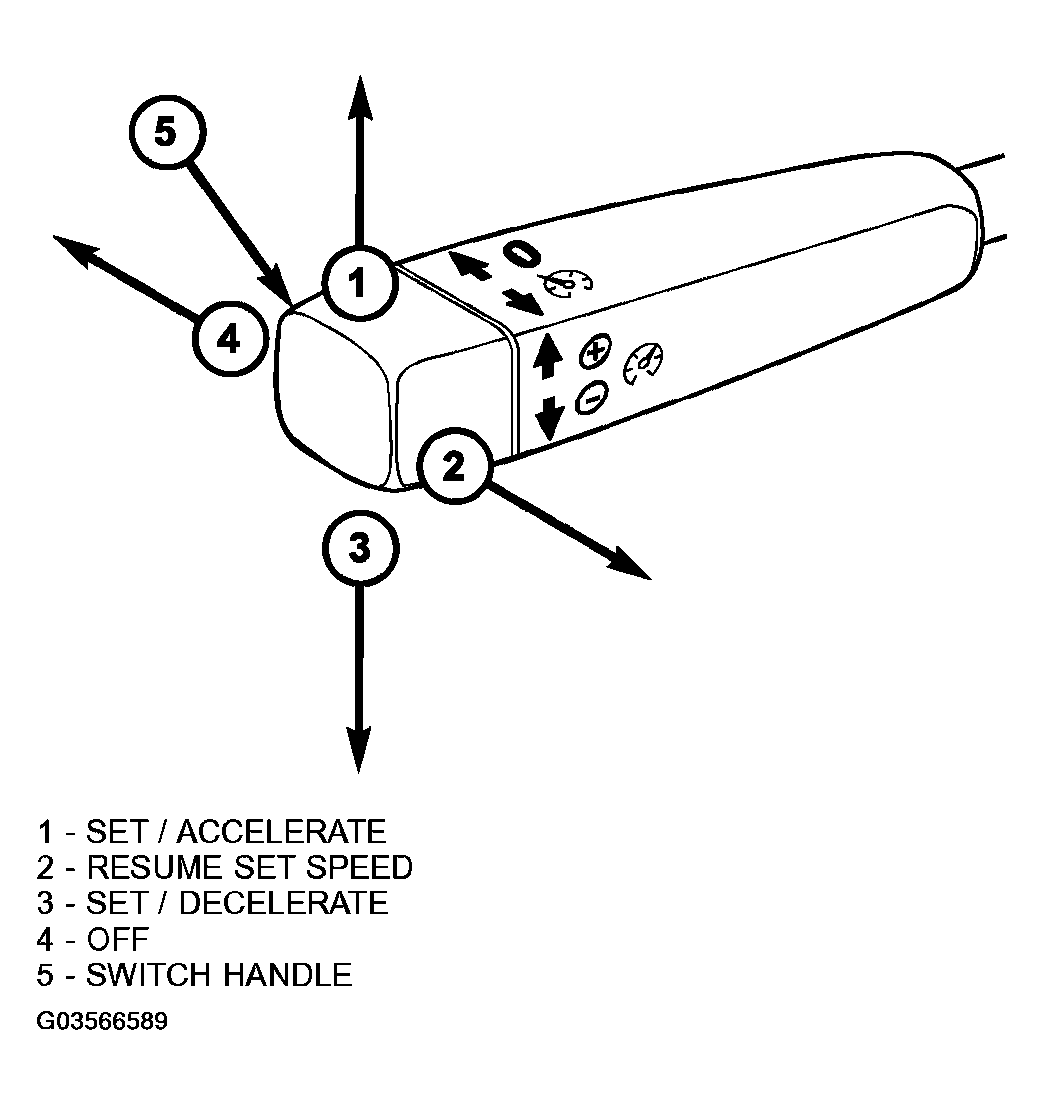

Fig 2: Identifying Speed Control Switch Functions

Courtesy of DAIMLERCHRYSLER CORP.

WARNING: THE USE OF SPEED CONTROL IS NOT RECOMMENDED WHEN DRIVING CONDITIONS DO NOT PERMIT MAINTAINING A CONSTANT SPEED, SUCH AS IN HEAVY TRAFFIC OR ON ROADS THAT ARE WINDING, ICY, SNOW COVERED, OR SLIPPERY.
