Section 295 (Speed Control): Switch: Installation
WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

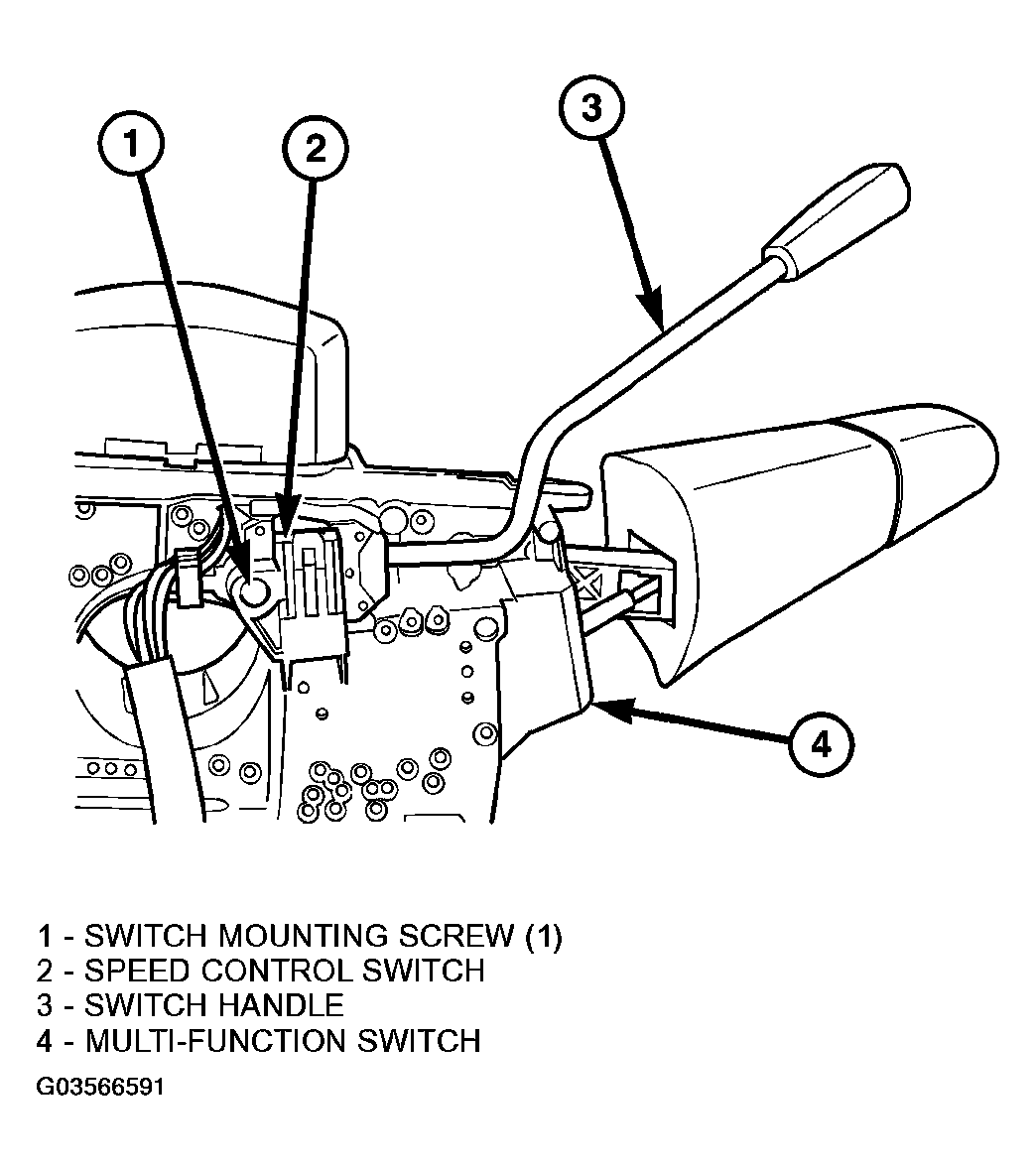

The speed control switch is mounted to the back of the multi-function switch (Figure ).
- Position speed control switch to back of multifunction switch.
- Install switch mounting screw (Figure
). Refer to TORQUE SPECIFICATIONS
table.
Install multi-function switch. Refer to INSTALLATION .

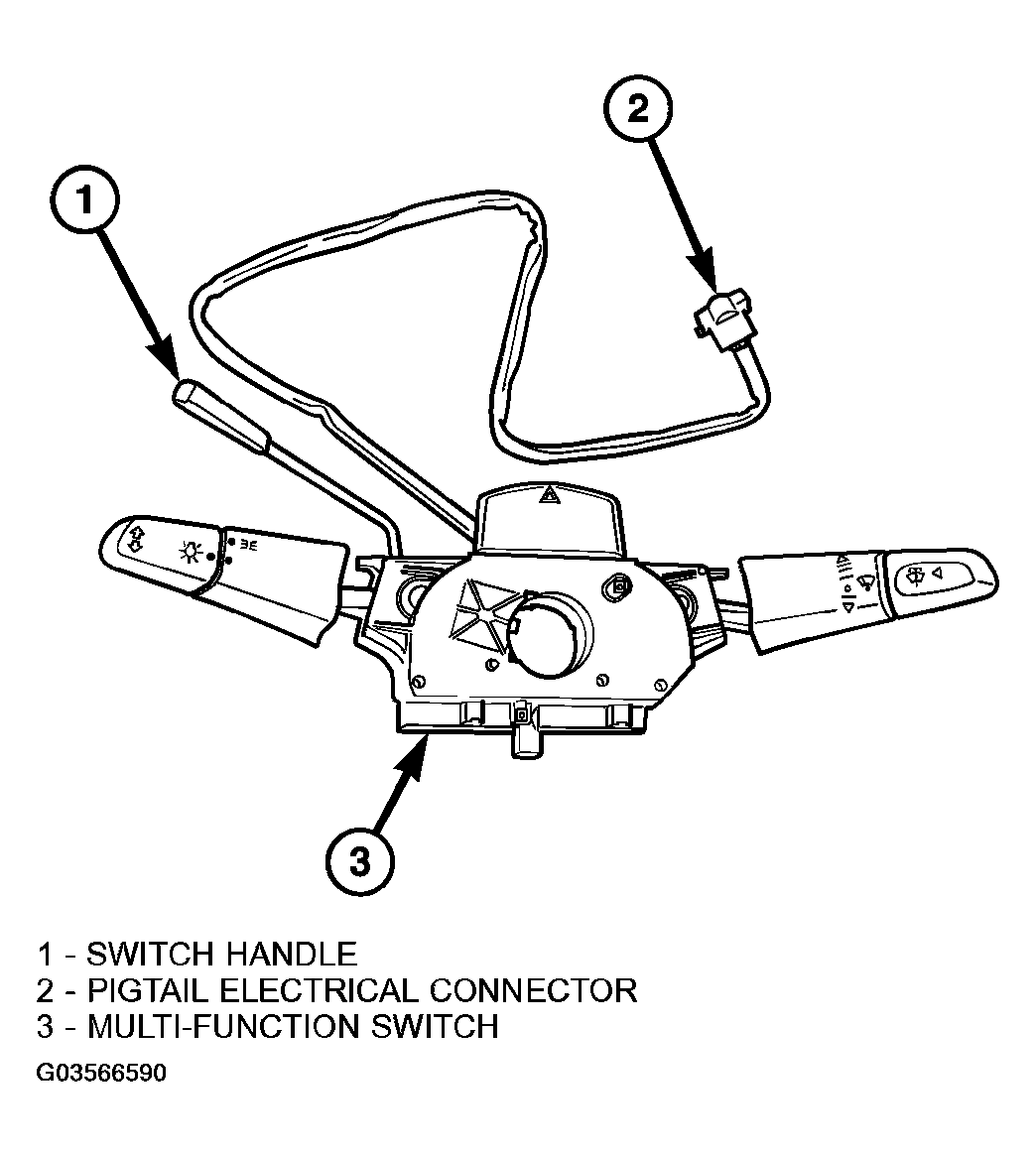

- Plug pigtail electrical connector (Figure ) into instrument panel wiring harness. Be sure wires are not pinched.
- Install negative battery cable to battery.
