Installation - 2.4L

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install sensor.
  2. Install two screws and tighten.

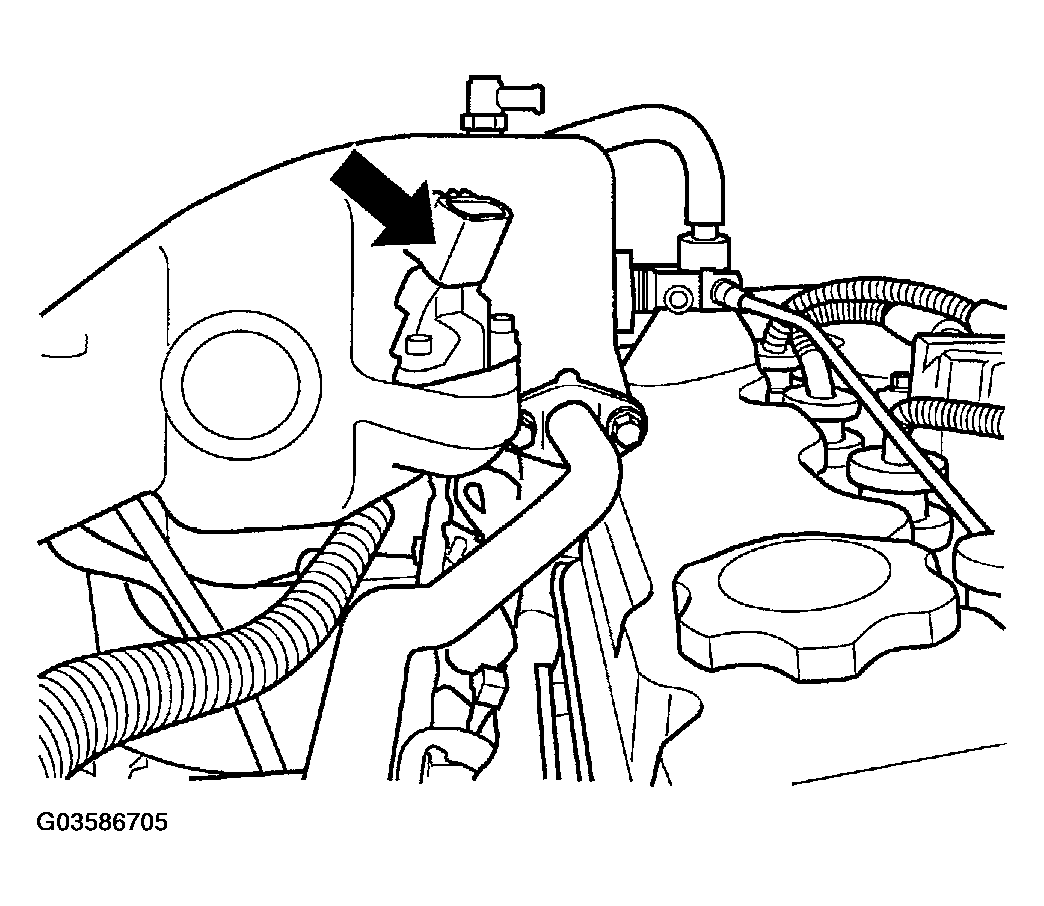

  3. Connect the electrical connector and vacuum hose to the MAP sensor (Figure).
  4. Connect the negative battery cable.
