UNDERHOOD Fuse Panel Identification: Notes

The "high-current" fuse panel is located in the engine compartment on the L/H fender apron.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

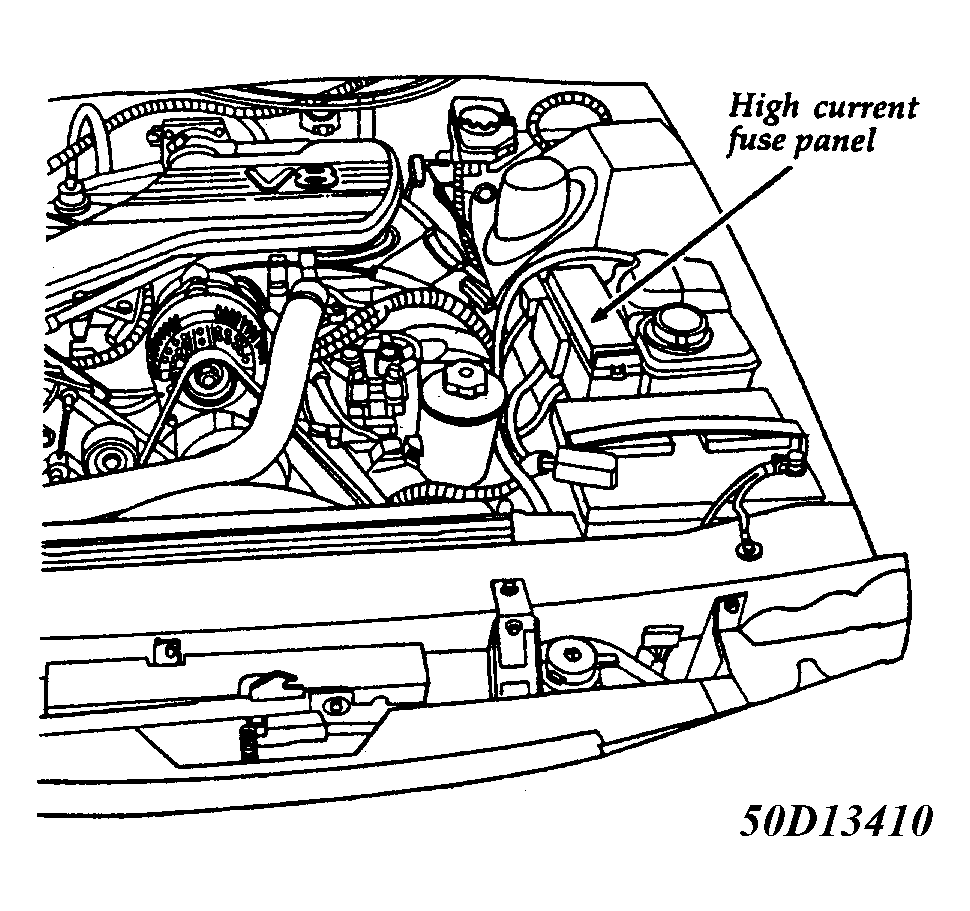

Fig 1: High Current Fuse Panel Location
G50D13410Courtesy of FORD MOTOR CO.

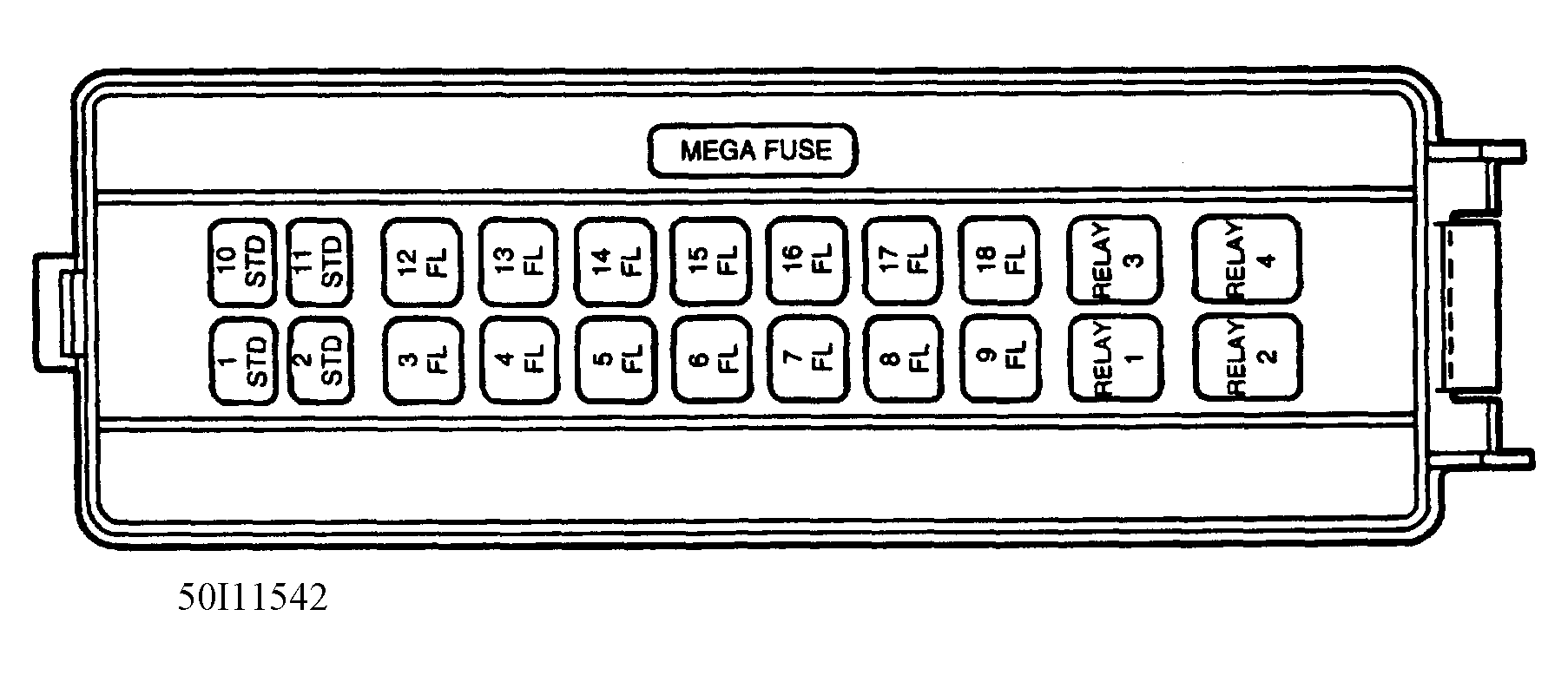

Fig 2: Underhood Fuse Panel Identification
G50I11542Courtesy of FORD MOTOR CO.
