Speed Control Servo
WARNING: This page is about a different car, the 1996 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Ensure speed control servo cable is not kinked or twisted. DO NOT pull excessively on servo cable during adjustment.

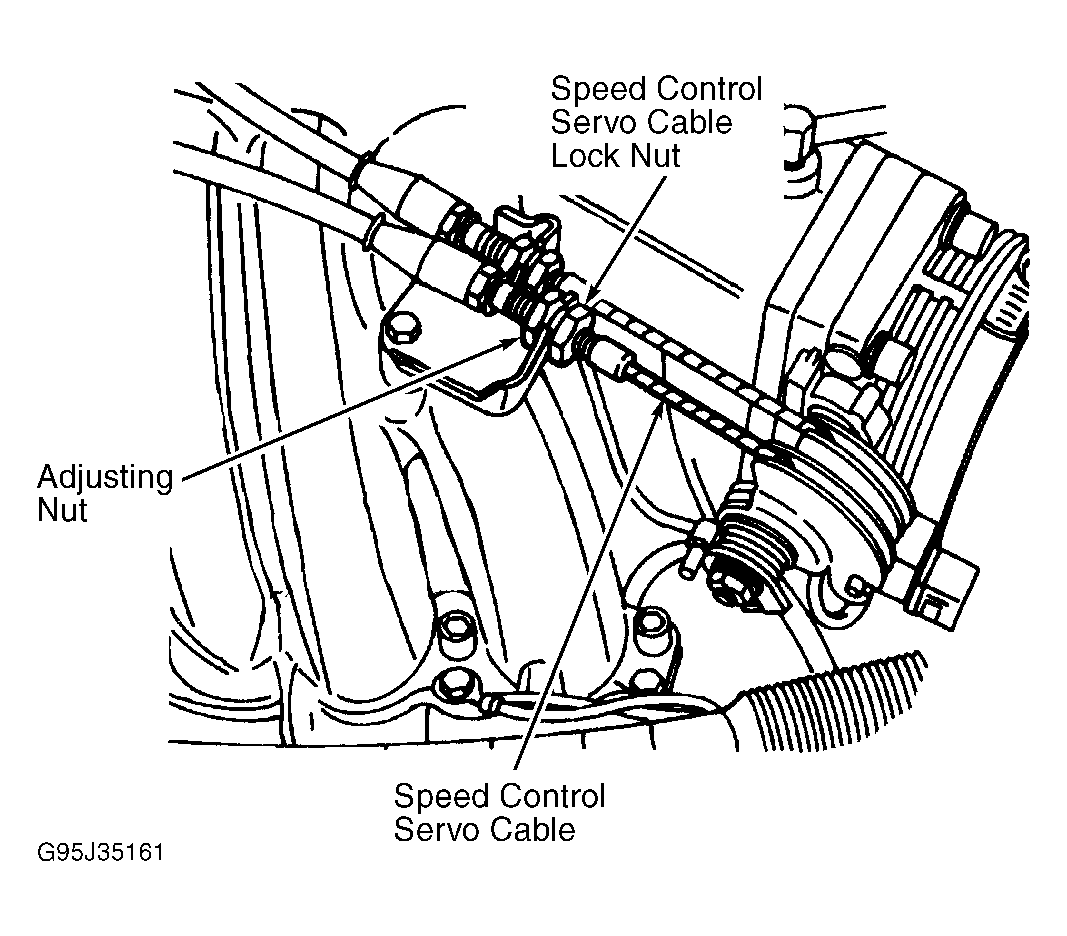

Check accelerator cable adjustment. To adjust servo, turn adjusting nut on cable until throttle is in fully closed position and adjusting nut is against accelerator cable bracket. See Fig 1 . Turn adjusting nut1/2 to 1 turn counterclockwise. Tighten speed control servo cable lock nut to 71-97 INCH lbs. (8-11 N.m). Test speed control system for proper operation.
