Pinpoint Test H: No Module / Network Communication - SCP Link
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

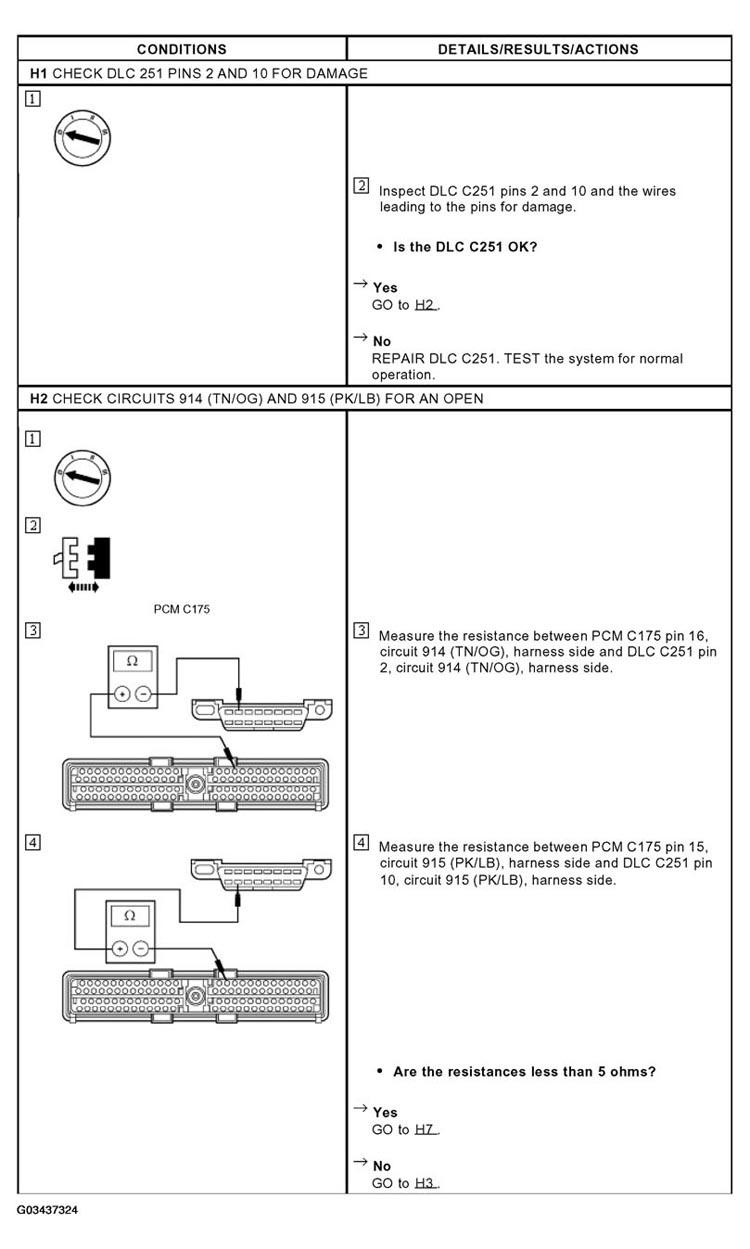

Fig 1: Pinpoint Test H: No Module / Network Communication - SCP Link (H1-H2)
Courtesy of FORD MOTOR CO.

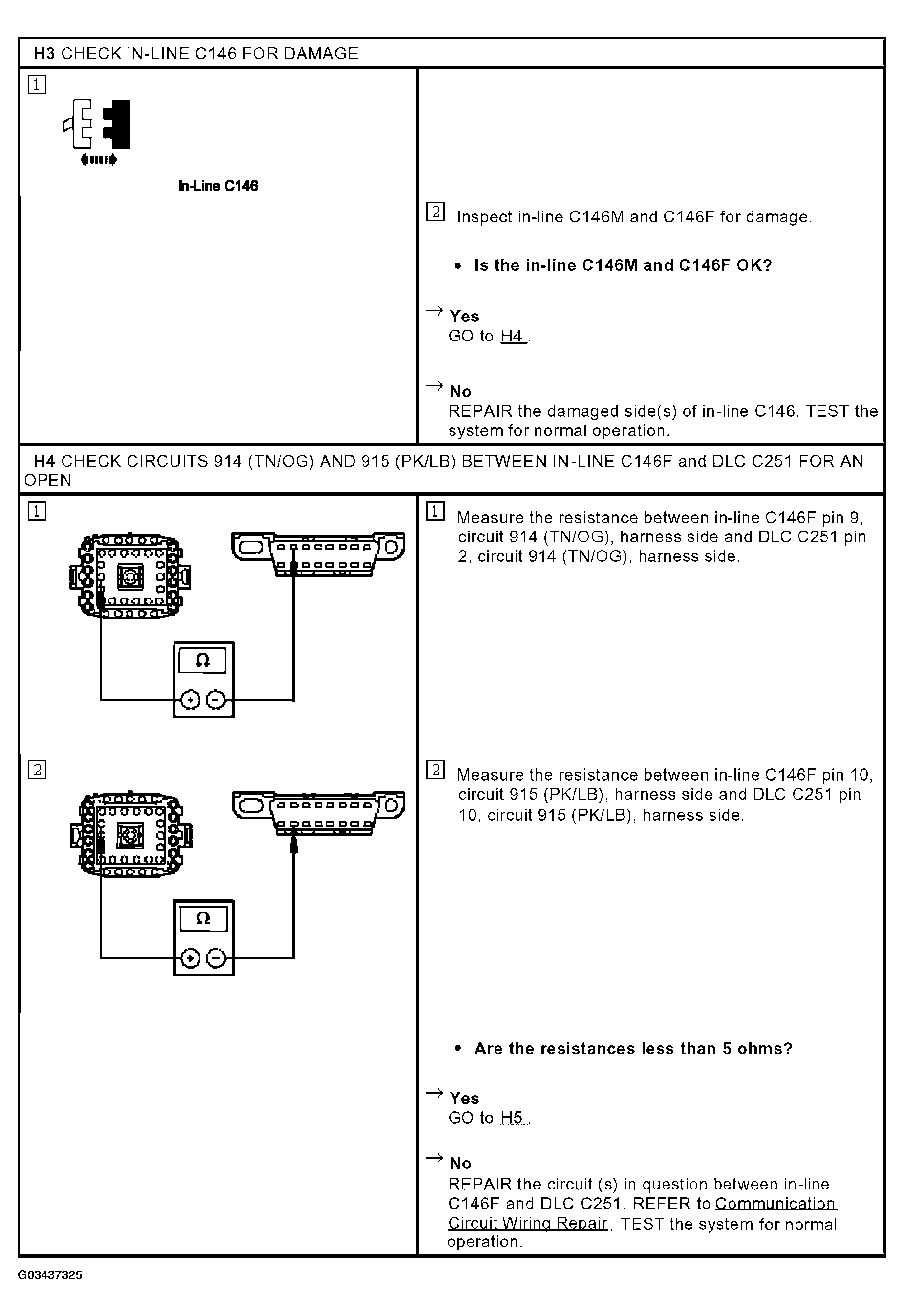

Fig 2: Pinpoint Test H: No Module / Network Communication - SCP Link (H3-H4)
Courtesy of FORD MOTOR CO.

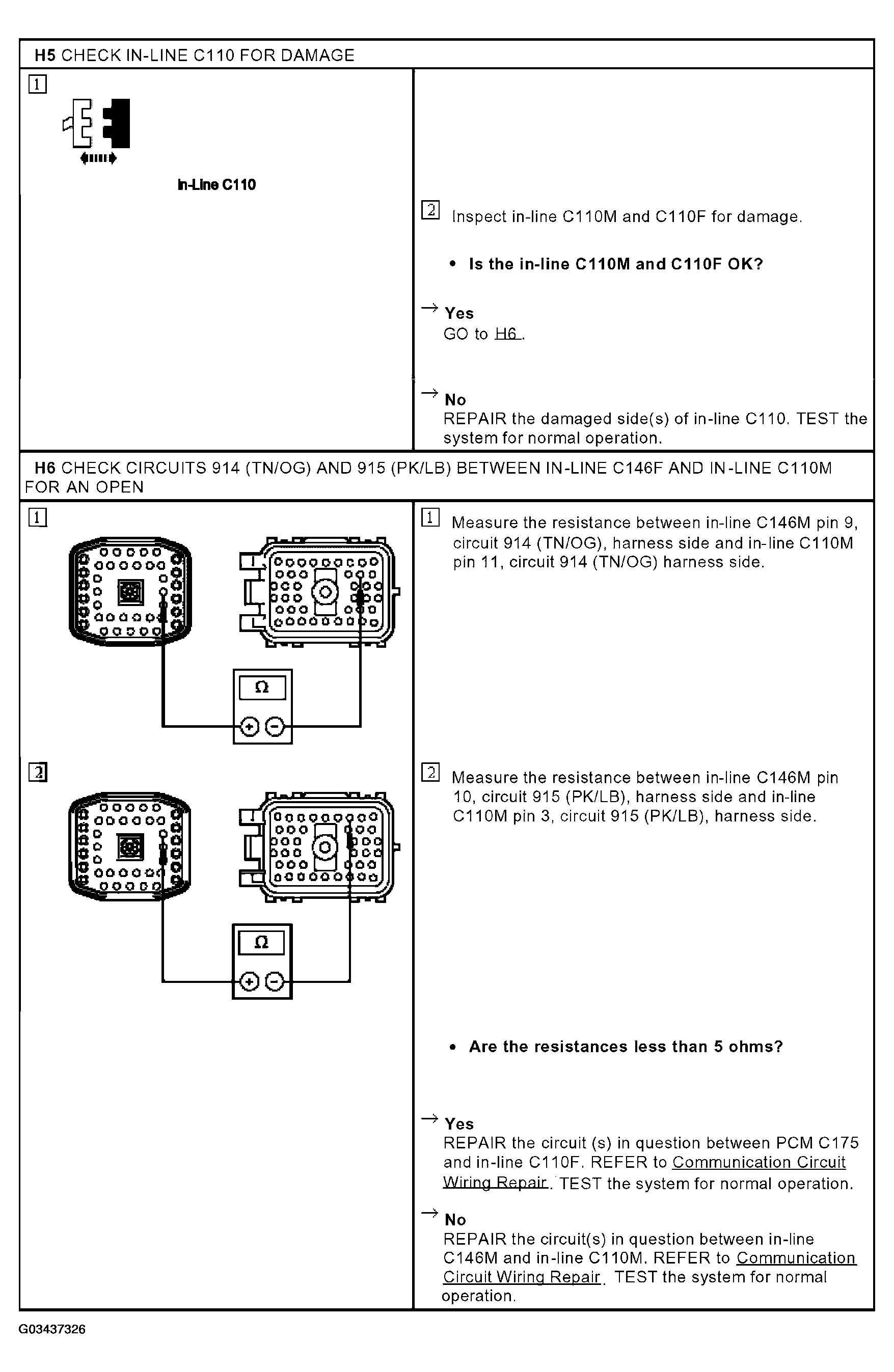

Fig 3: Pinpoint Test H: No Module / Network Communication - SCP Link (H5-H6)
Courtesy of FORD MOTOR CO.

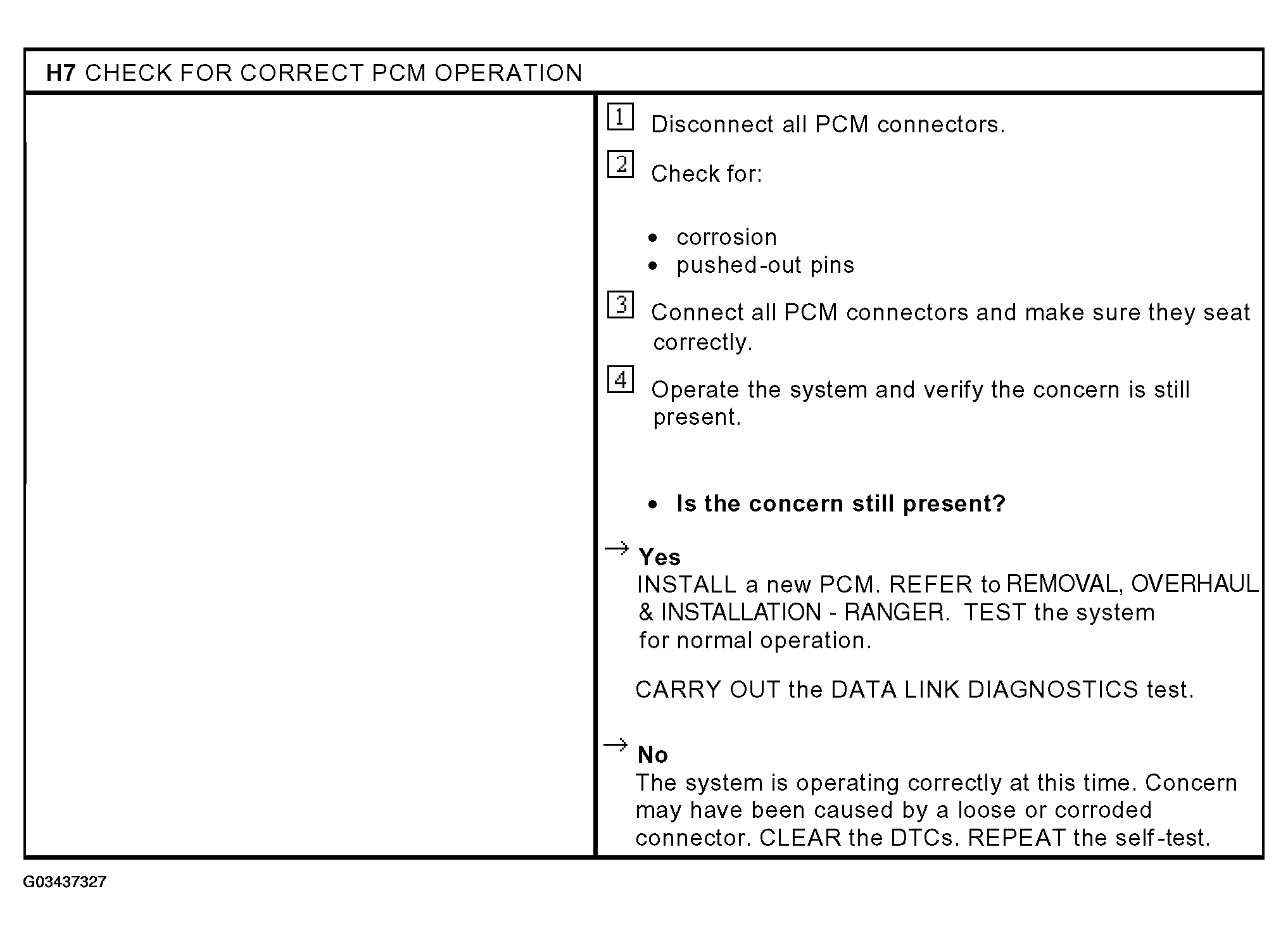

Fig 4: Pinpoint Test H: No Module / Network Communication - SCP Link (H7)
