Pinpoint Test B: The Pcm Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

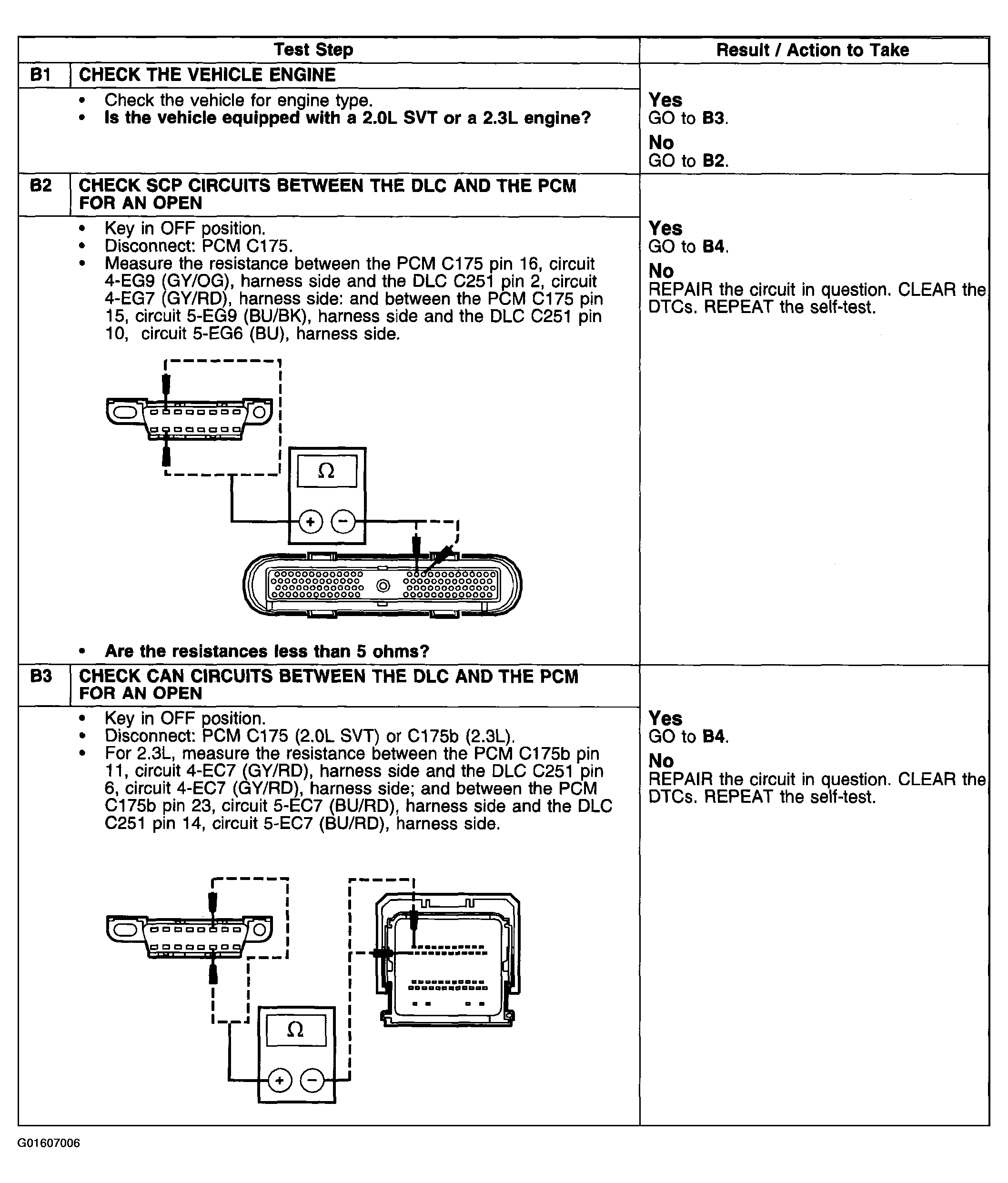

Fig 1: Pinpoint Test B: PCM Does Not Respond To Diagnostic Tool (B1-B3)
G01607006Courtesy of FORD MOTOR CO.

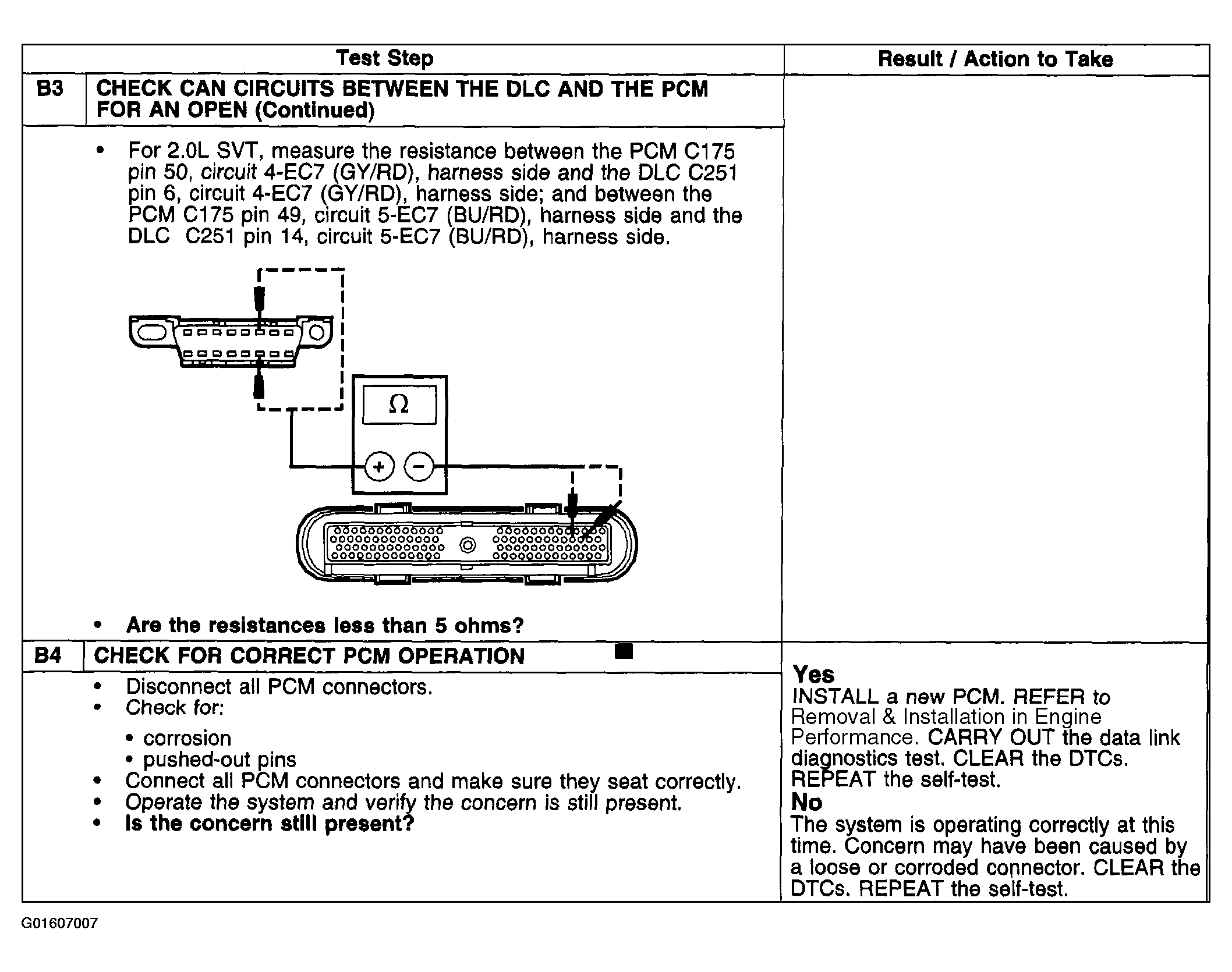

Fig 2: Pinpoint Test B: PCM Does Not Respond To Diagnostic Tool (B3 Cont.-B4)
G01607007Courtesy of FORD MOTOR CO.
