Pinpoint Test C: The Left Power Sliding Door Module Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

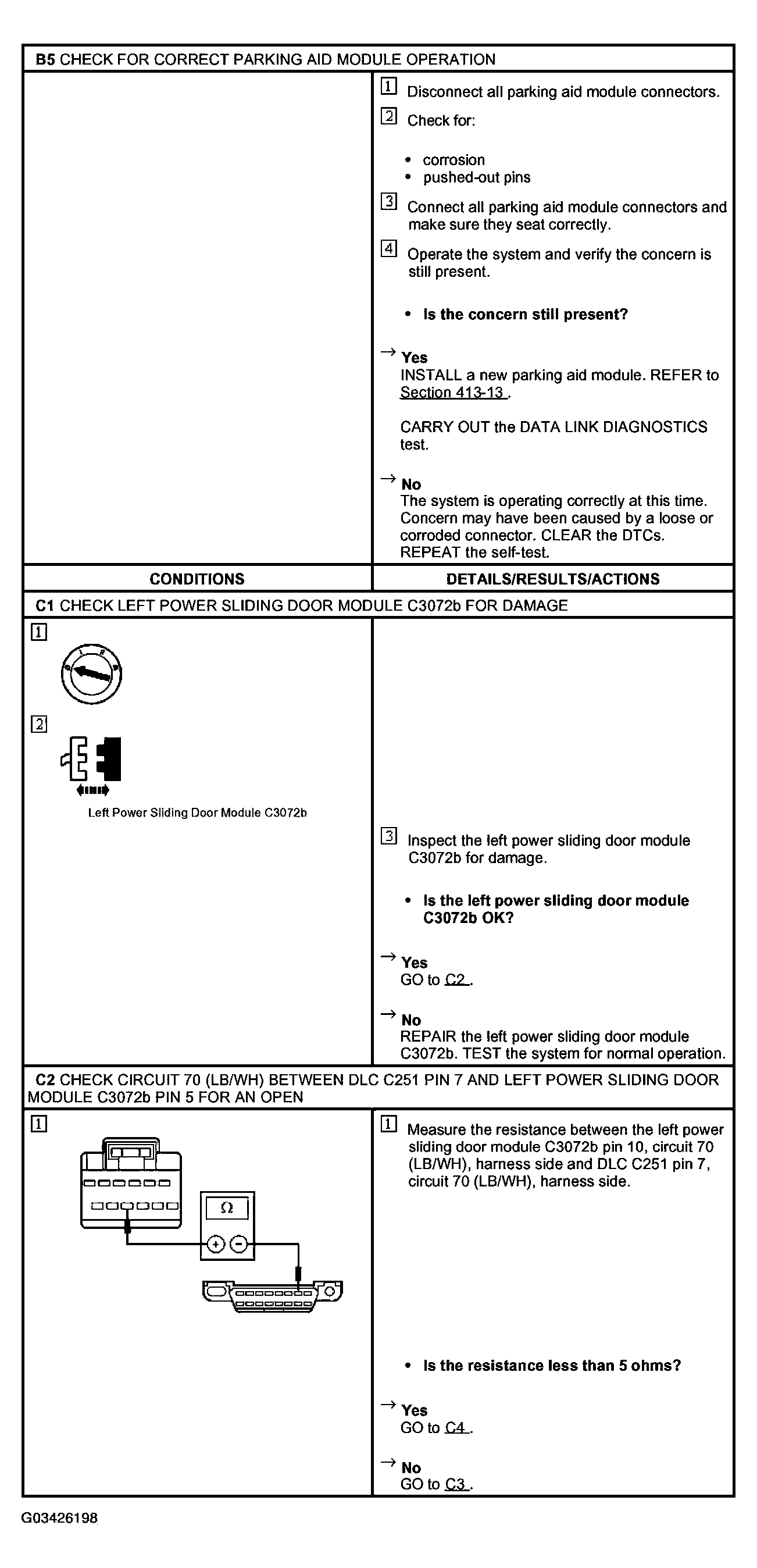

Fig 1: Pinpoint Test C Chart - Left Power Sliding Door Module Does Not Respond To Diagnostic Tool (C1 & C2)
Courtesy of FORD MOTOR CO.

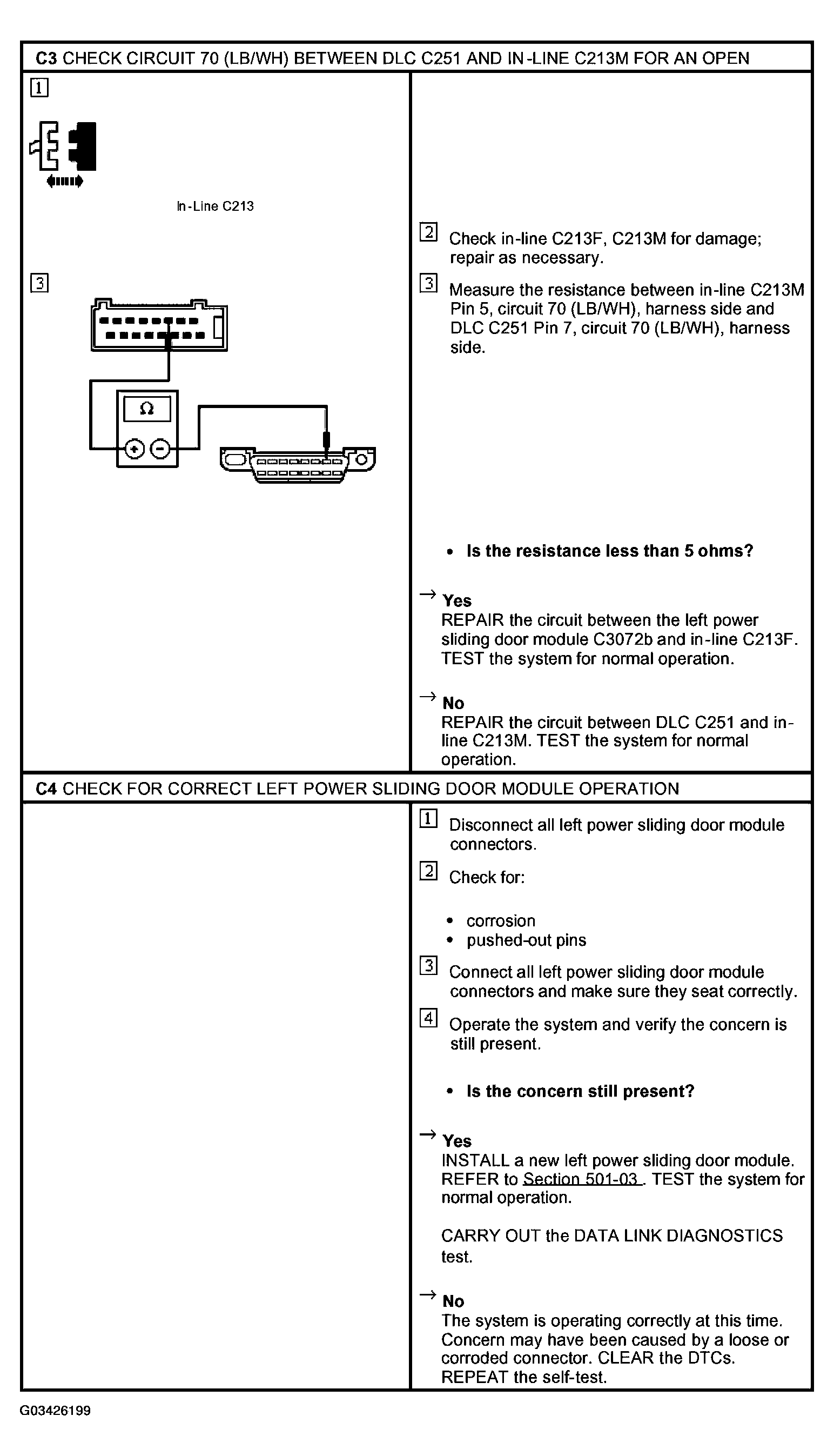

Fig 2: Pinpoint Test C Chart - Left Power Sliding Door Module Does Not Respond To Diagnostic Tool (C3 & C4)
