Pinpoint Test C: The Left Power Sliding Door Module Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

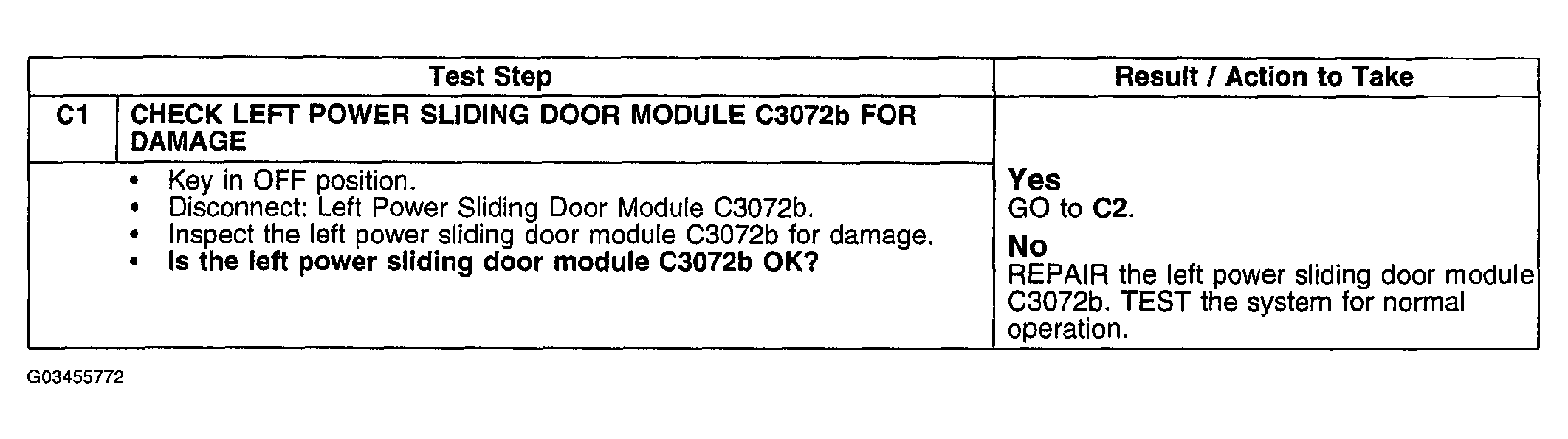

Fig 1: Pinpoint Test C: Left Power Sliding Door Module Does Not Respond To Diagnostic Tool (Step C1)
Courtesy of FORD MOTOR CO.

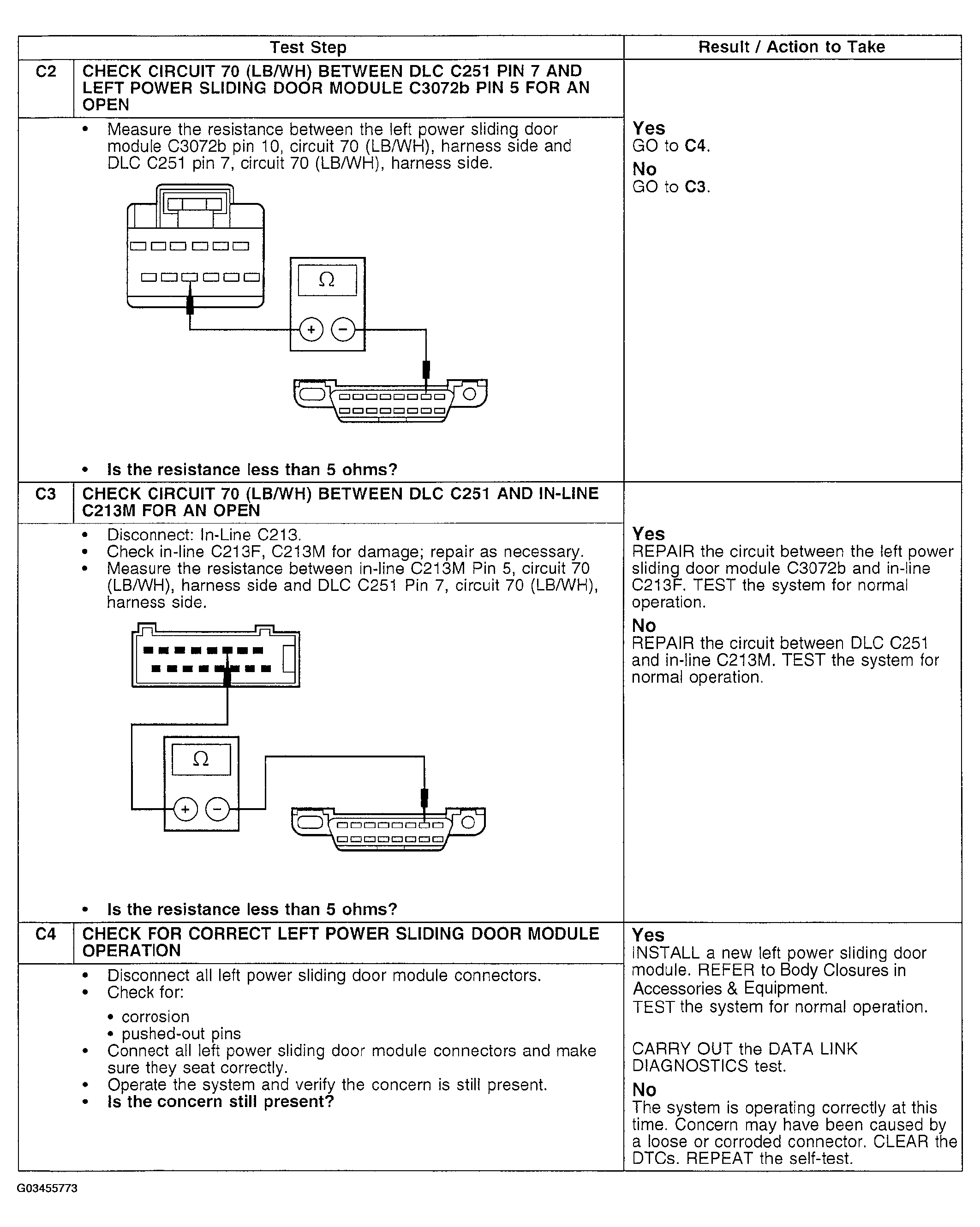

Fig 2: Pinpoint Test C: Left Power Sliding Door Module Does Not Respond To Diagnostic Tool (Step C2-C4)
