Pinpoint Test D: The Right Power Sliding Door Module Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

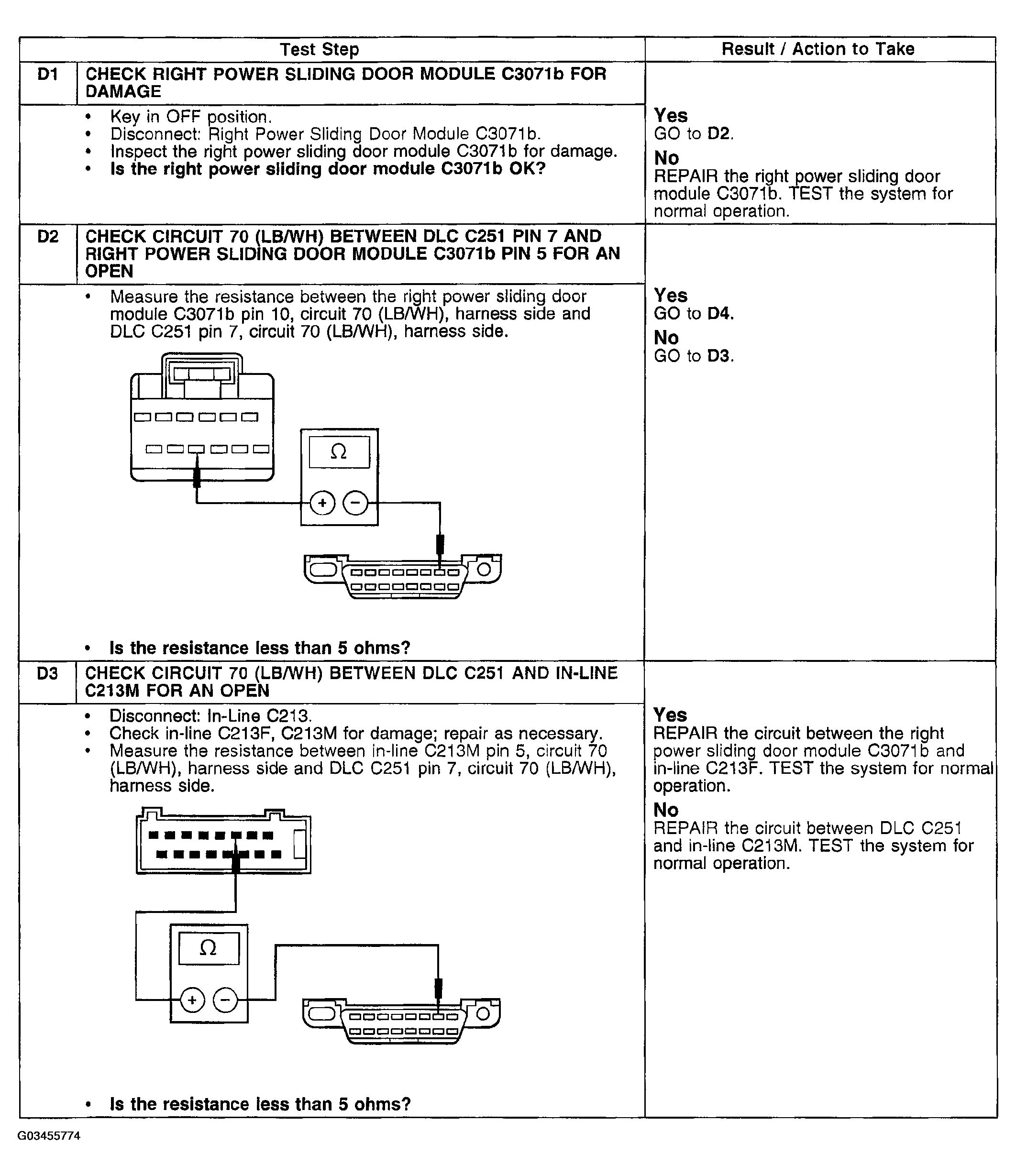

Fig 1: Pinpoint Test D: Right Power Sliding Door Module Does Not Respond To Diagnostic Tool (Step D1-D3)
Courtesy of FORD MOTOR CO.

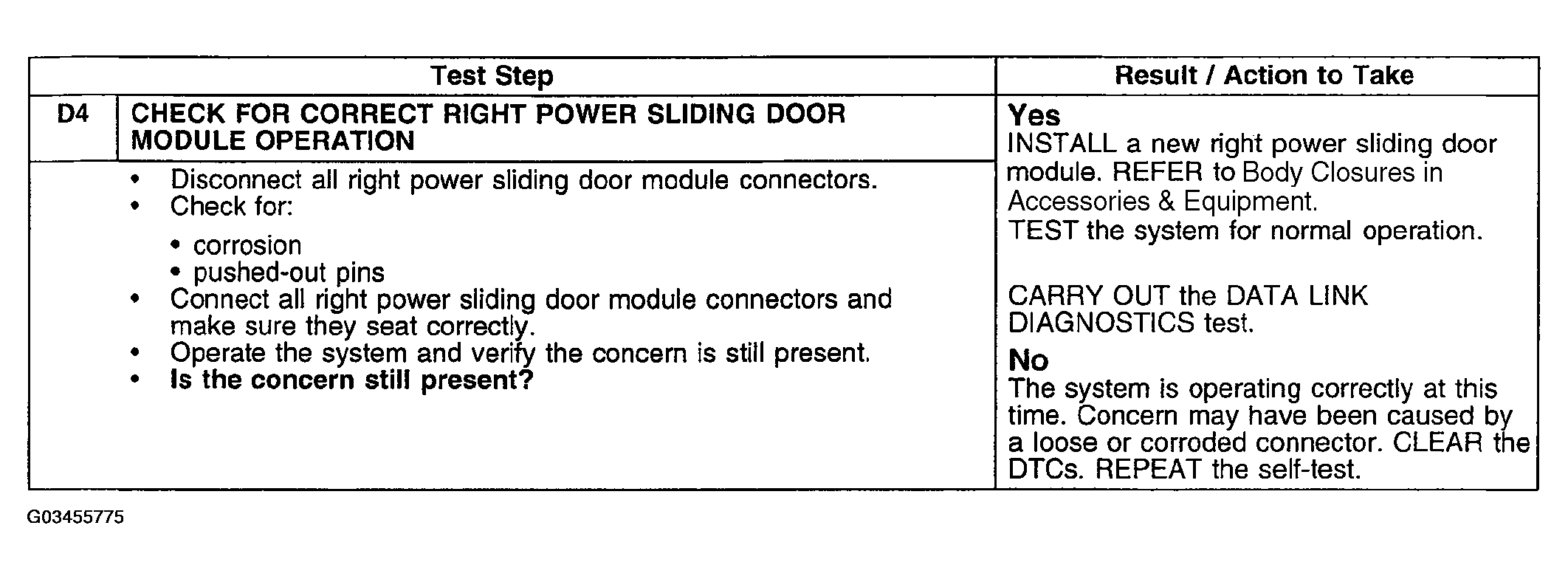

Fig 2: Pinpoint Test D: Right Power Sliding Door Module Does Not Respond To Diagnostic Tool (Step D4)
