Pinpoint Test L: No International Standards Organization (ISO) 9141 Module/Network Communication

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

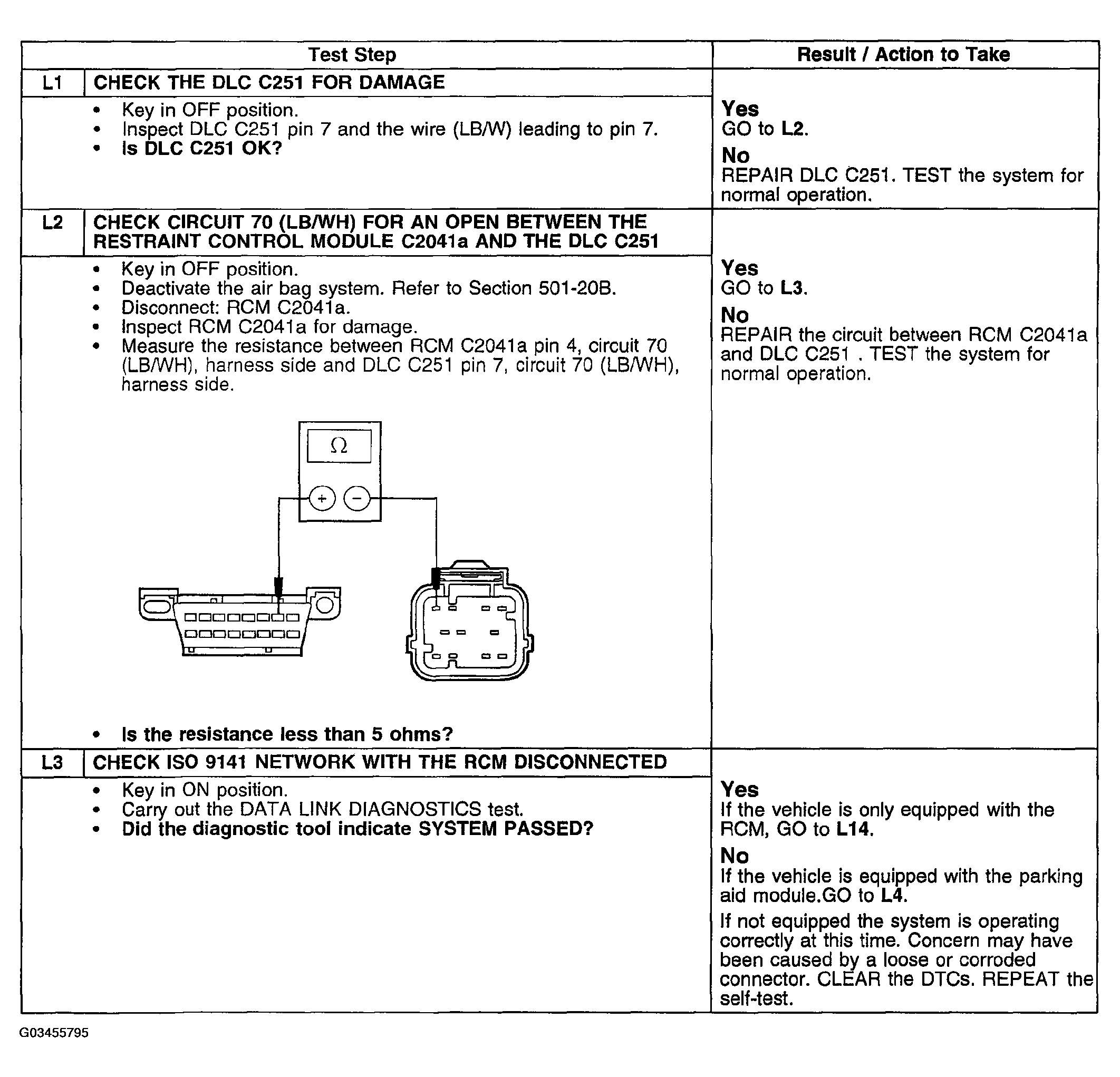

Fig 1: Pinpoint Test L: No International Standards Organization Module/Network Communication (Step L1- L3)

Courtesy of FORD MOTOR CO.

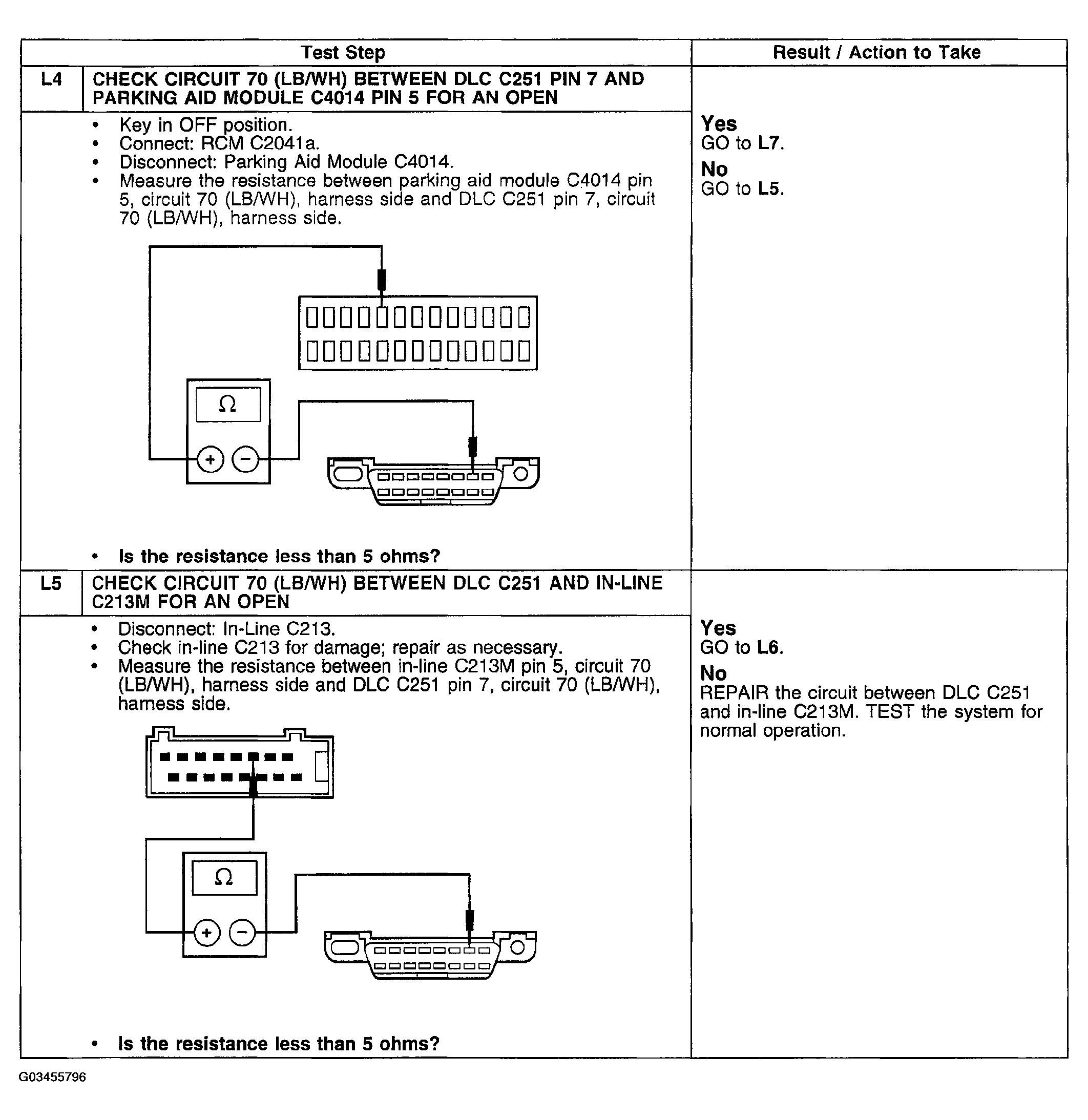

Fig 2: Pinpoint Test L: No International Standards Organization Module/Network Communication (Step L4- L5)

Courtesy of FORD MOTOR CO.

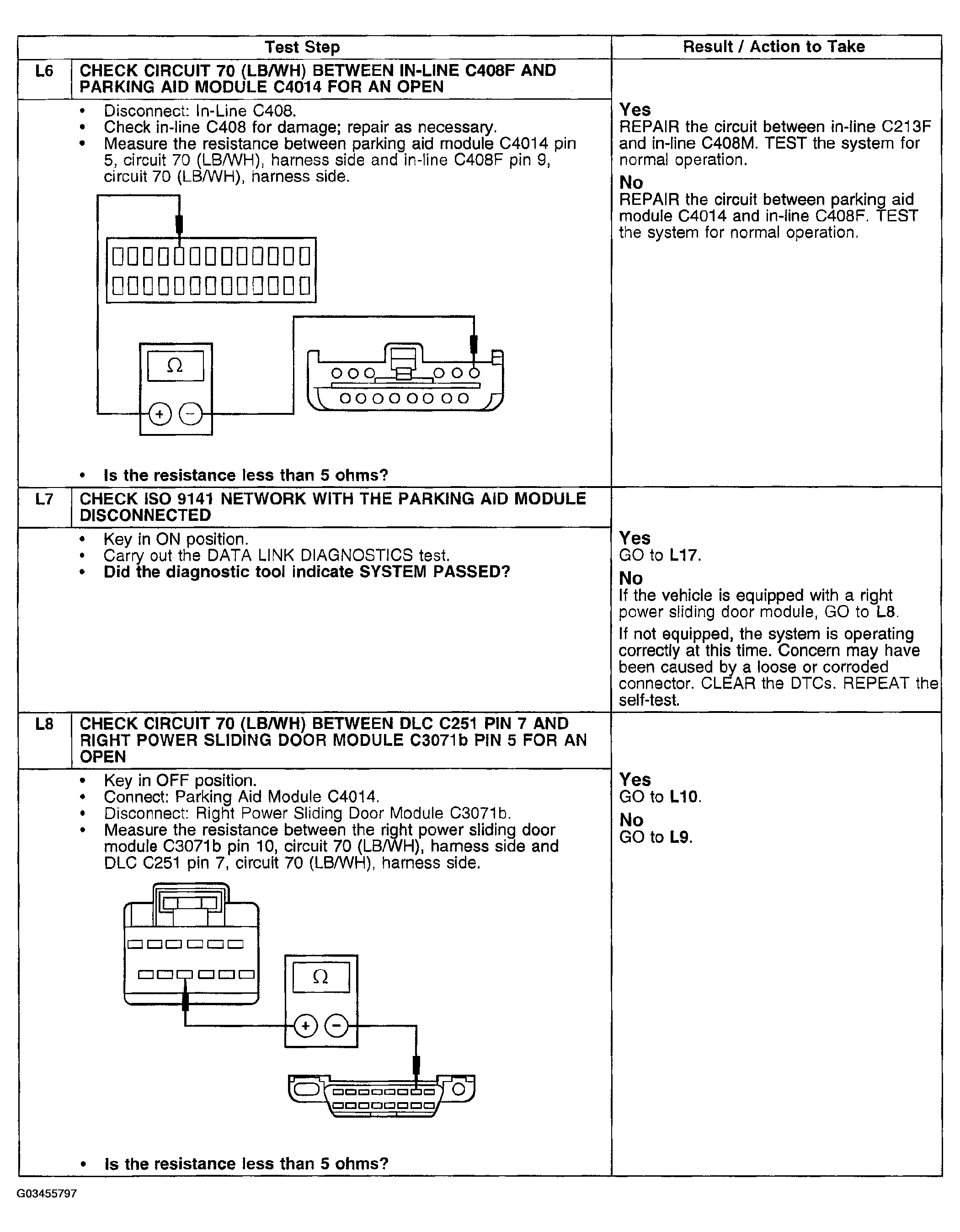

Fig 3: Pinpoint Test L: No International Standards Organization Module/Network Communication (Step L6- L8)

Courtesy of FORD MOTOR CO.

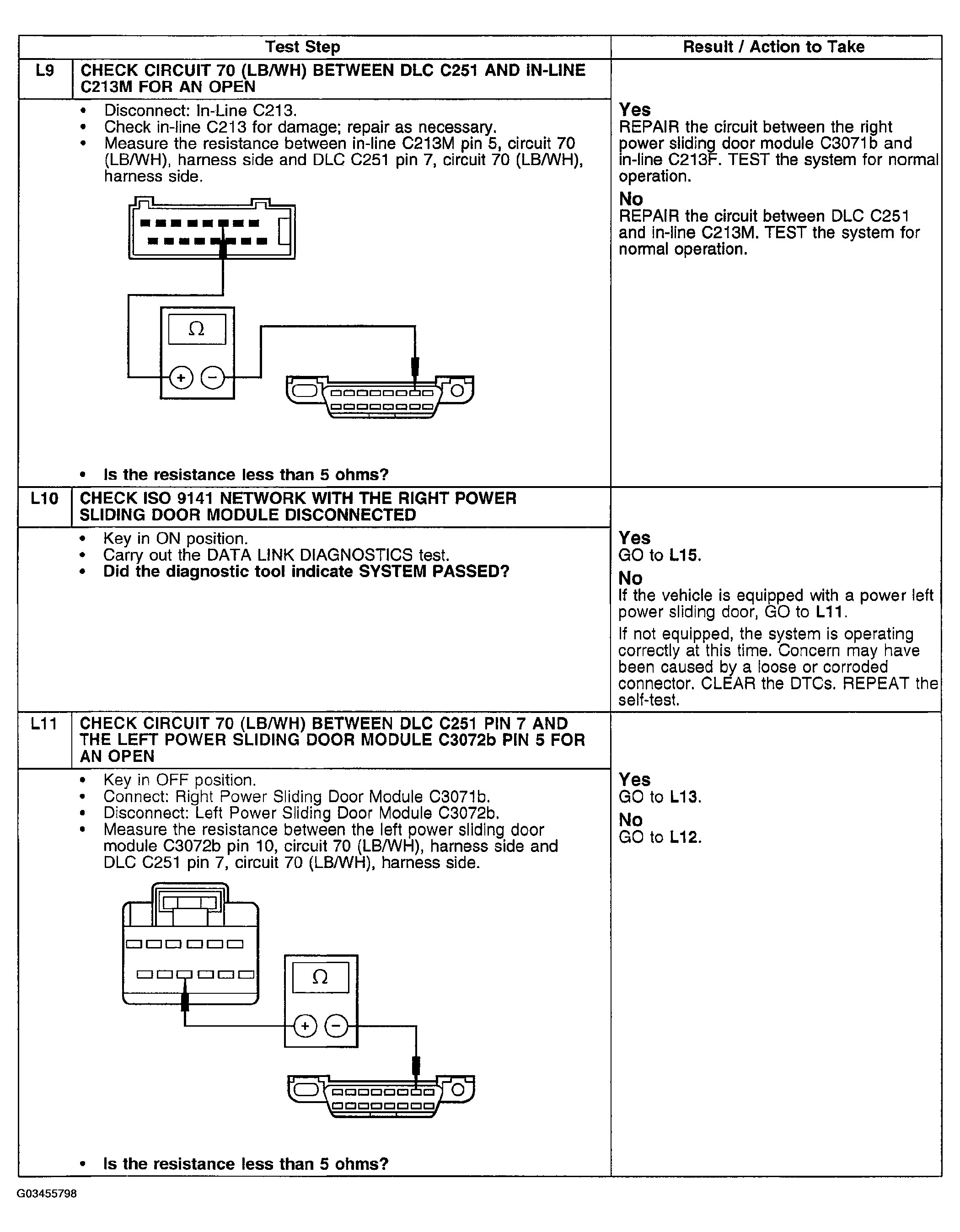

Fig 4: Pinpoint Test L: No International Standards Organization Module/Network Communication (Step L9- L11)

Courtesy of FORD MOTOR CO.

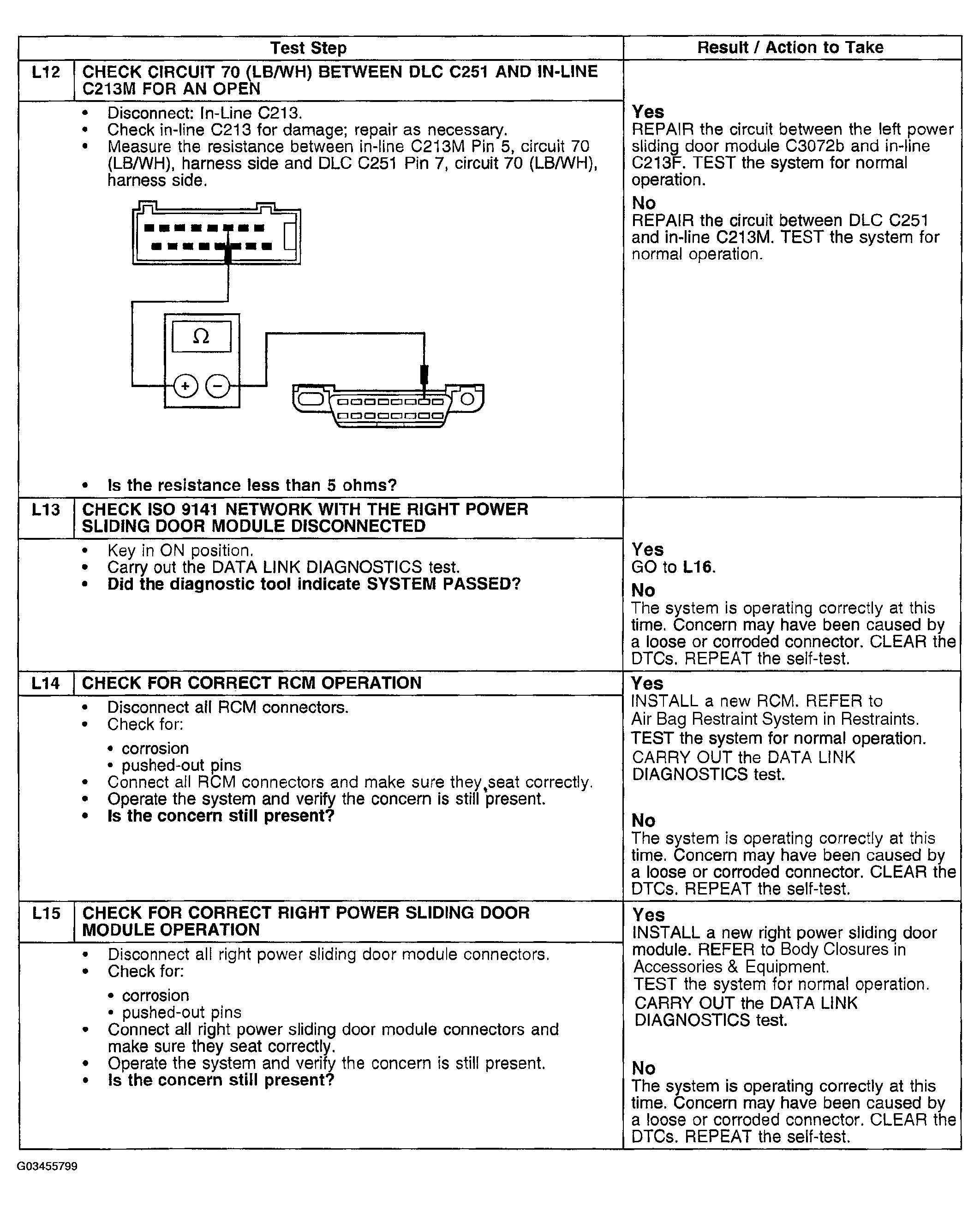

Fig 5: Pinpoint Test L: No International Standards Organization Module/Network Communication (Step L12- L15)

Courtesy of FORD MOTOR CO.

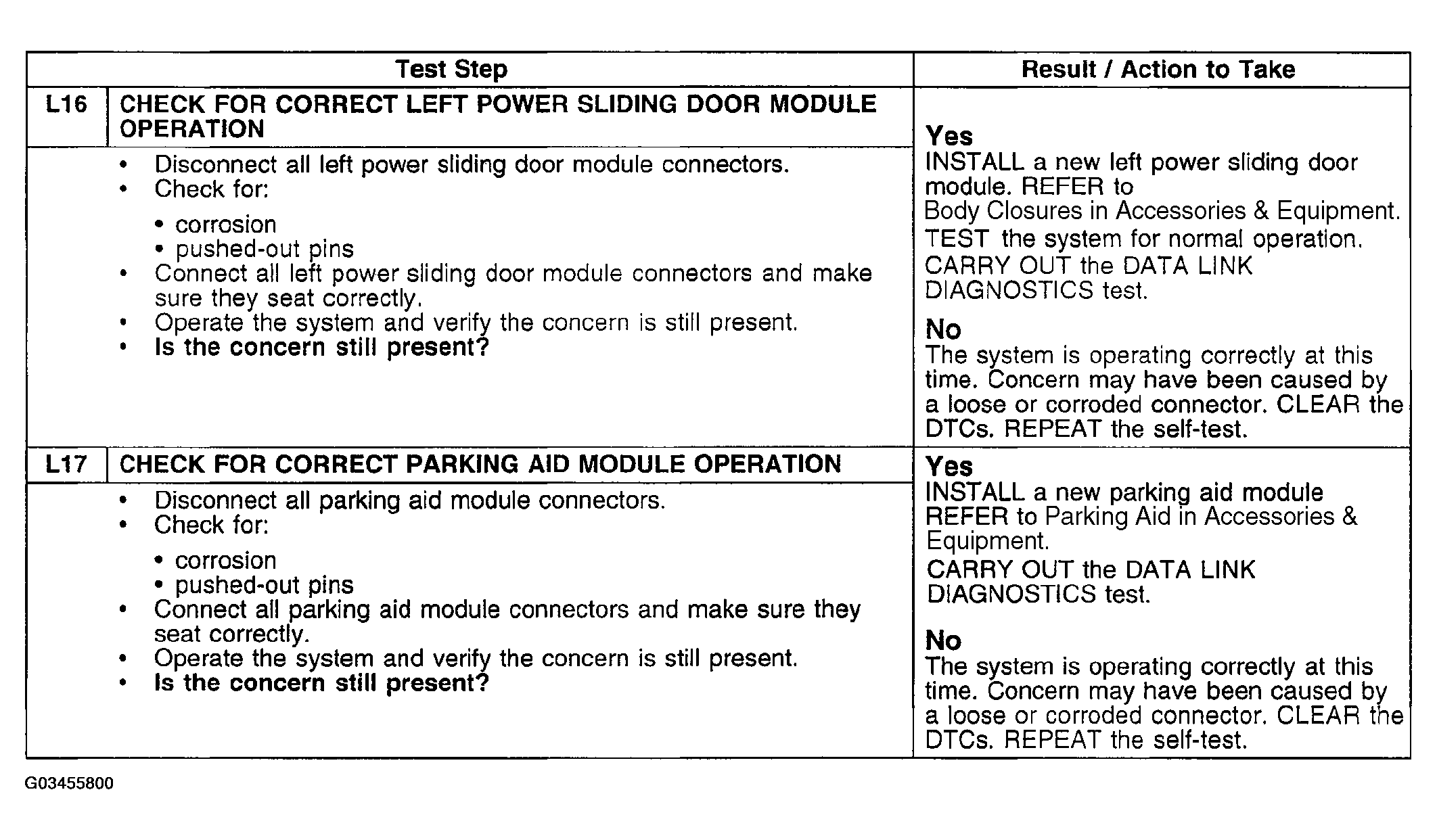

Fig 6: Pinpoint Test L: No International Standards Organization Module/Network Communication (Step L16- L17)

Courtesy of FORD MOTOR CO.
