Pinpoint Test N: No Module / Network Communication - No Power To The Diagnostic Tool
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

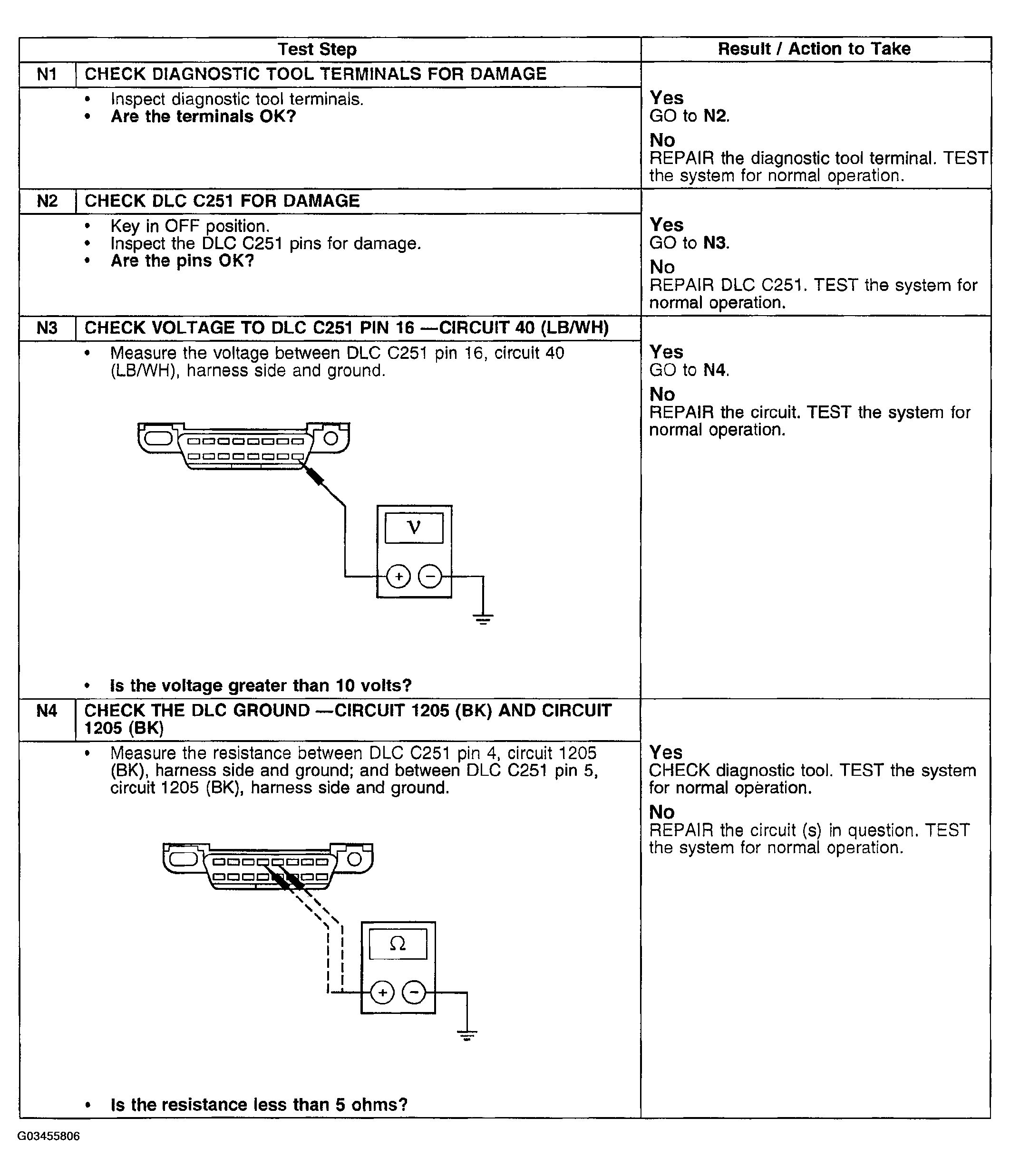

Fig 1: Pinpoint Test N: No Module / Network Communication No Power To Diagnostic Tool (Step N1-N4)
