Vacuum Control Motor-Panel/Defrost Door: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH instrument panel insulator. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the motor.
    1. Disconnect the vacuum line.
    2. Remove the screws.
    3. Unclip from the lever.

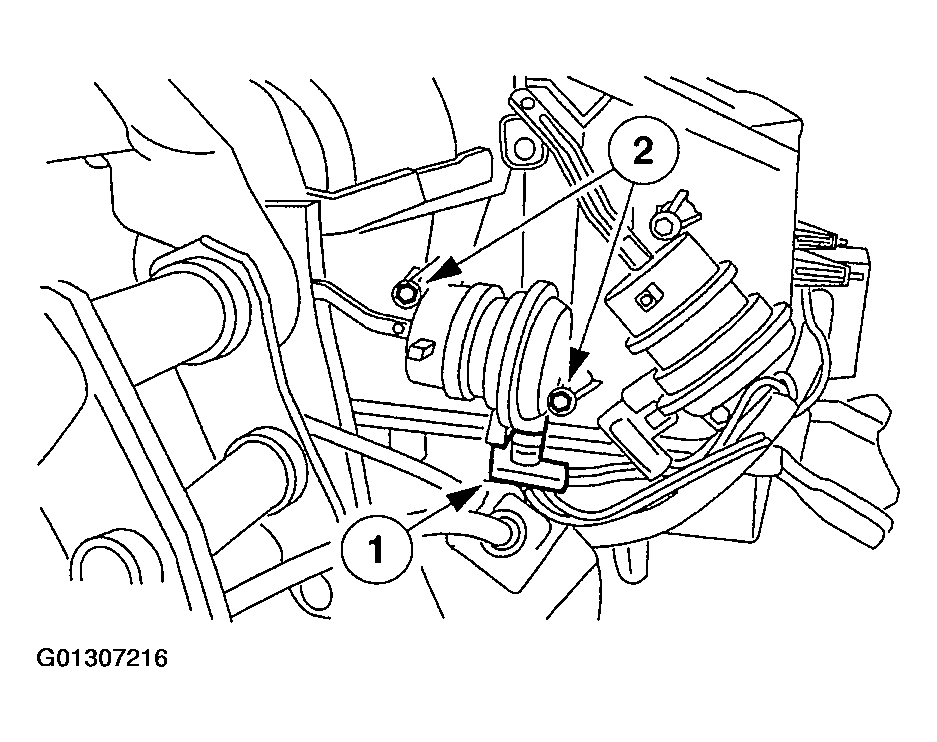

      Fig 1: Removing Motor Assembly
      G01307216Courtesy of FORD MOTOR CO.
