Pinpoint Test H: The Panic Feature Is Inoperative Using The Keyless Entry Remote Transmitter

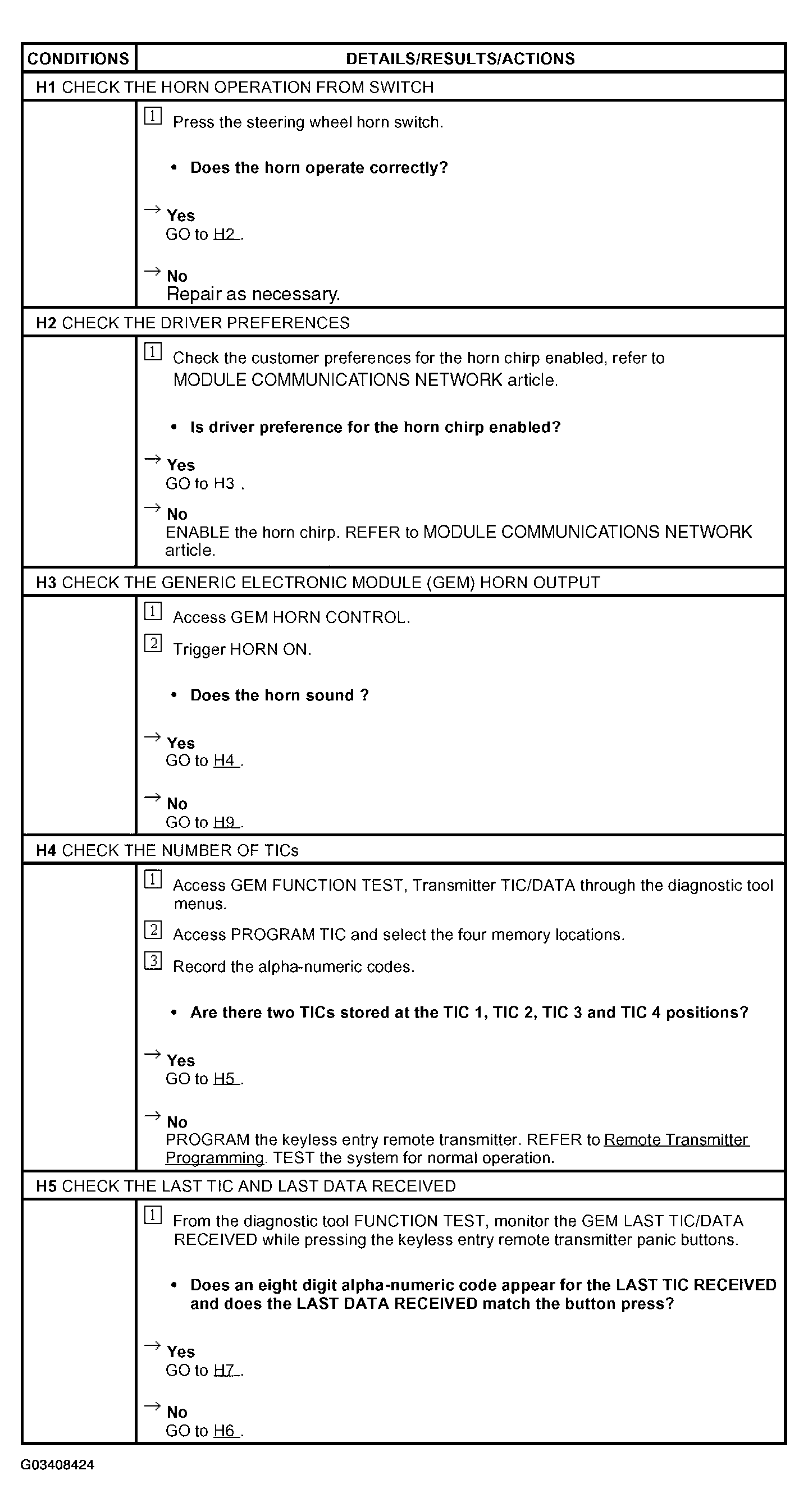

Fig 1: Pinpoint Test H: The Panic Feature Is Inoperative Using The Keyless Entry Remote Transmitter (Steps H1-H5)
G03408424Courtesy of FORD MOTOR CO.

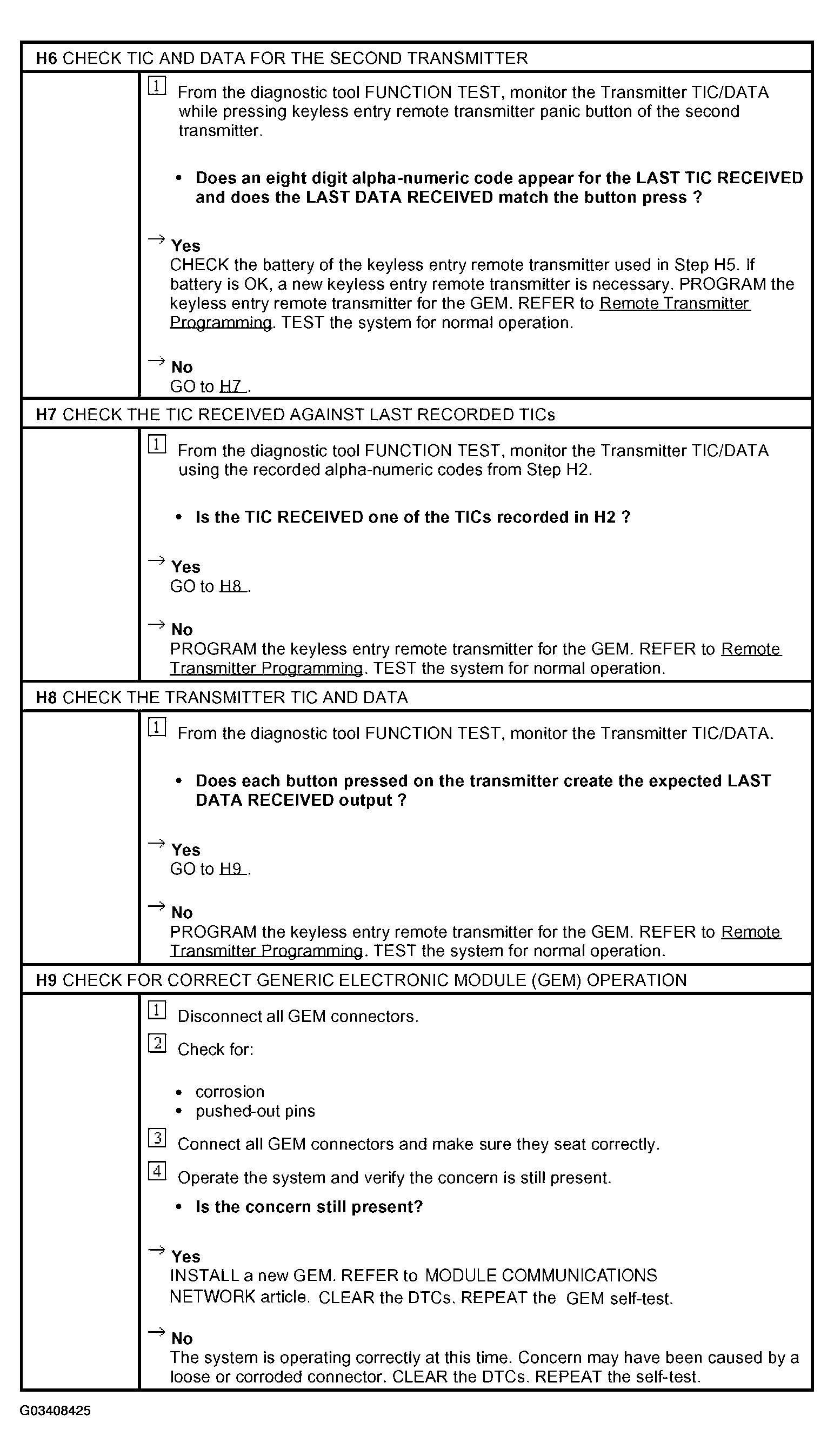

Fig 2: Pinpoint Test H: The Panic Feature Is Inoperative Using The Keyless Entry Remote Transmitter (Steps H6-H9)
G03408425Courtesy of FORD MOTOR CO.
