Component Testing: Relays

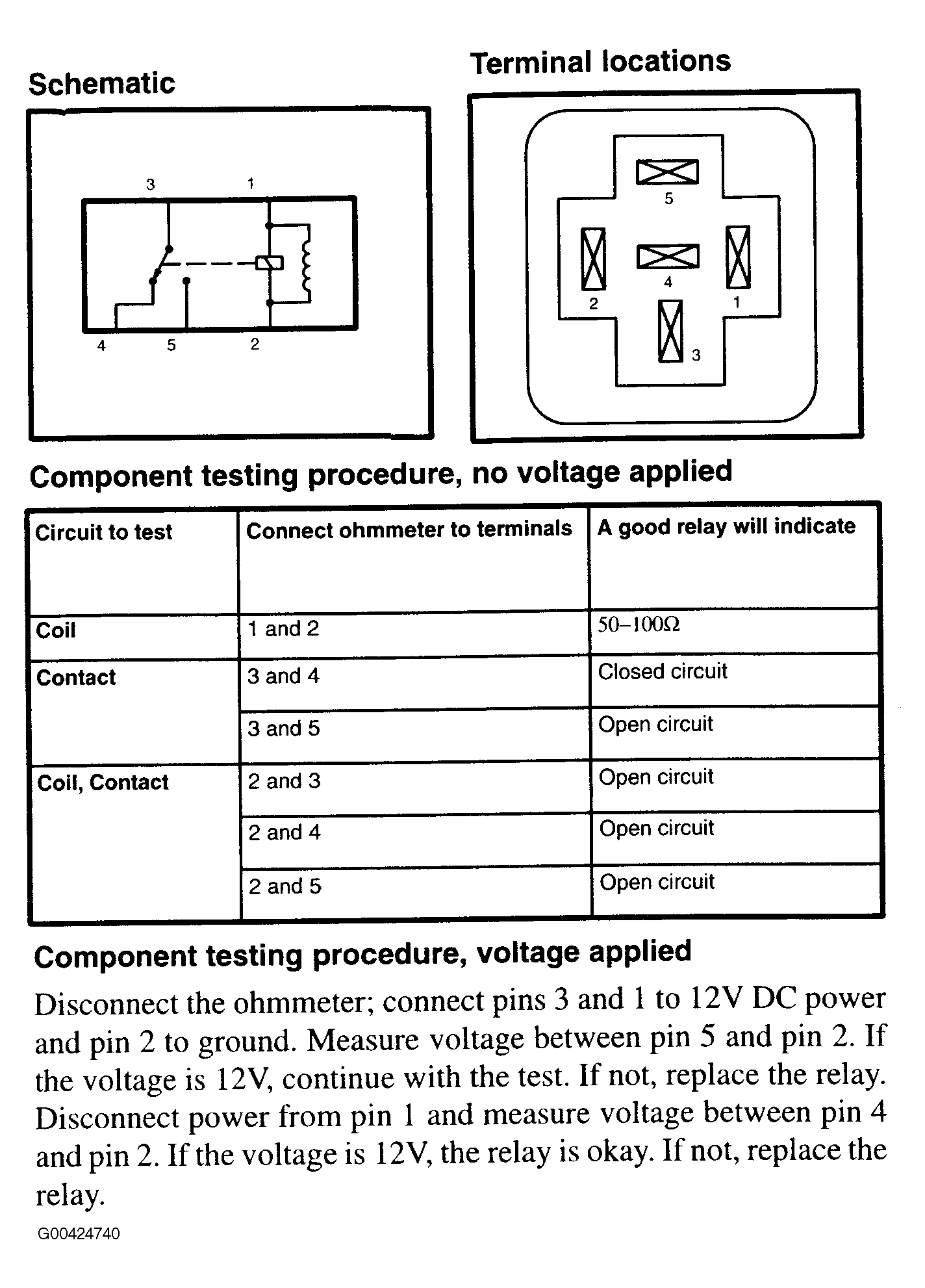

Fig 1: Testing Relay (1 Of 4)
G00424740Courtesy of FORD MOTOR CO.

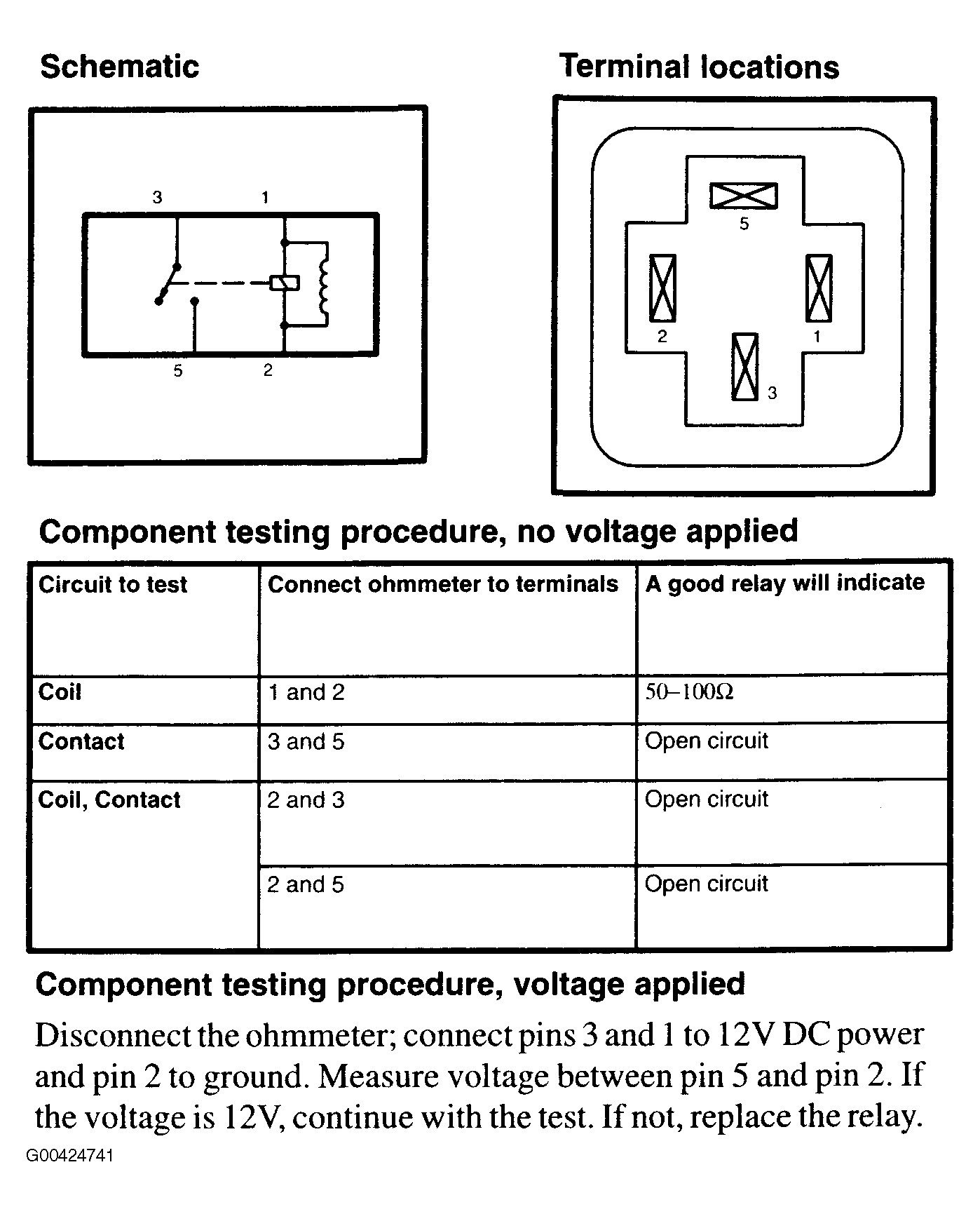

Fig 2: Testing Relay (2 Of 4)
G00424741Courtesy of FORD MOTOR CO.

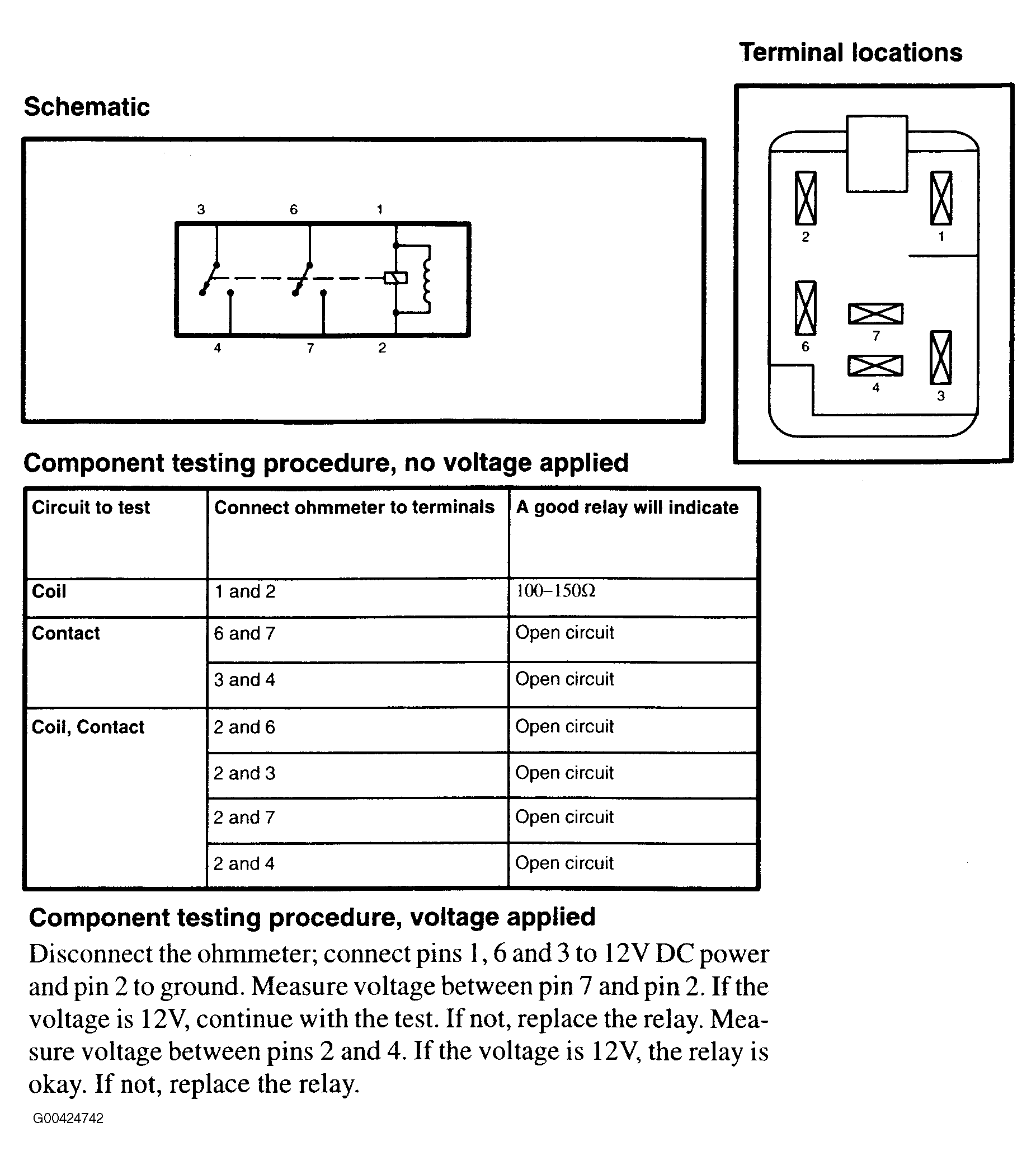

Fig 3: Testing Relay (3 Of 4)
G00424742Courtesy of FORD MOTOR CO.

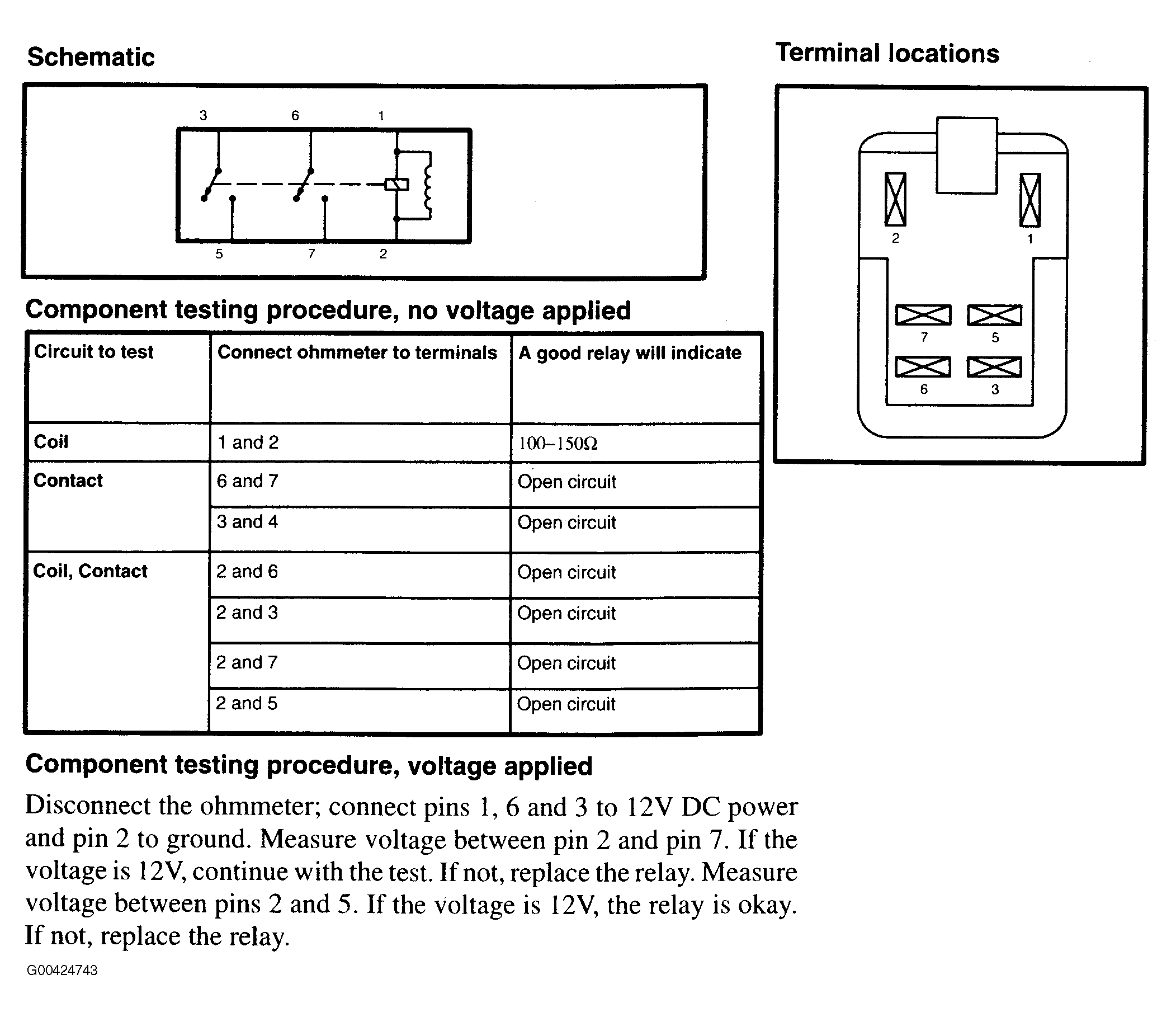

Fig 4: Testing Relay (4 Of 4)
G00424743Courtesy of FORD MOTOR CO.
