External Engine Components

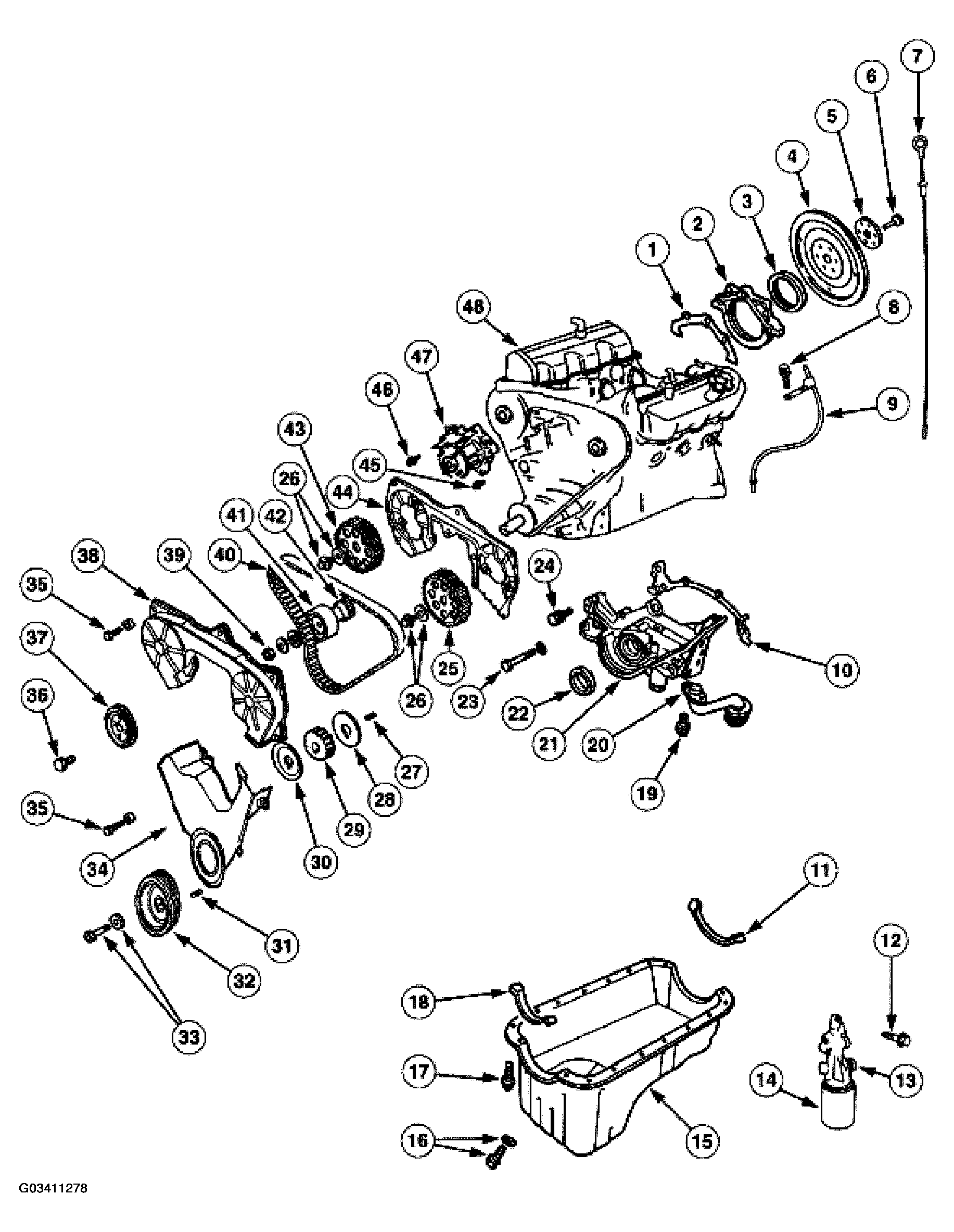

Fig 1: Identifying External Engine Components
G03411278Courtesy of FORD MOTOR CO.

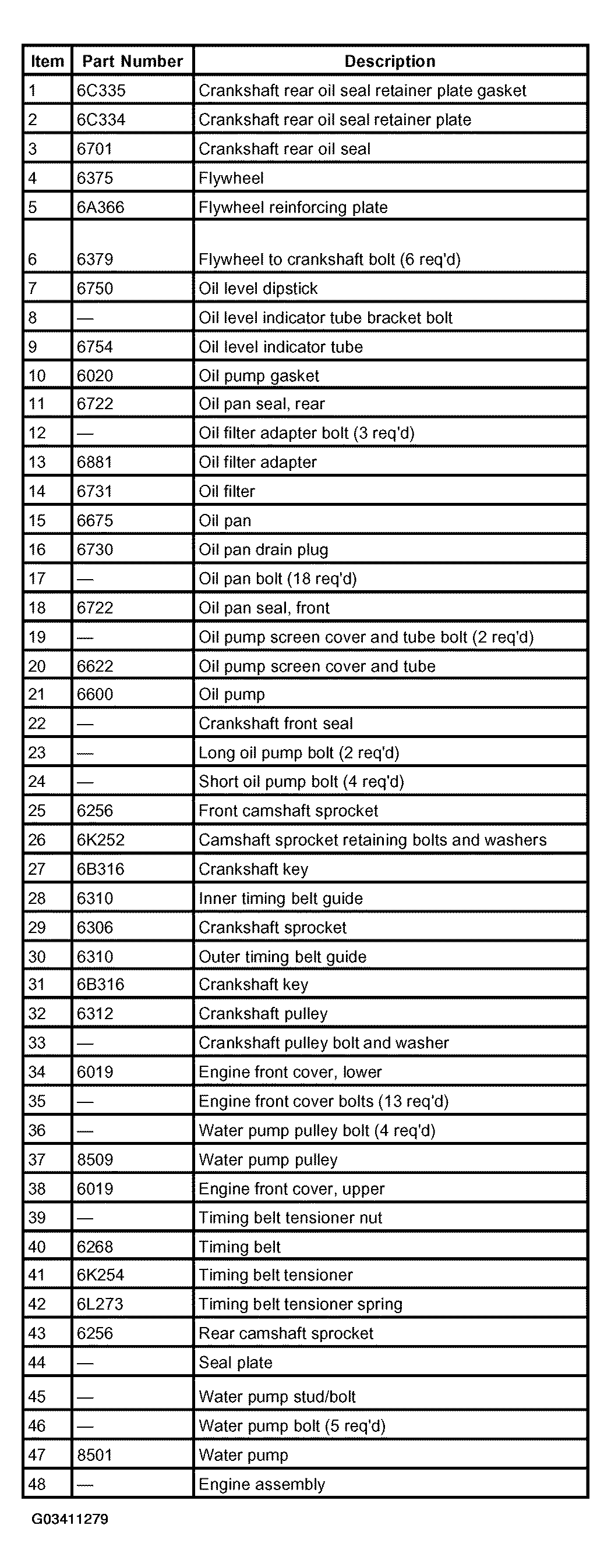

Fig 2: External Engine Components Part Number Table
G03411279Courtesy of FORD MOTOR CO.
