Internal Engine Components

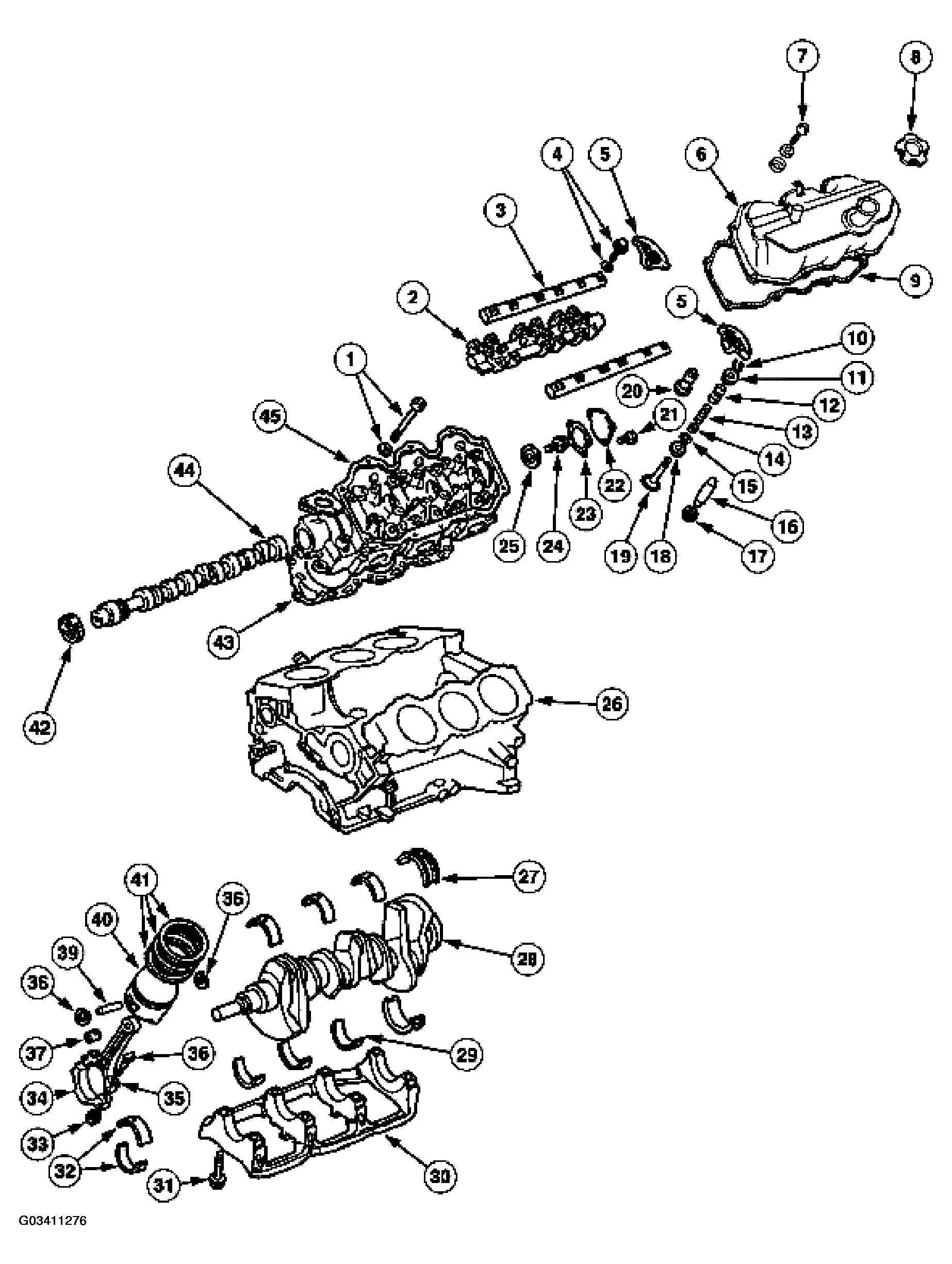

Fig 1: Identifying Internal Engine Components
G03411276Courtesy of FORD MOTOR CO.

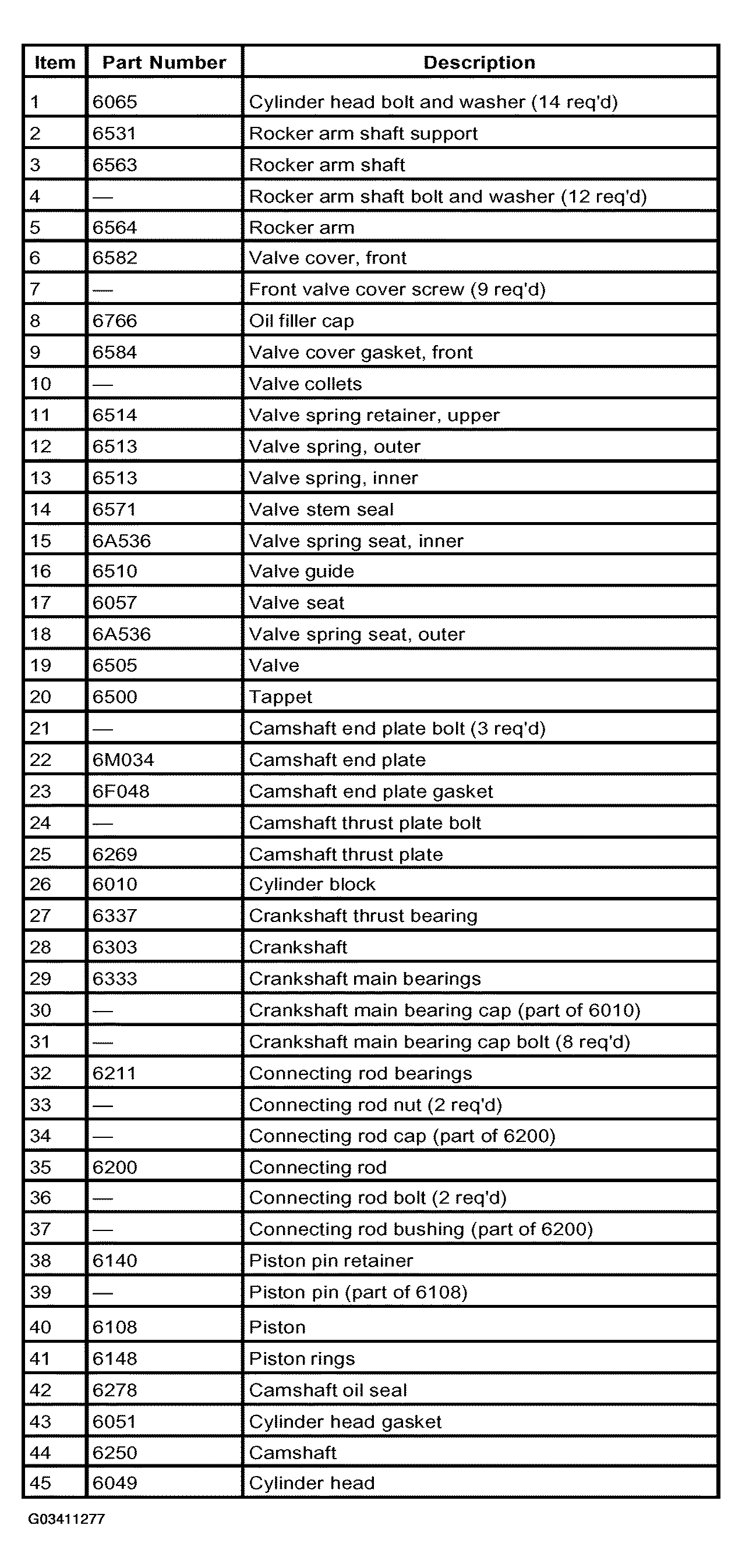

Fig 2: Internal Engine Components Part Number Table
G03411277Courtesy of FORD MOTOR CO.
