Cylinder Block: Disassembly

  1. Remove the threaded studs.

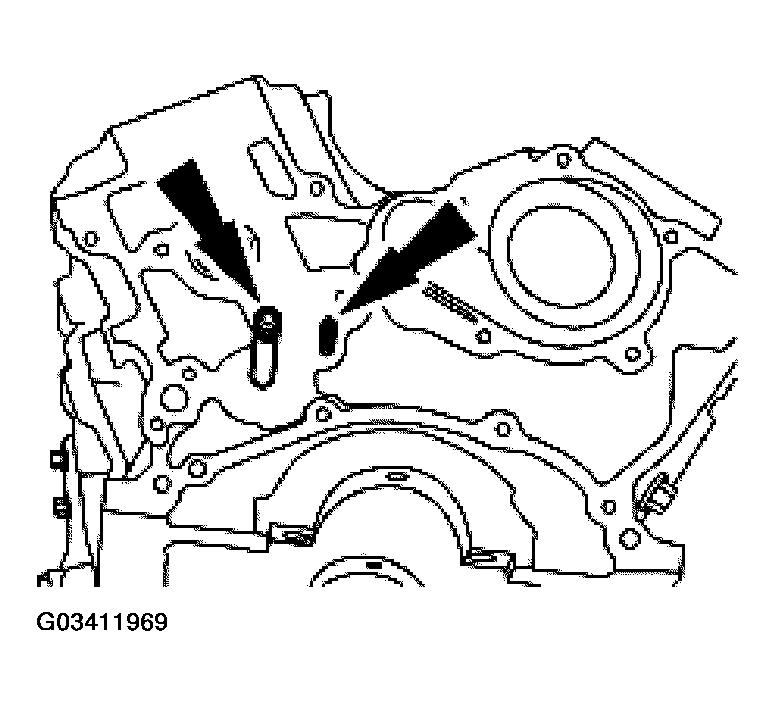

    Fig 1: Identifying Threaded Studs
    G03411969Courtesy of FORD MOTOR CO.
  2. Remove the engine block oil adapter cover and plugs.
    1. Remove the plugs.
    2. Remove the bolts.
    3. Remove the engine block oil adapter cover and discard the gasket.

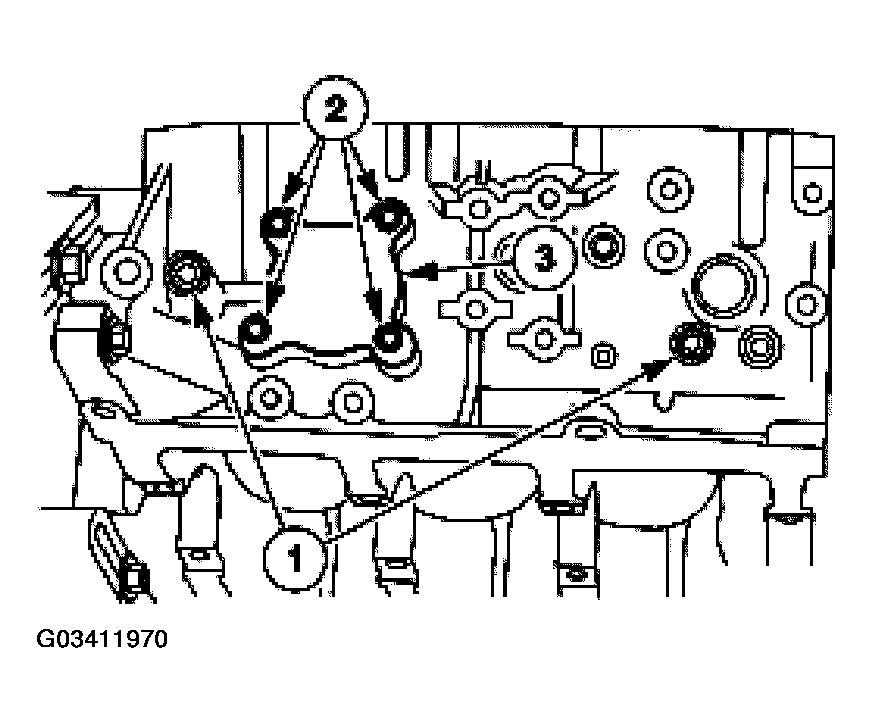

      Fig 2: Removing Engine Block Oil Adapter Cover And Plugs
      G03411970Courtesy of FORD MOTOR CO.
  3. Remove the plugs.

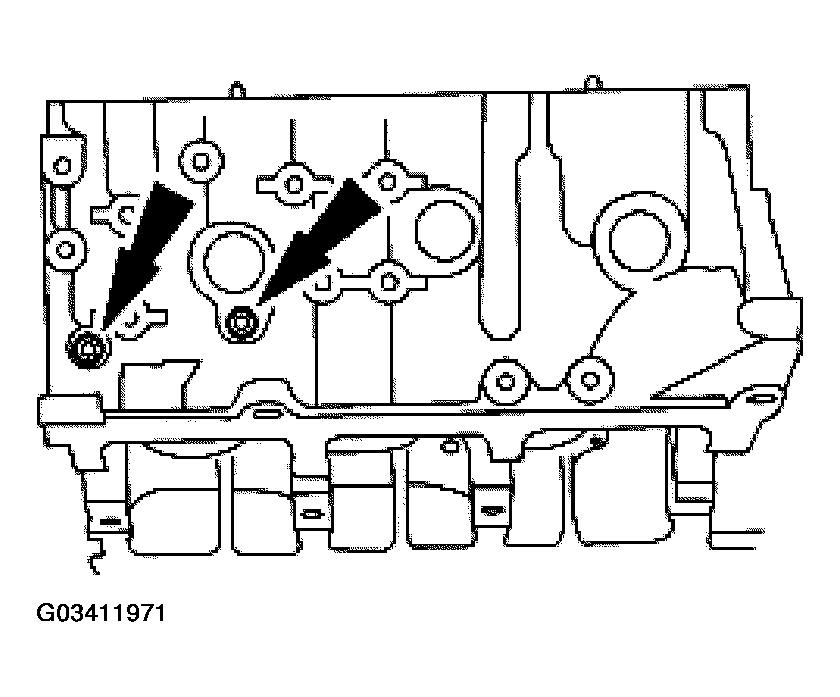

    Fig 3: Identifying Engine Block Plugs
    G03411971Courtesy of FORD MOTOR CO.
