In-Vehicle Repair: Flywheel: Installation

  1. Install the flywheel.
    1. Position the flywheel and reinforcing plate.
    2. Apply Threadlock and Sealer EOAZ-19554-AA or equivalent meeting Ford specification WSK-M2G351-A5 to the threads of the flywheel bolts and install the bolts.

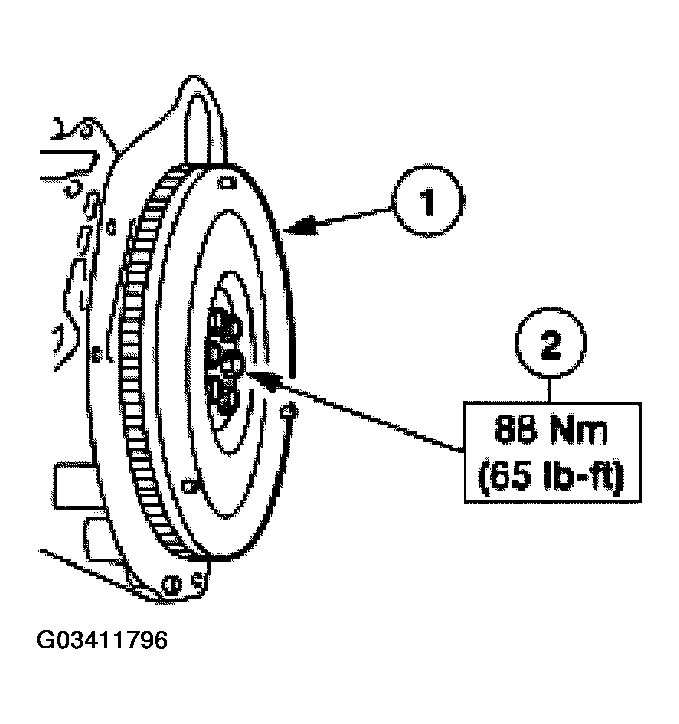

      Fig 1: Installing Flywheel
      G03411796Courtesy of FORD MOTOR CO.
  2. Install the transaxle. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
