Valve Spring: Installation

  1. Position the valve spring retainer.
    1. Position the valve springs.
    2. Position the valve spring retainer.

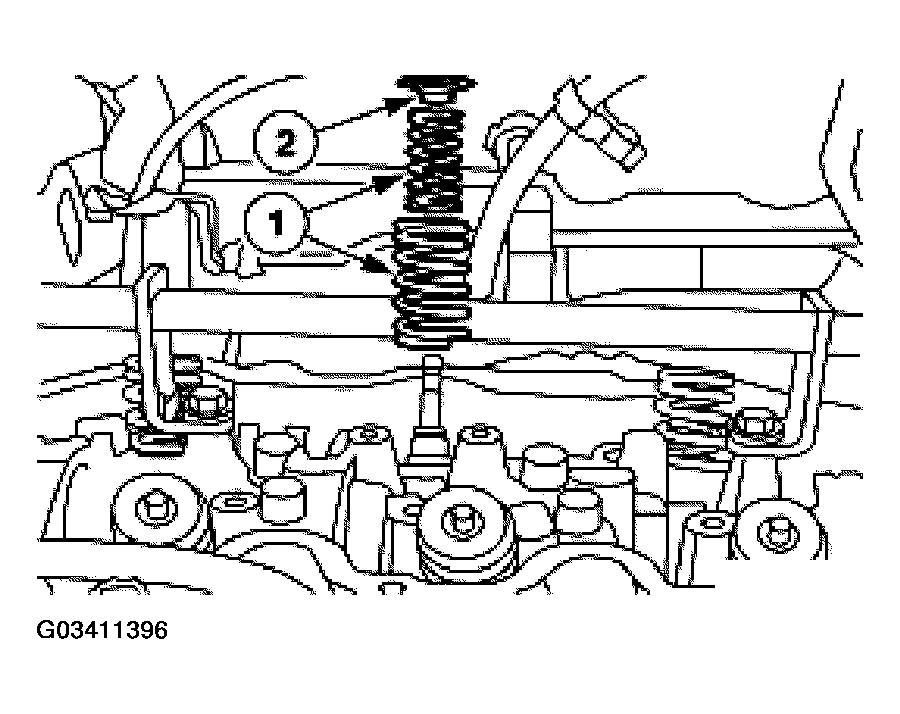

      Fig 1: Positioning Valve Spring Retainer
      G03411396Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the valve collects.
    1. Compress the valve spring.
    2. Install the valve collects.

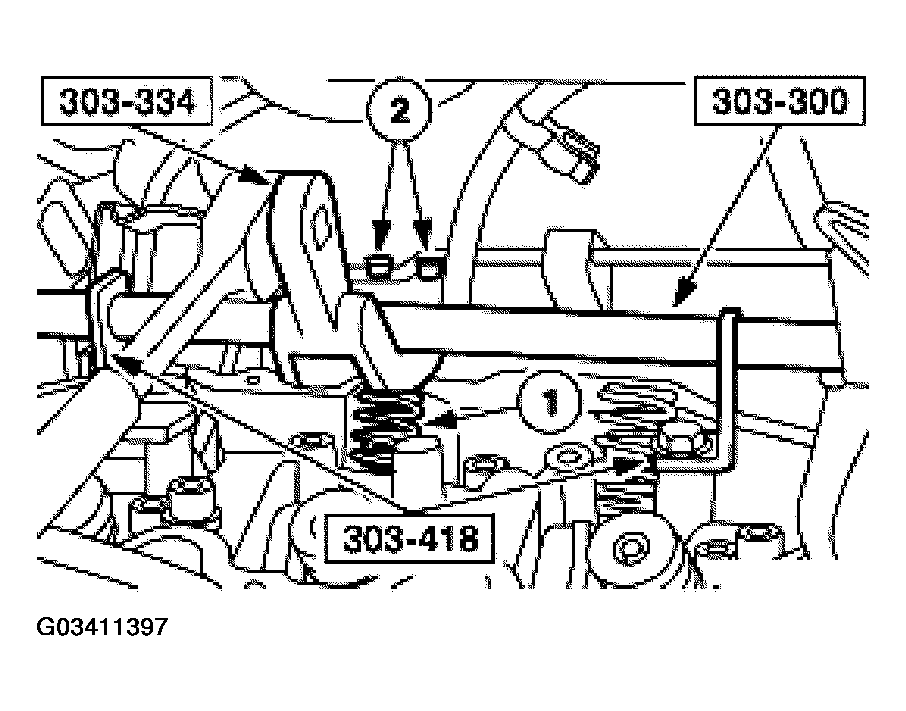

      Fig 2: Installing Valve Collects
      G03411397Courtesy of FORD MOTOR CO.
  3. Install the removed spark plug.
  4. Install the removed tappets. For additional information, refer to VALVE TAPPET .
