Valve - Spring Installed Length

  1. Measure the installed length of each valve spring.
    • Verify that the length is within specification.

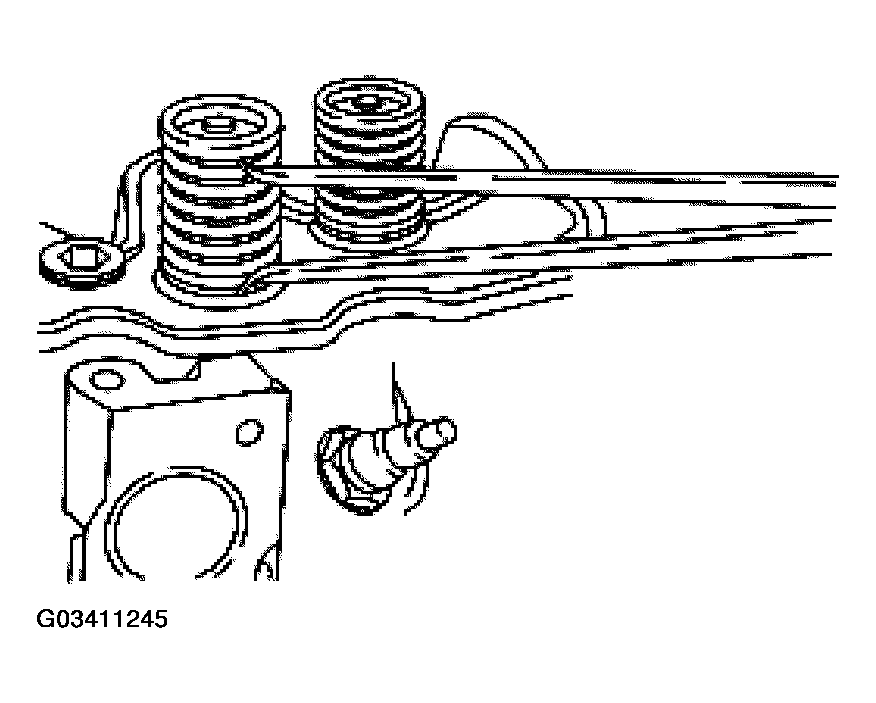

      Fig 1: Measuring Installed Length Of Each Valve Spring
      G03411245Courtesy of FORD MOTOR CO.
