Audio Unit Connector End View - C290A

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

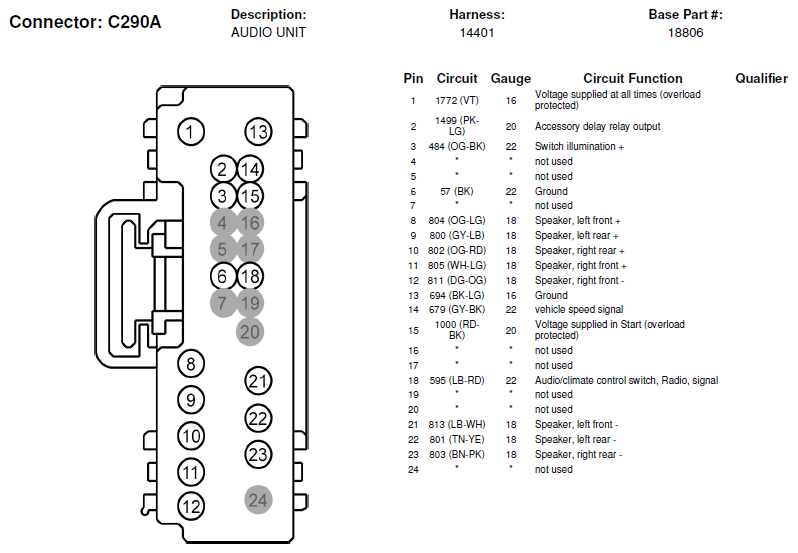

Fig 1: Audio Unit Connector End View (C290A)
G06414171Courtesy of FORD MOTOR CO.
