Pinpoint Test B: The Module Does Not Respond To The Diagnostic Tool - Powertrain Control Module (Pcm)

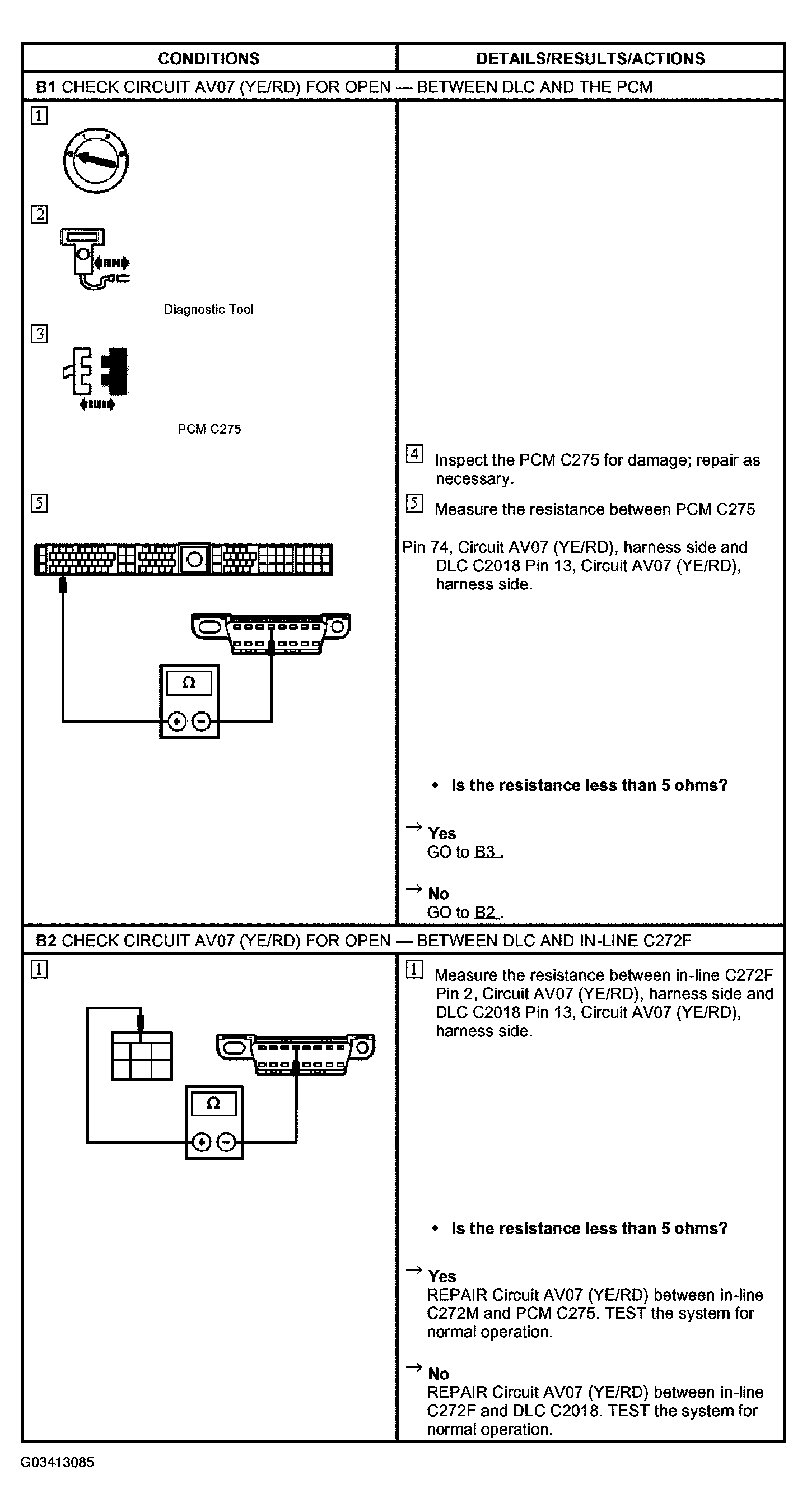

Fig 1: Pinpoint Test B: Module Does Not Respond To Diagnostic Tool - Powertrain Control Module (B1-B2)

Courtesy of FORD MOTOR CO.

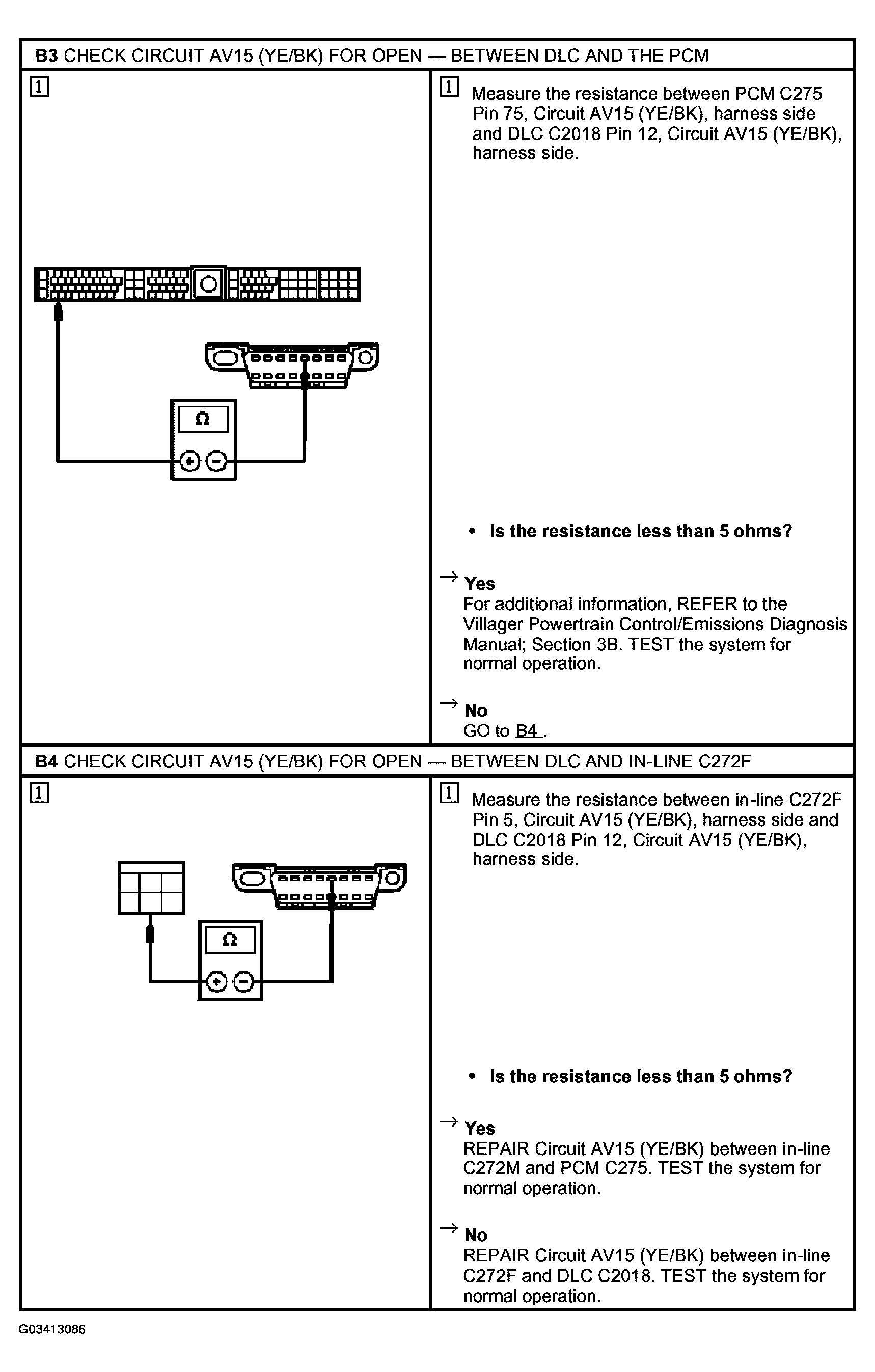

Fig 2: Pinpoint Test B: Module Does Not Respond To Diagnostic Tool - Powertrain Control Module (B3-B4)

Courtesy of FORD MOTOR CO.
