Pinpoint Test C: The Module Does Not Respond To The Diagnostic Tool - Transmission Control Module (TCM)

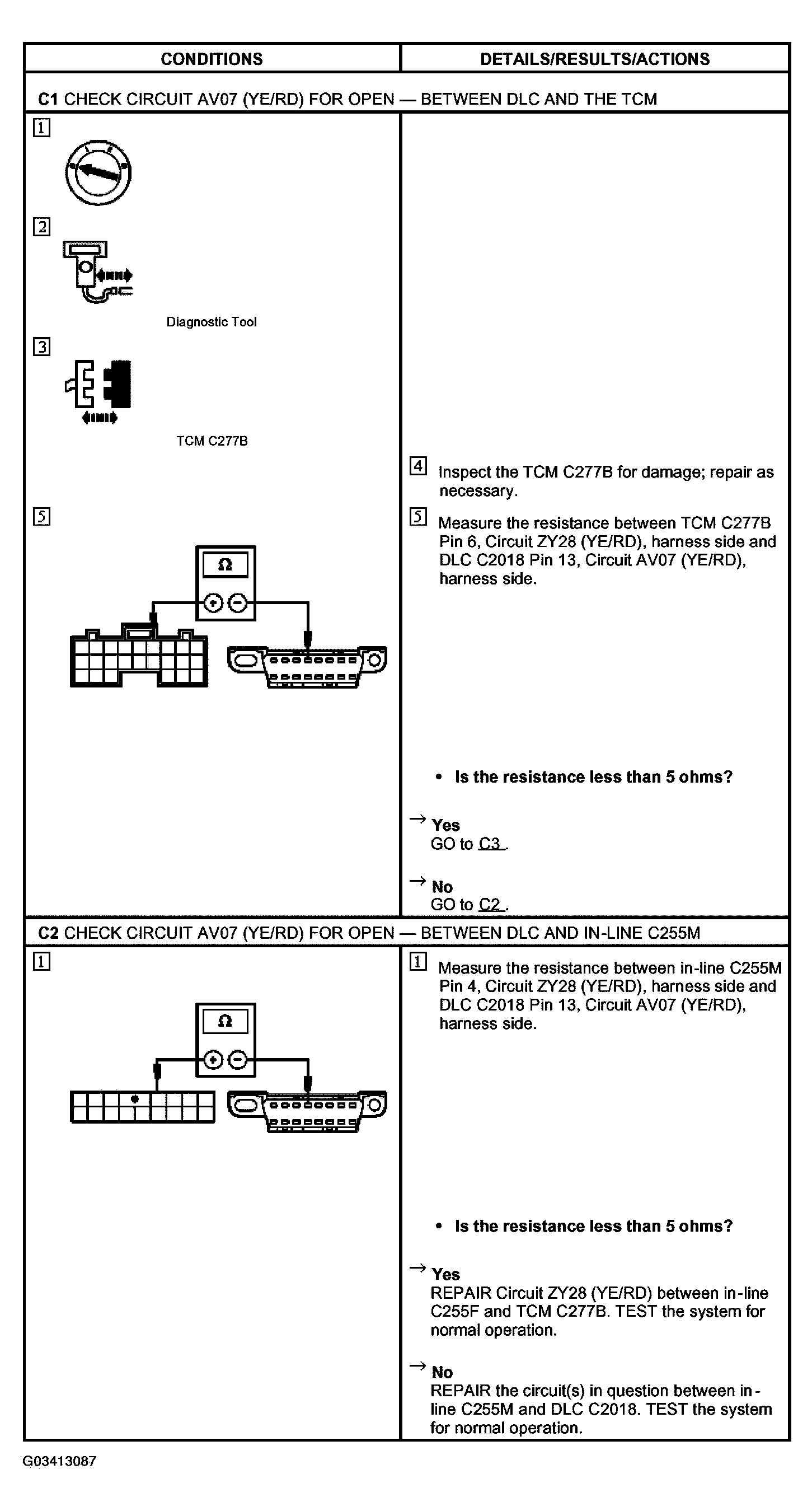

Fig 1: Pinpoint Test C: Module Does Not Respond To Diagnostic Tool - Transmission Control Module (C1-C2)

Courtesy of FORD MOTOR CO.

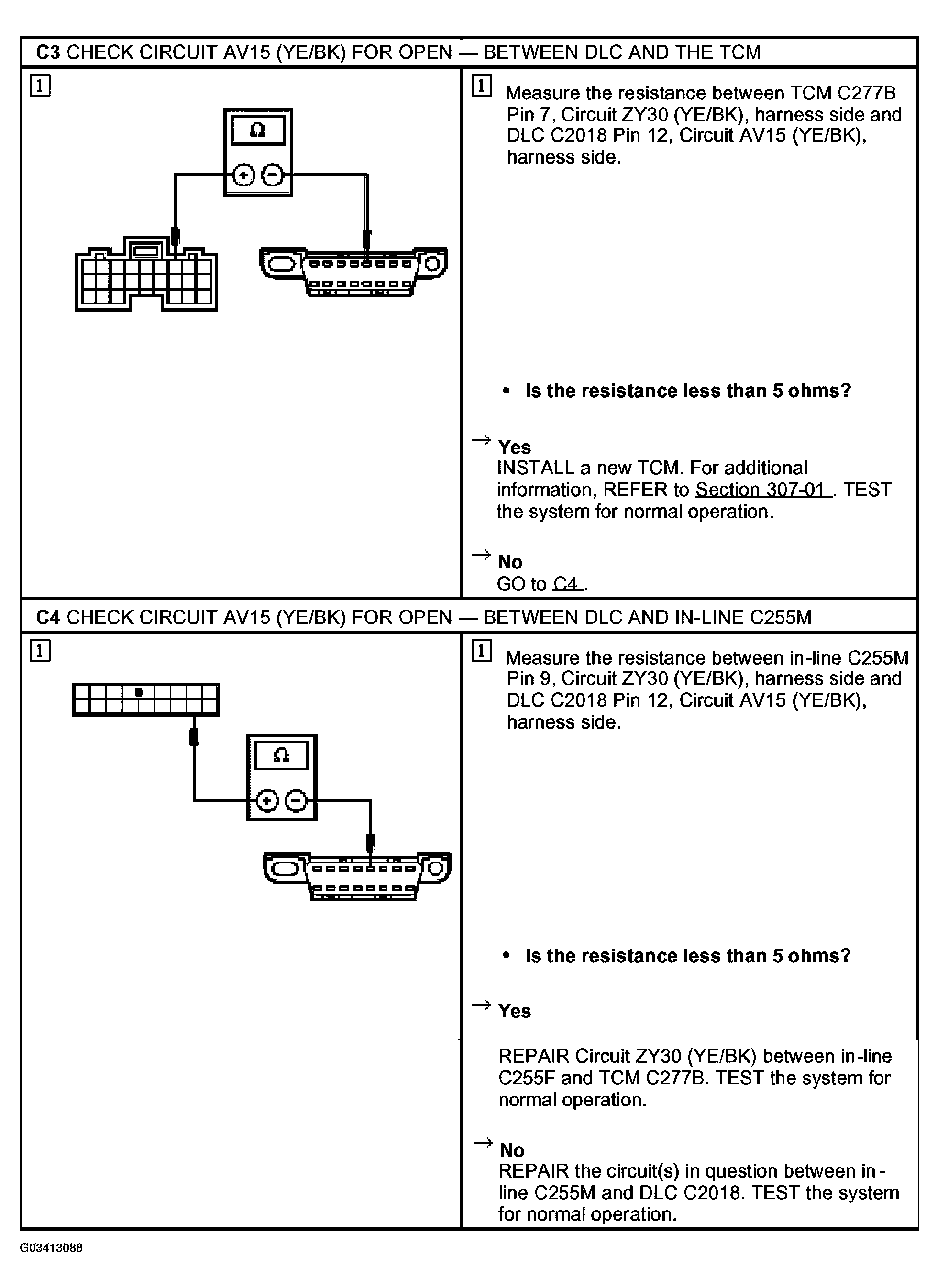

Fig 2: Pinpoint Test C: Module Does Not Respond To Diagnostic Tool - Transmission Control Module (C3-C4)

Courtesy of FORD MOTOR CO.
