Pinpoint Test A: Steering System Noise

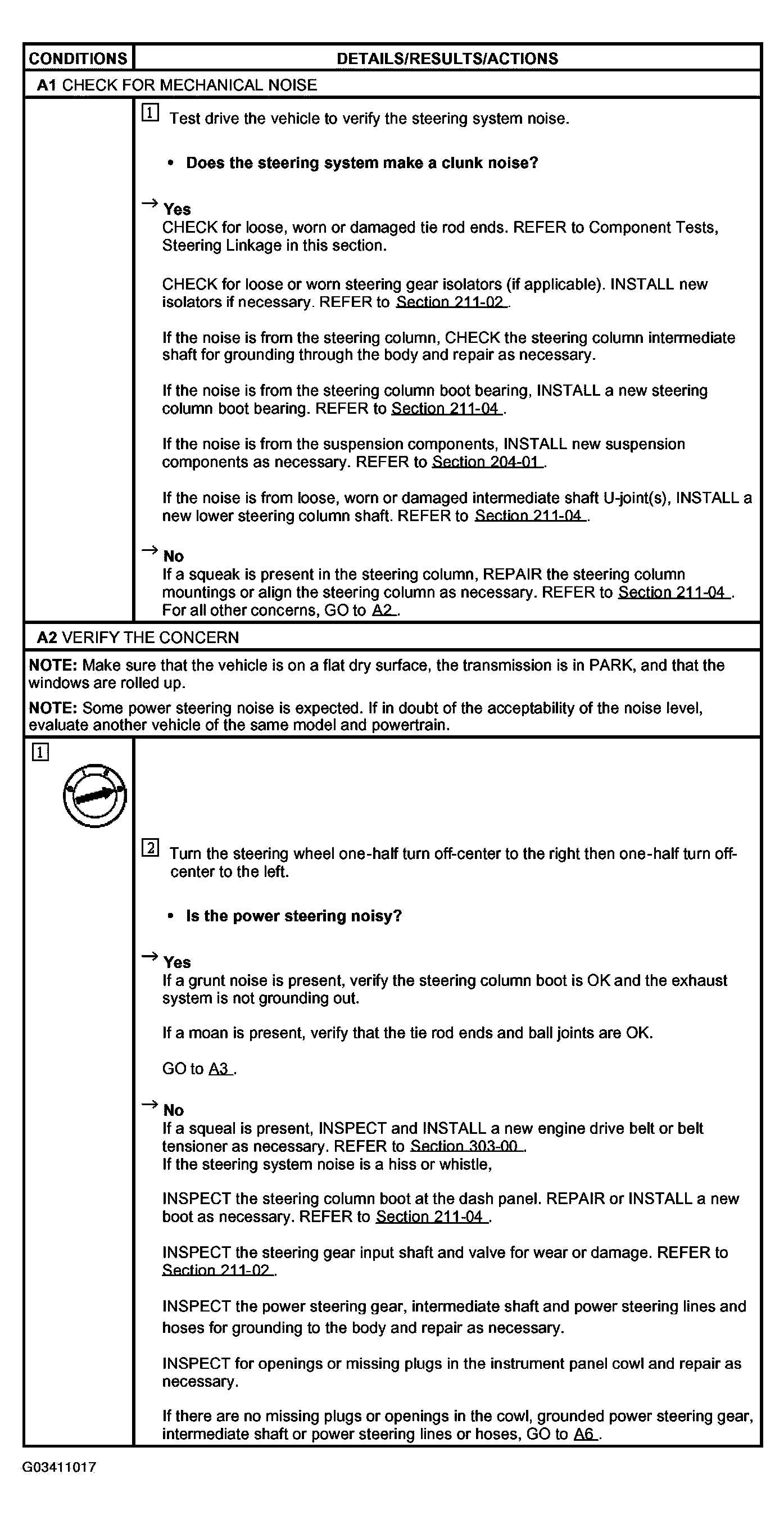

Fig 1: Pinpoint Test A: Steering System Noise (A1-A2)
G03411017Courtesy of FORD MOTOR CO.

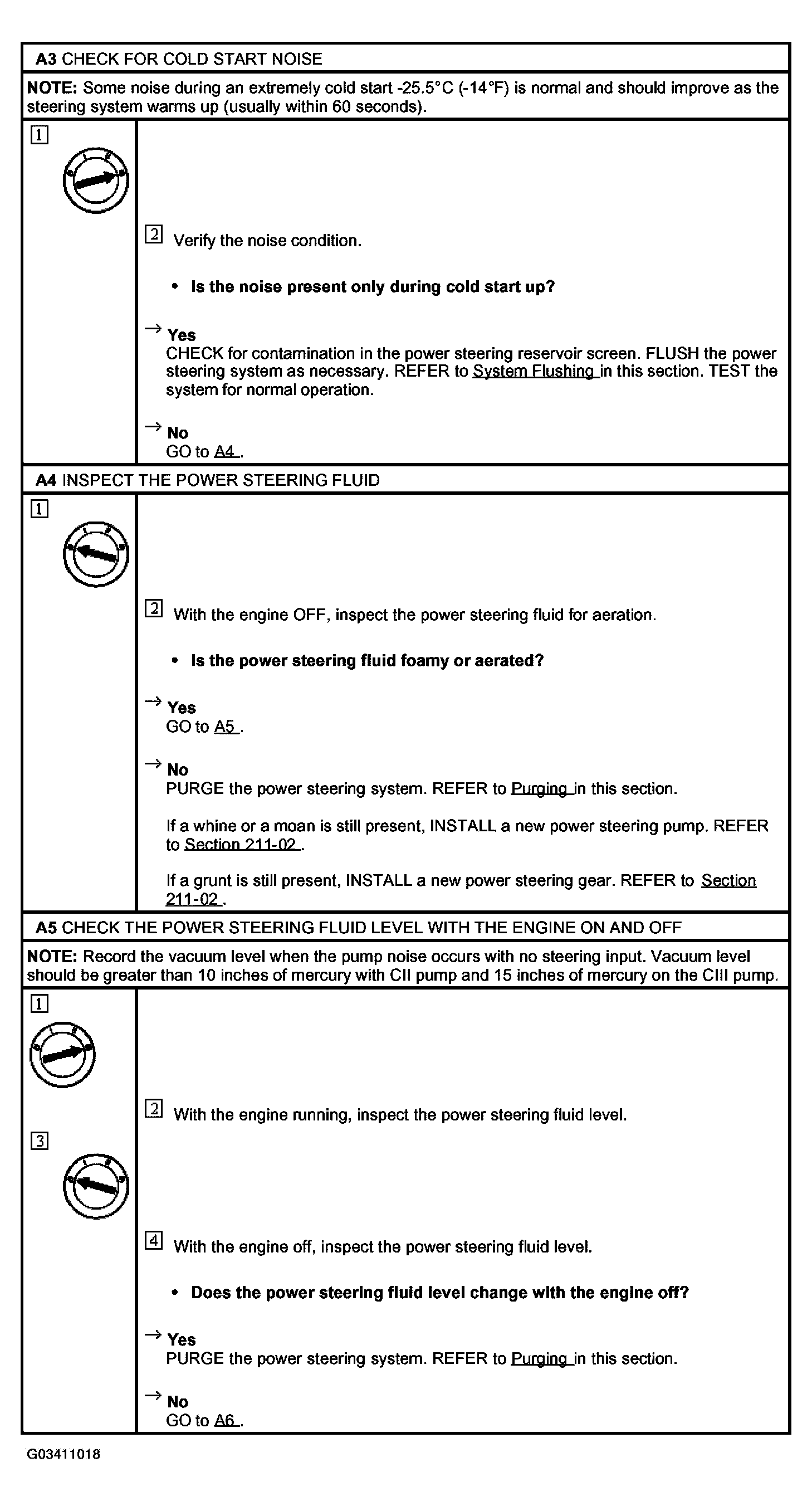

Fig 2: Pinpoint Test A: Steering System Noise (A3-A5)
G03411018Courtesy of FORD MOTOR CO.

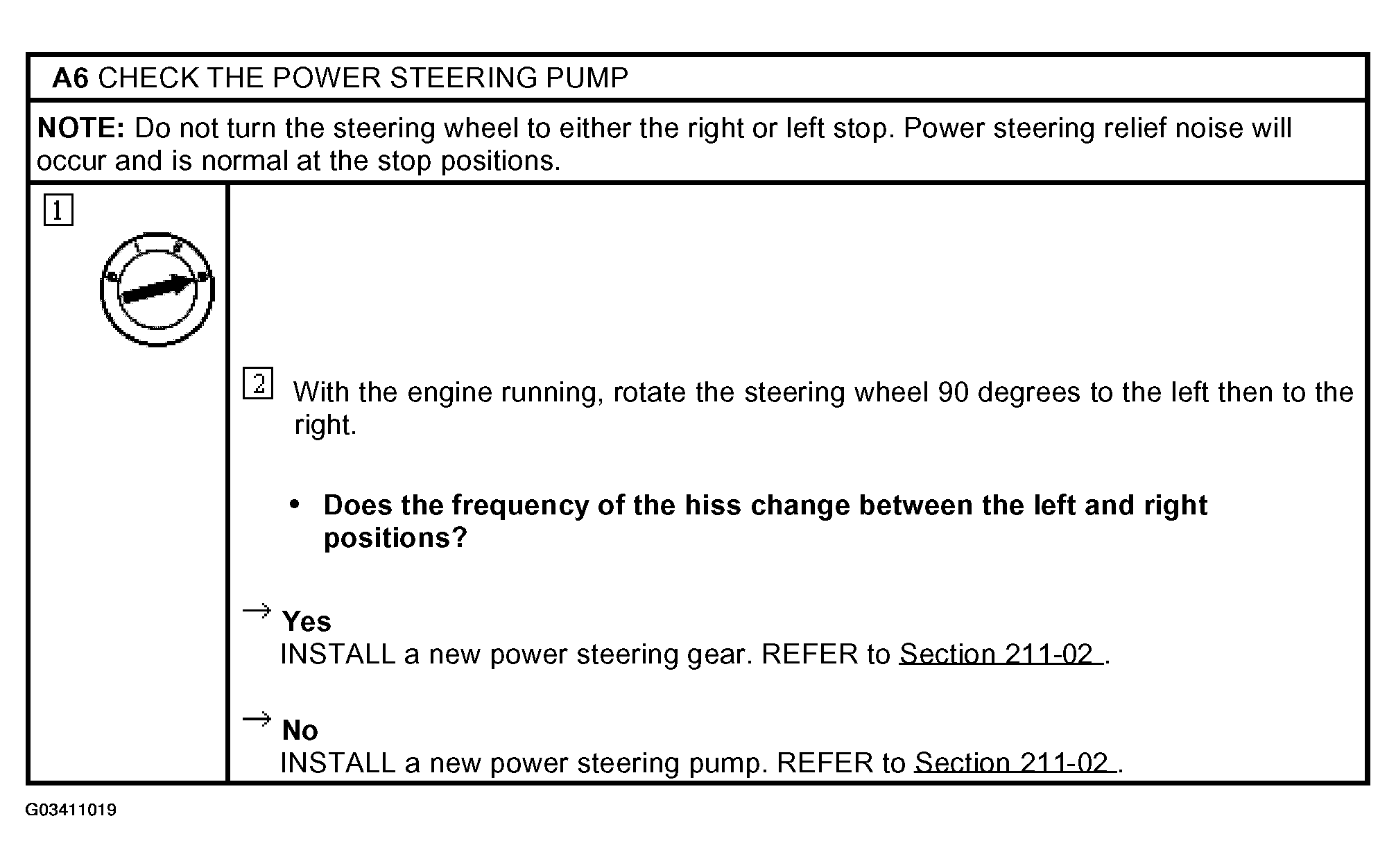

Fig 3: Pinpoint Test A: Steering System Noise (A6)
G03411019Courtesy of FORD MOTOR CO.
