Pinpoint Test J: Panic Feature Is Inoperative/Does Not Operate Correctly

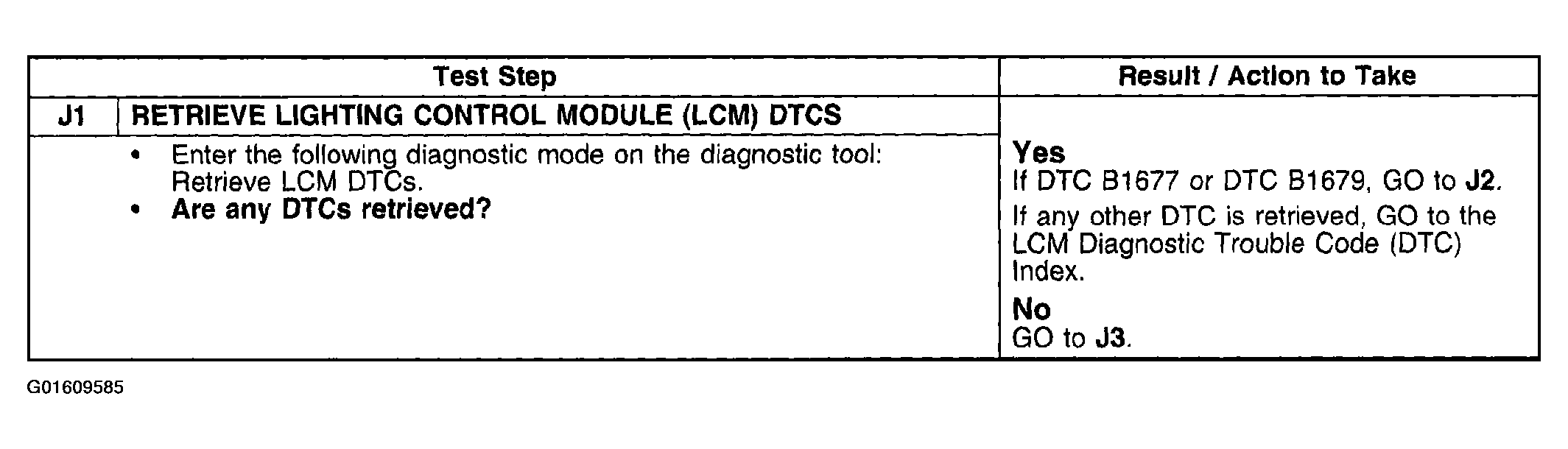

Fig 1: Pinpoint Test J: Panic Feature Is Inoperative/Does Not Operate Correctly (J1)
G01609585Courtesy of FORD MOTOR CO.

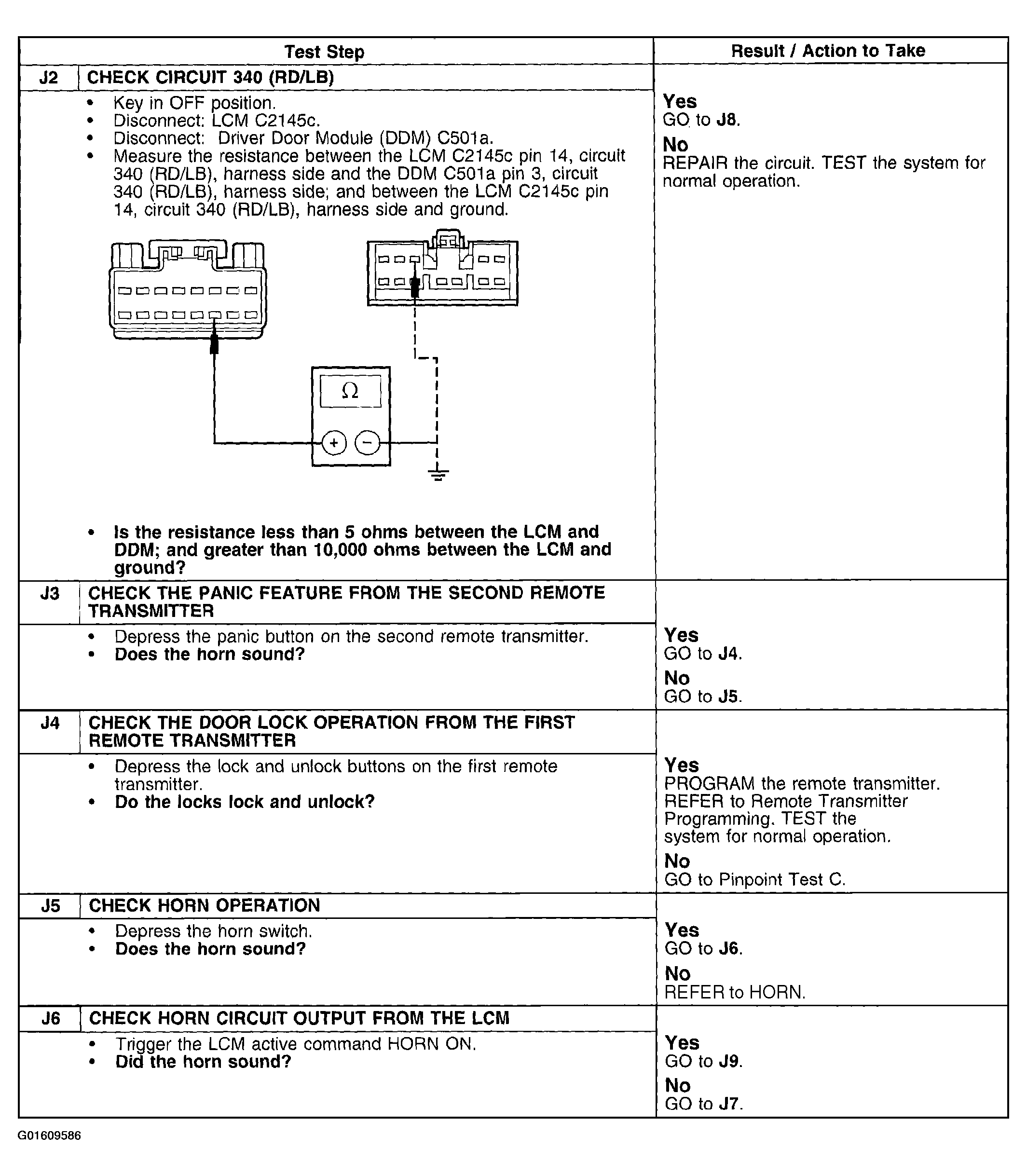

Fig 2: Pinpoint Test J: Panic Feature Is Inoperative/Does Not Operate Correctly (J2 To J6)
G01609586Courtesy of FORD MOTOR CO.

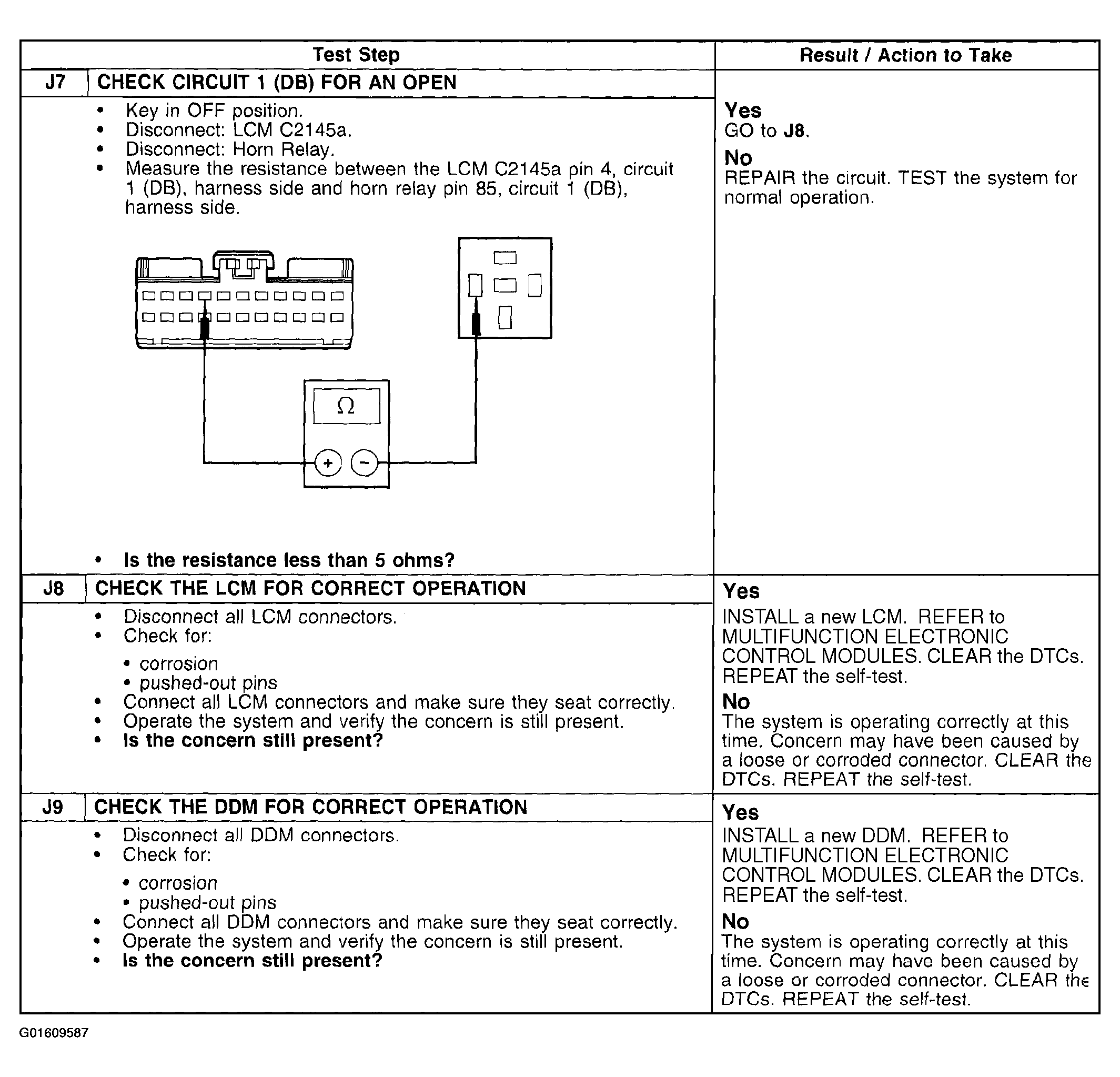

Fig 3: Pinpoint Test J: Panic Feature Is Inoperative/Does Not Operate Correctly (J7 To J9)
G01609587Courtesy of FORD MOTOR CO.
