Pinpoint Test B: No Communication With Driver Door Module

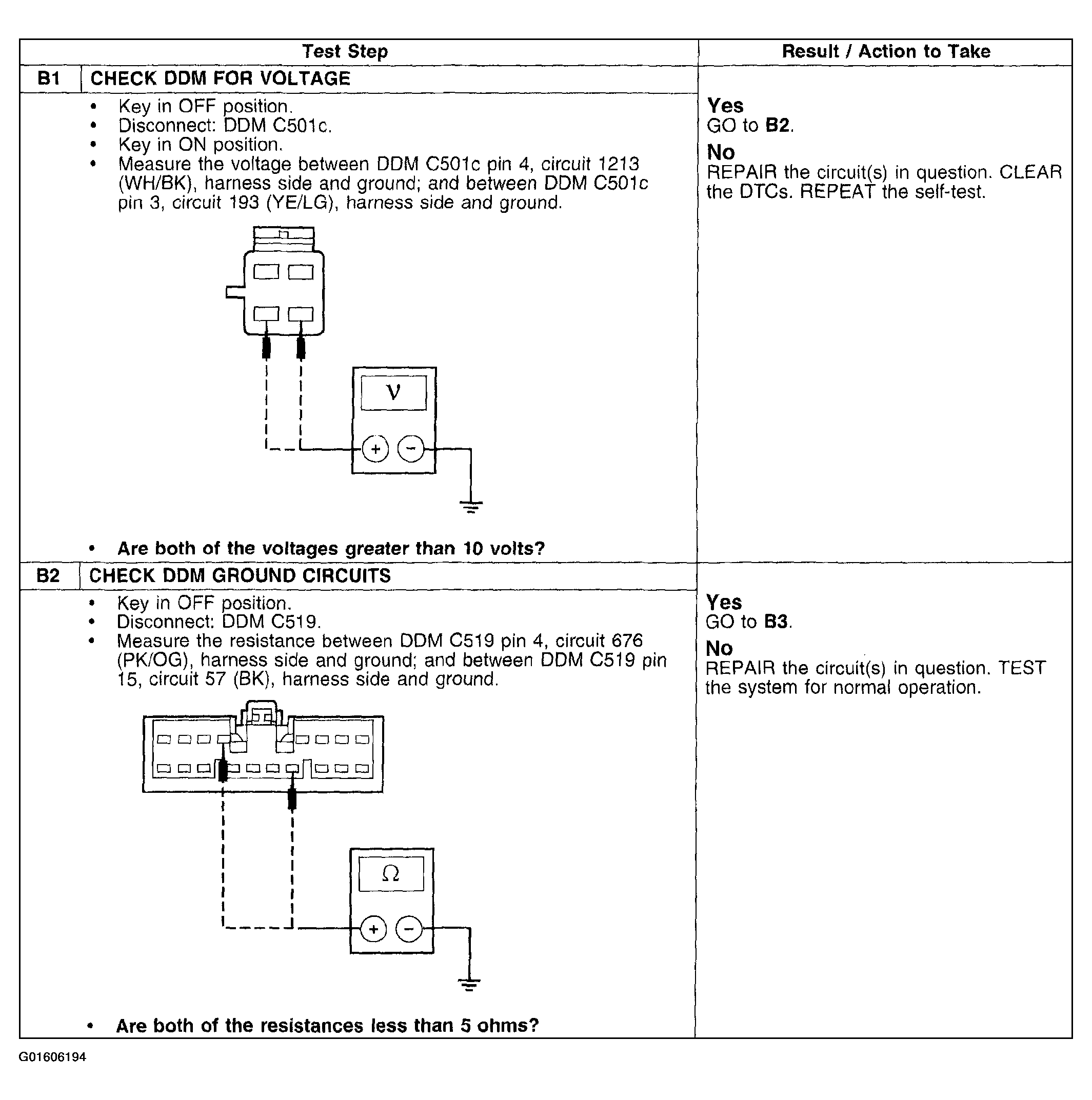

Fig 1: Pinpoint Test B: No Communication With Driver Door Module (1 Of 2)
G01606194Courtesy of FORD MOTOR CO.

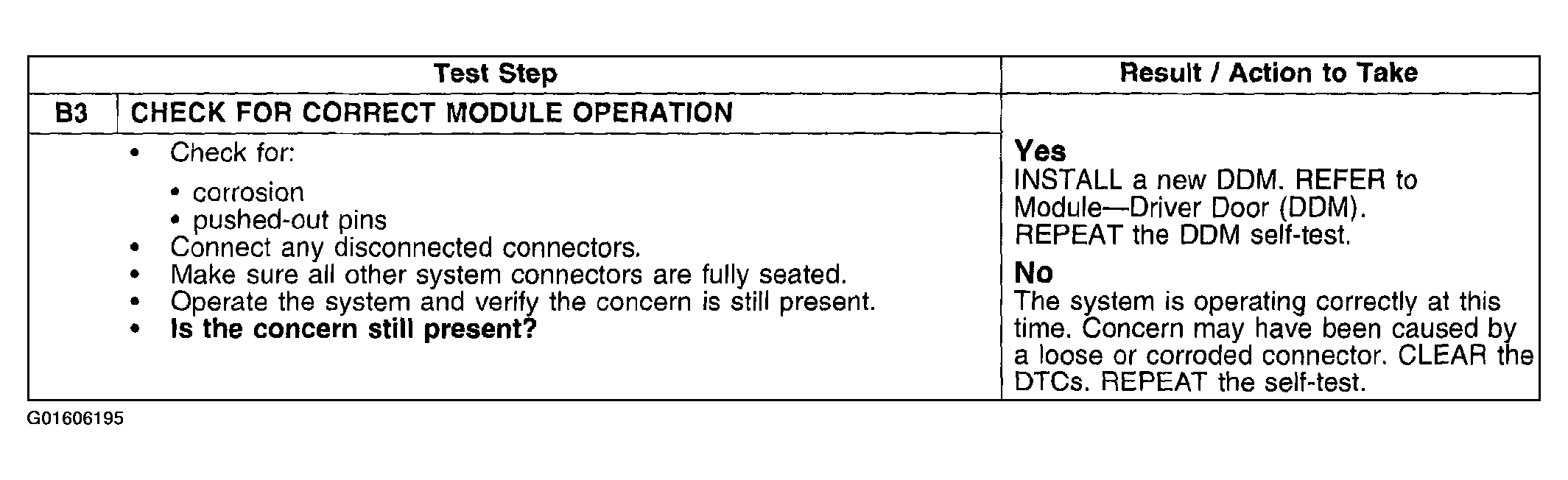

Fig 2: Pinpoint Test B: No Communication With Driver Door Module (2 Of 2)
G01606195Courtesy of FORD MOTOR CO.
