Pinpoint Test C: Driver Door Module (DDM) Does Not Respond To Diagnostic Tool

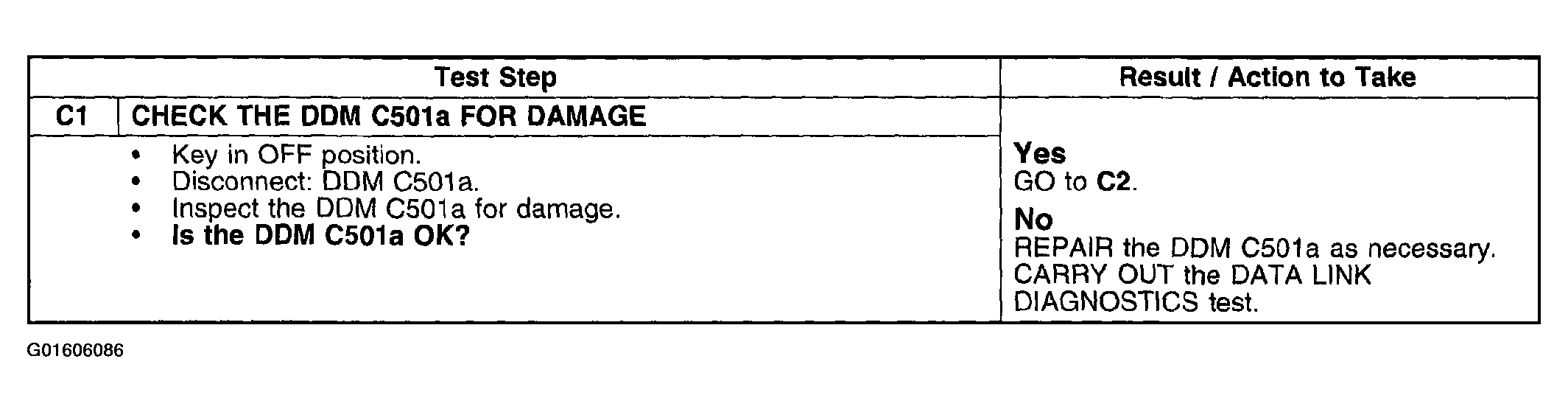

Fig 1: Pinpoint Test C: Driver Door Module (DDM) Does Not Respond To Diagnostic Tool (C1)
G01606086Courtesy of FORD MOTOR CO.

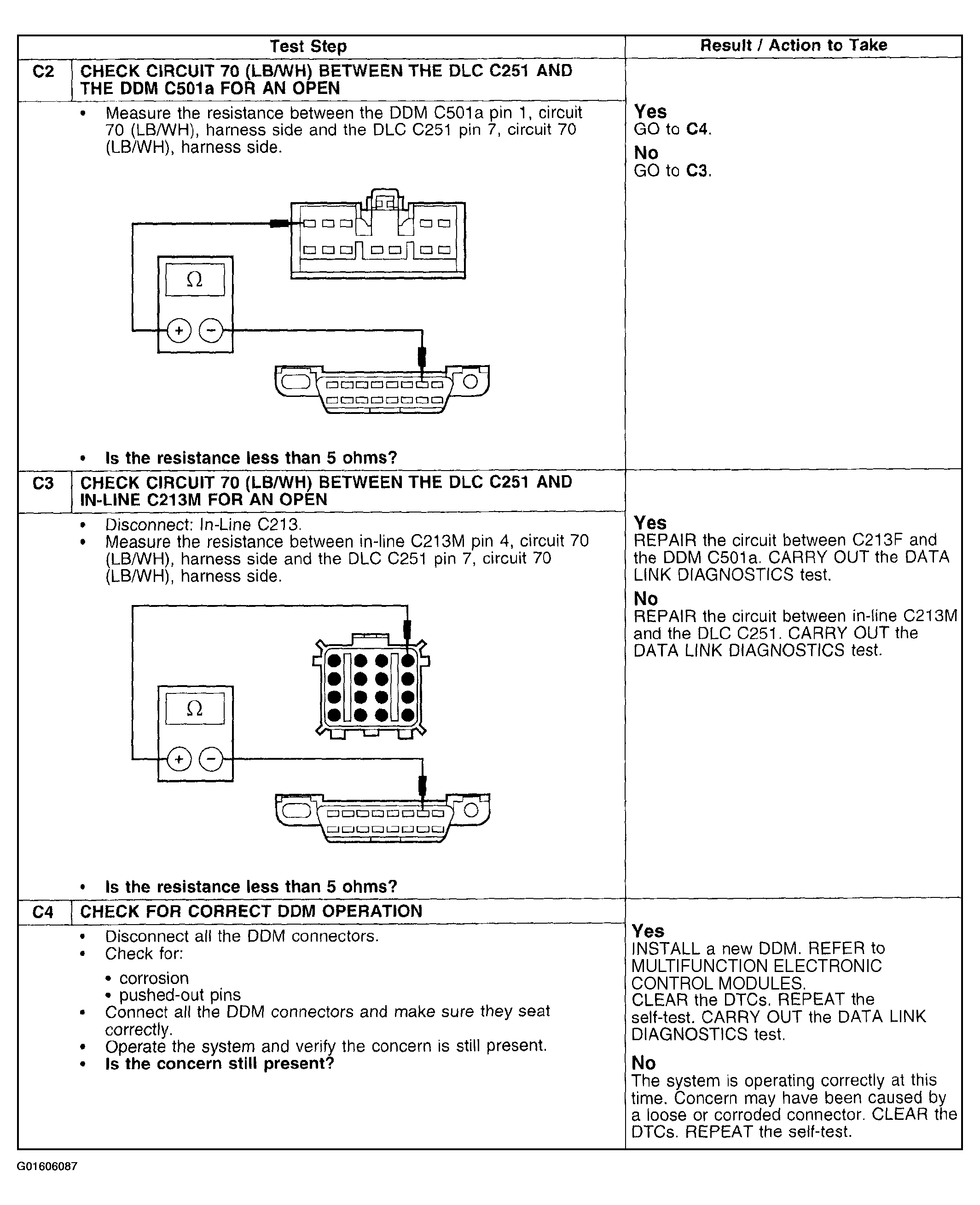

Fig 2: Pinpoint Test C: Driver Door Module (DDM) Does Not Respond To Diagnostic Tool (C2-C4)
G01606087Courtesy of FORD MOTOR CO.
