Pinpoint Test M: No Module/Network Communication - No Power To Diagnostic Tool

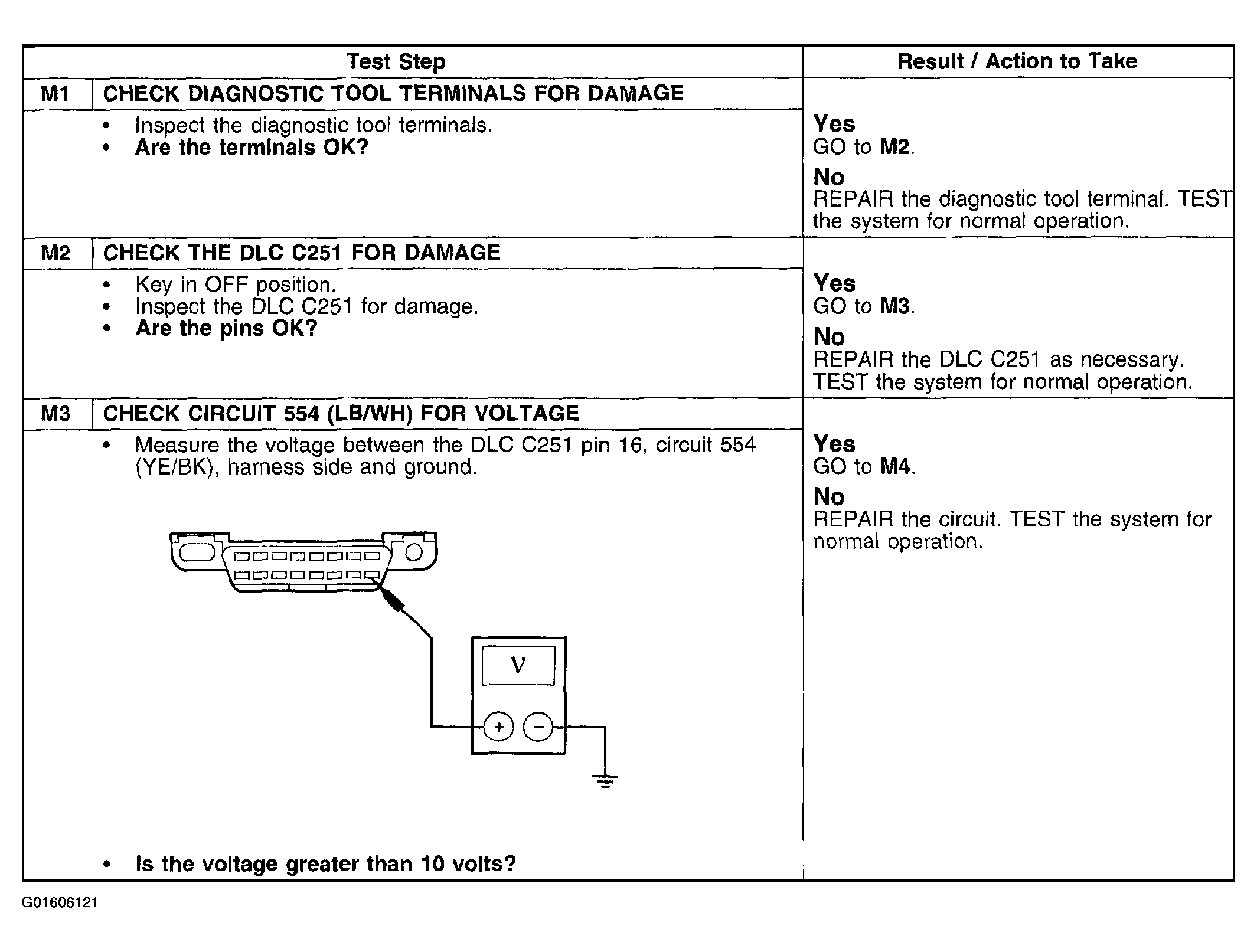

Fig 1: Pinpoint Test M: No Module/Network Communication - No Power To Diagnostic Tool (M1-M3)
G01606121Courtesy of FORD MOTOR CO.

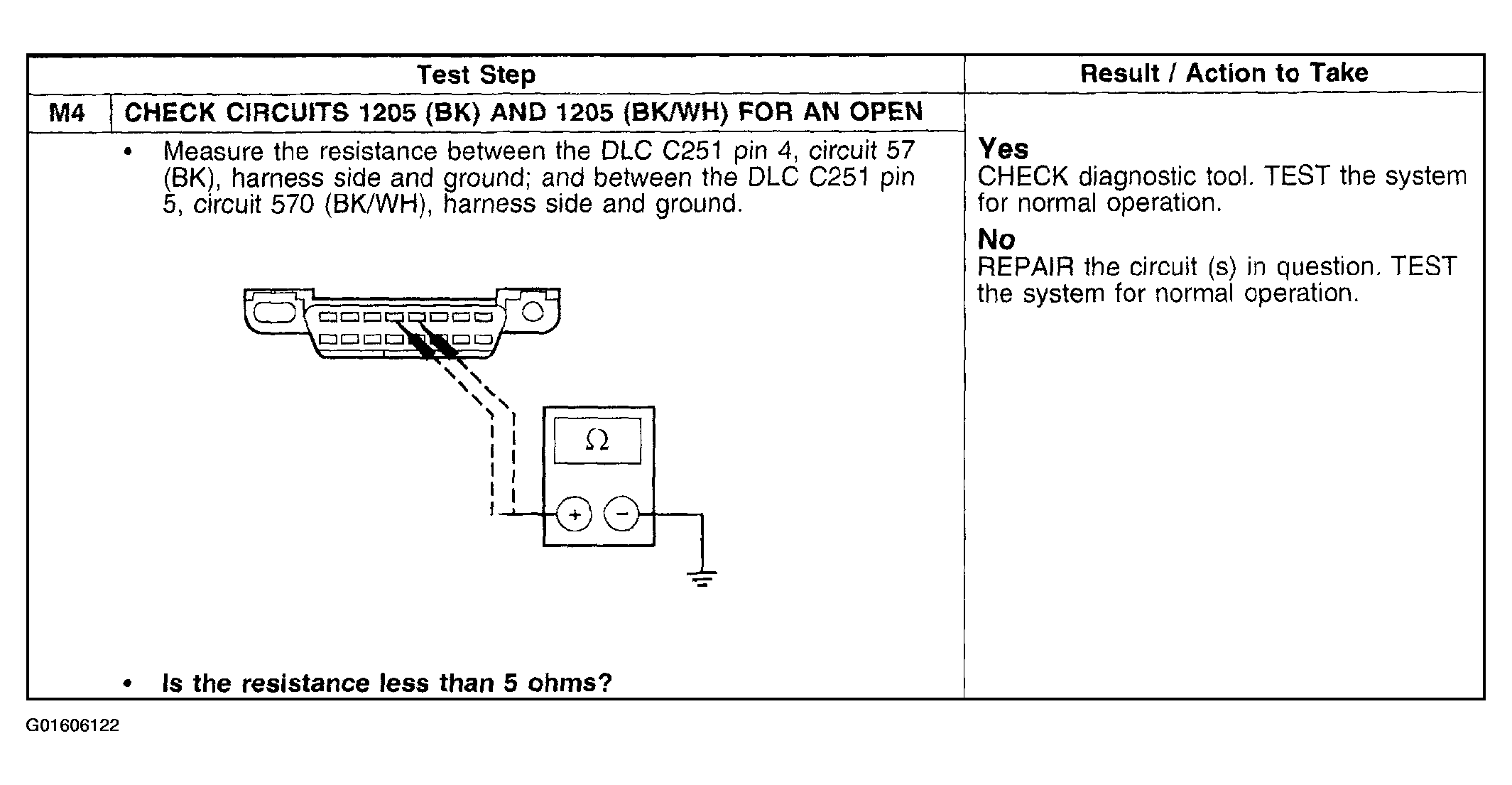

Fig 2: Pinpoint Test M: No Module/Network Communication - No Power To Diagnostic Tool (M4)
G01606122Courtesy of FORD MOTOR CO.
