Electronic Automatic Temperature Control (EATC) Module Diagnostic Trouble Code (DTC) Index

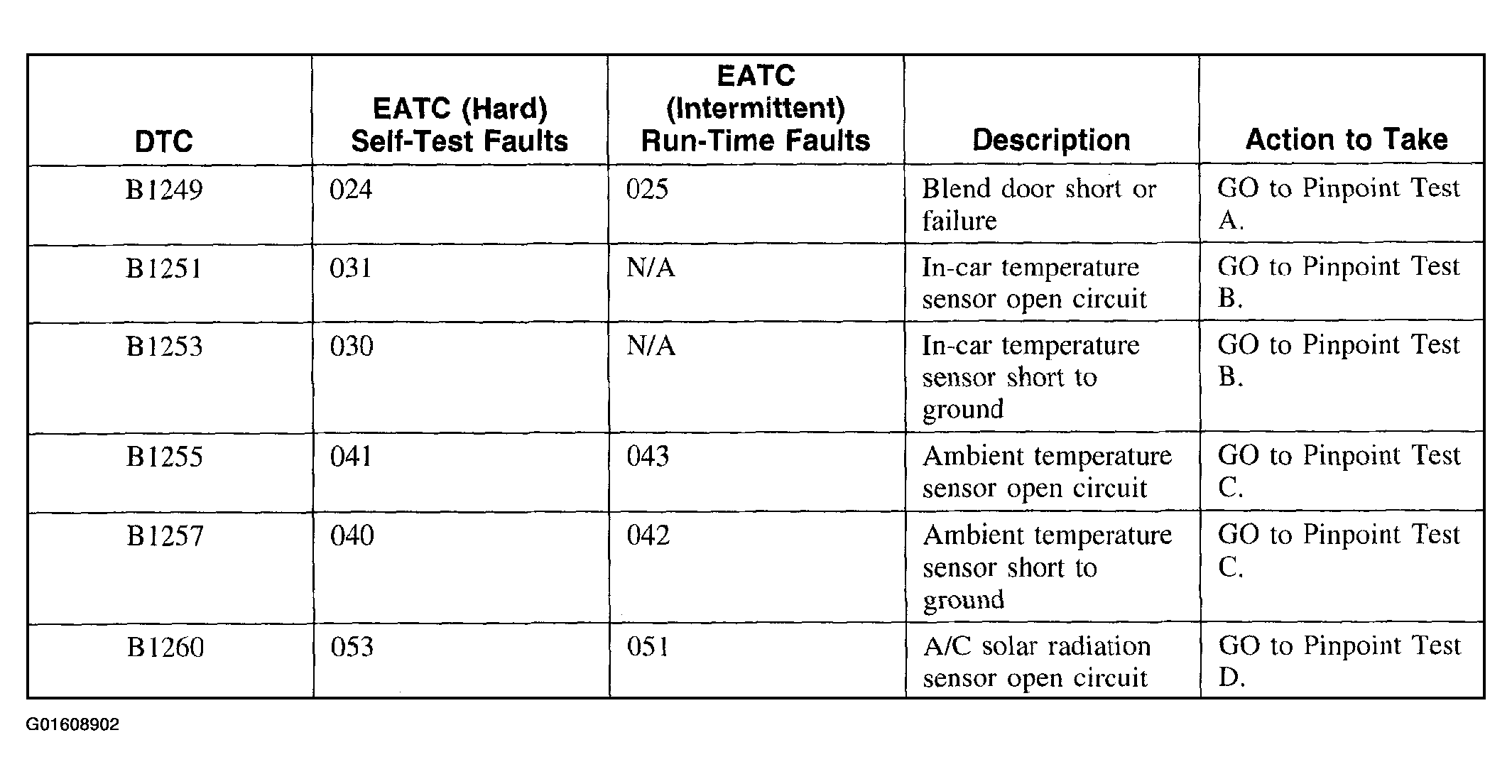

Fig 1: DTC Chart - EATC (1 Of 2)
Courtesy of FORD MOTOR CO.

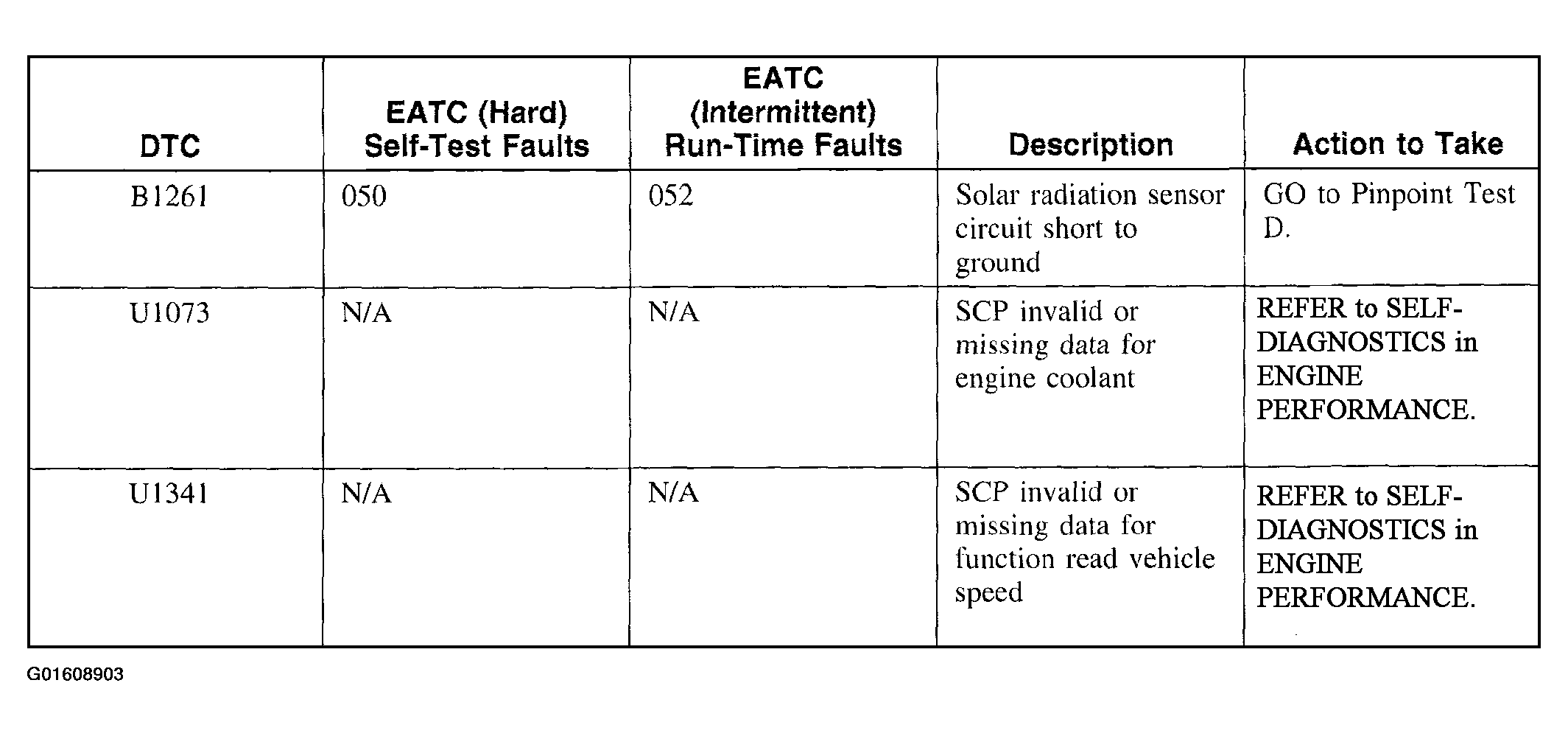

Fig 2: DTC Chart - EATC (1 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
