Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control

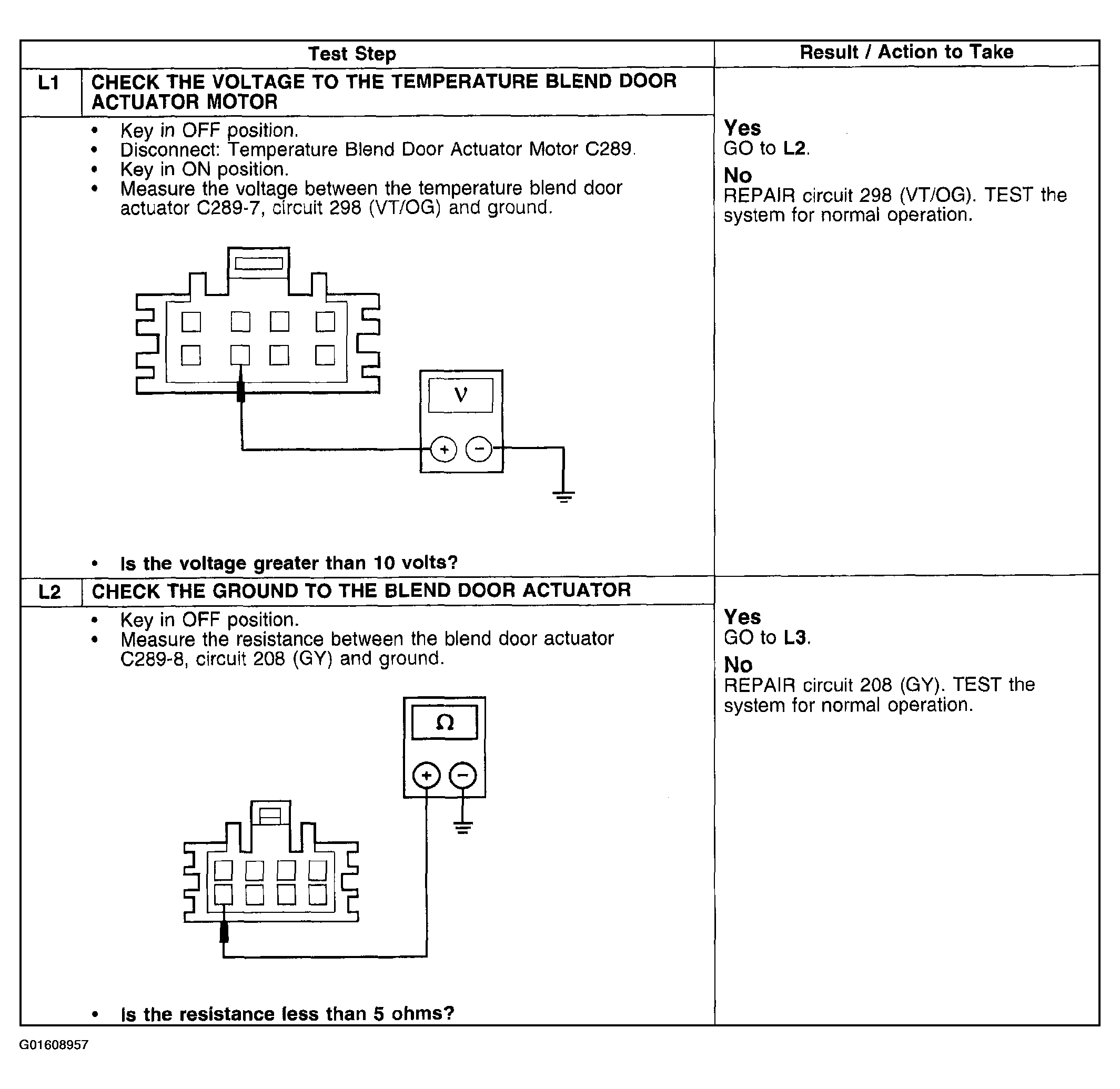

Fig 1: Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control (L1-L2)

Courtesy of FORD MOTOR CO.

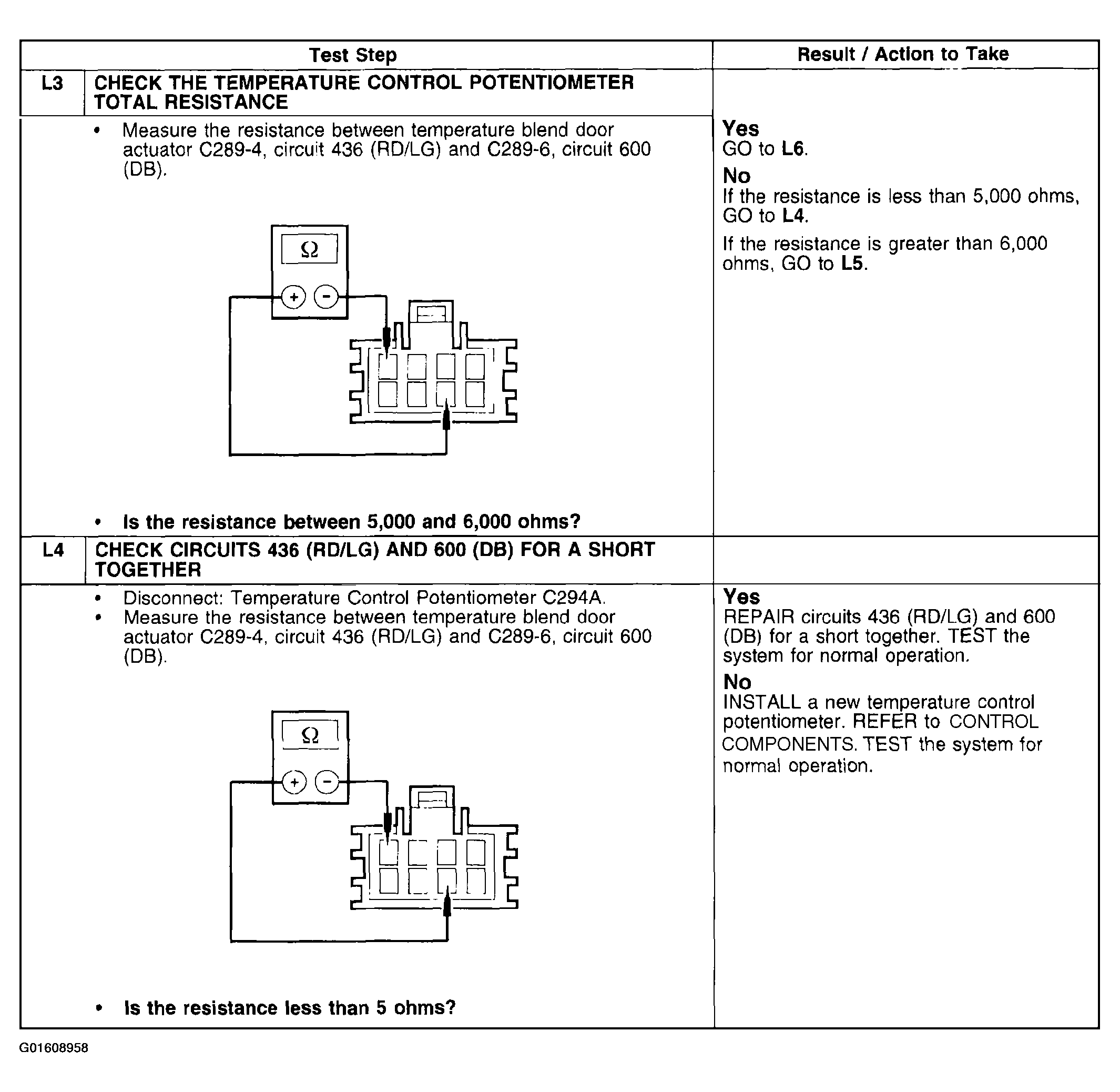

Fig 2: Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control (L3-L4)

Courtesy of FORD MOTOR CO.

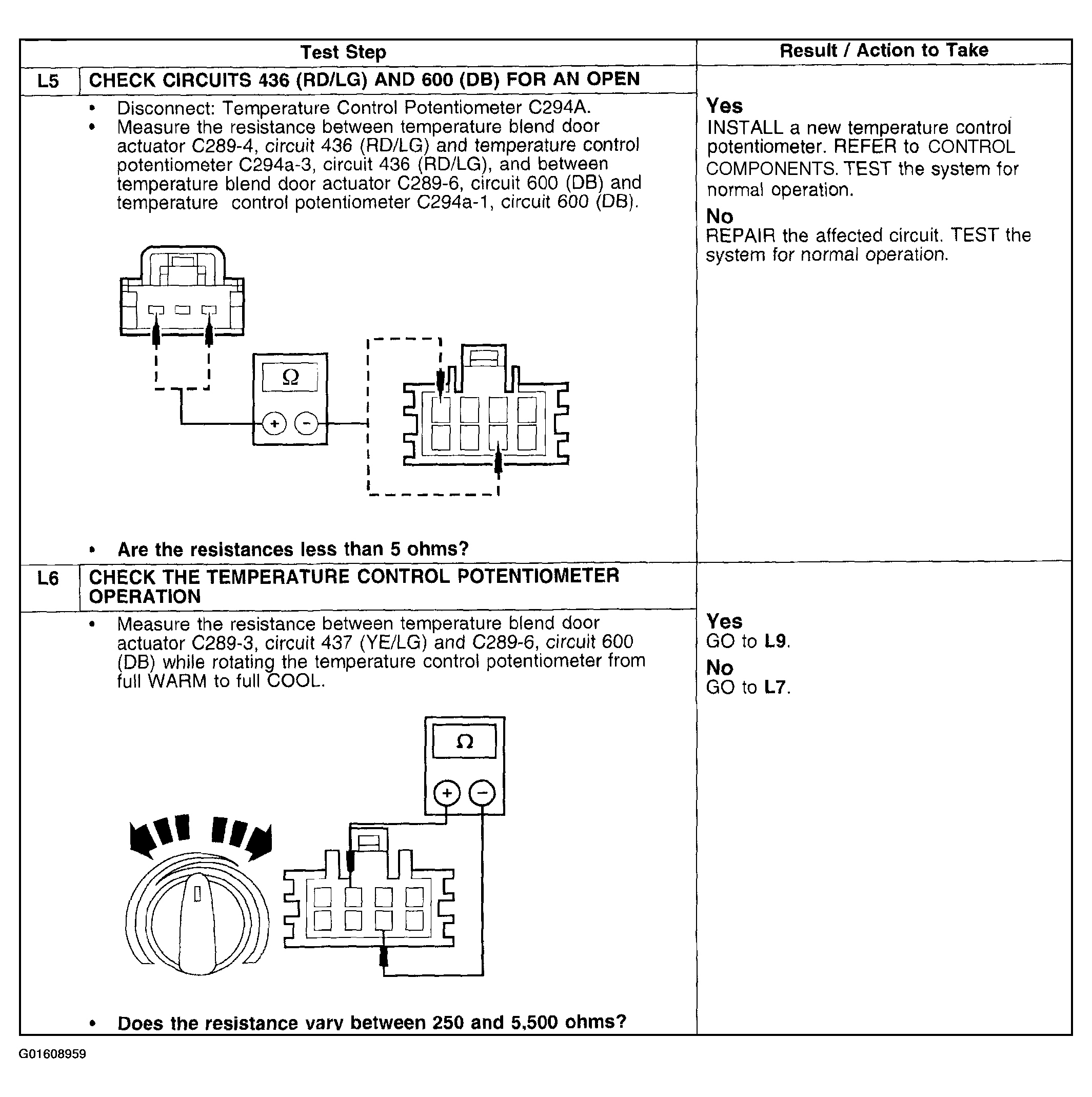

Fig 3: Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control (L5-L6)

Courtesy of FORD MOTOR CO.

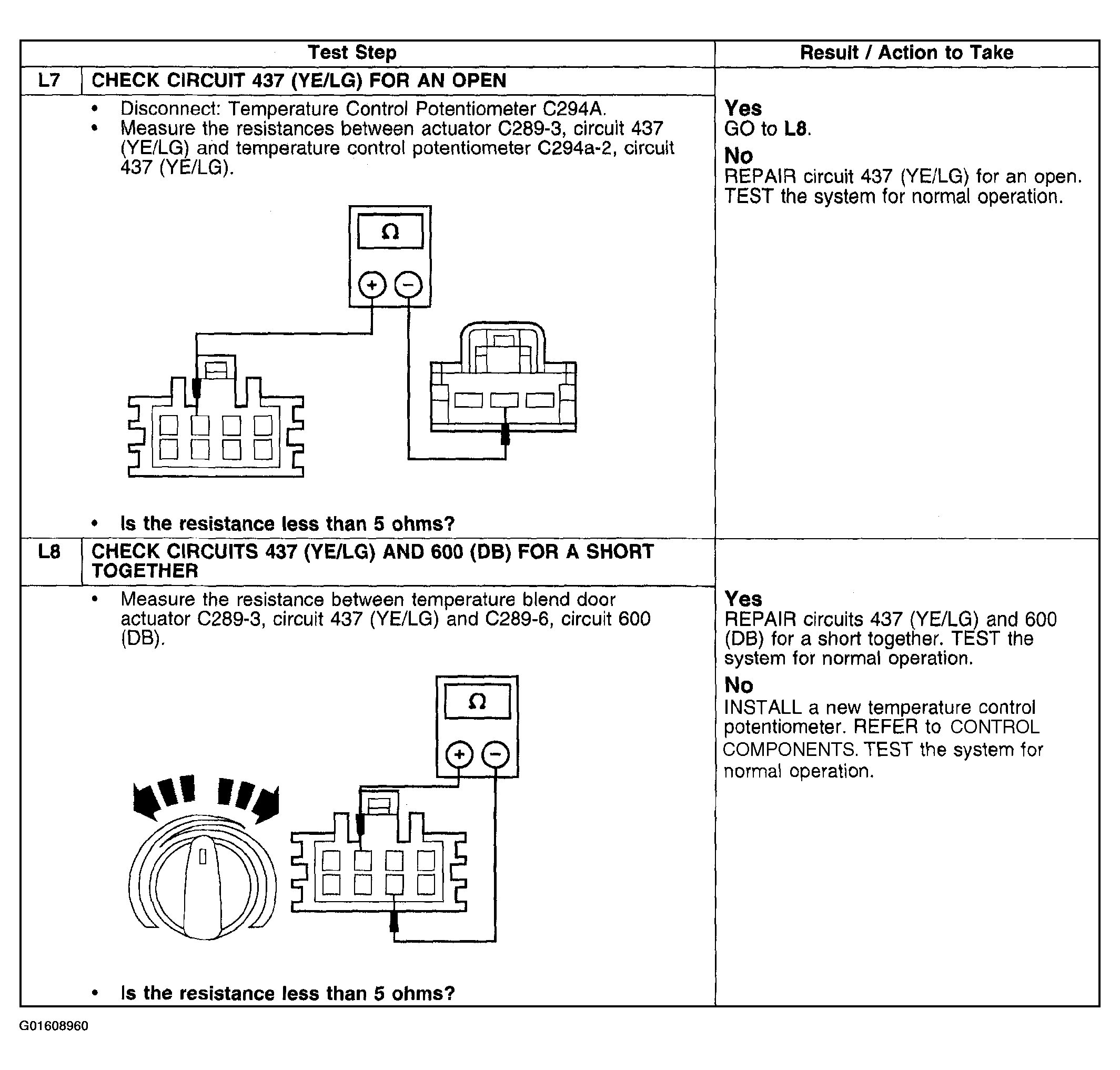

Fig 4: Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control (L7-L8)

Courtesy of FORD MOTOR CO.

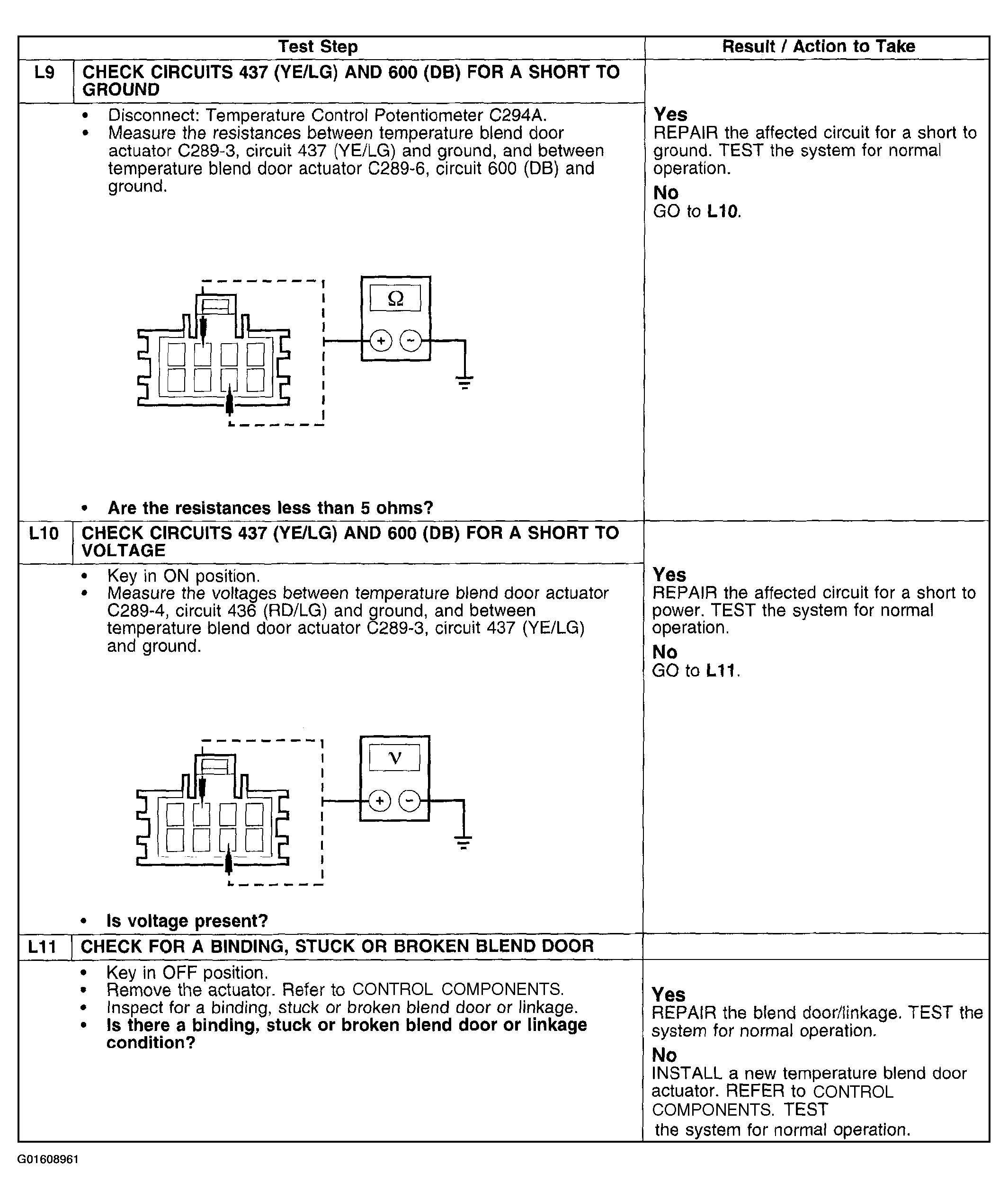

Fig 5: Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control (L9-L11)

Courtesy of FORD MOTOR CO.
