Pinpoint Test Q: Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly

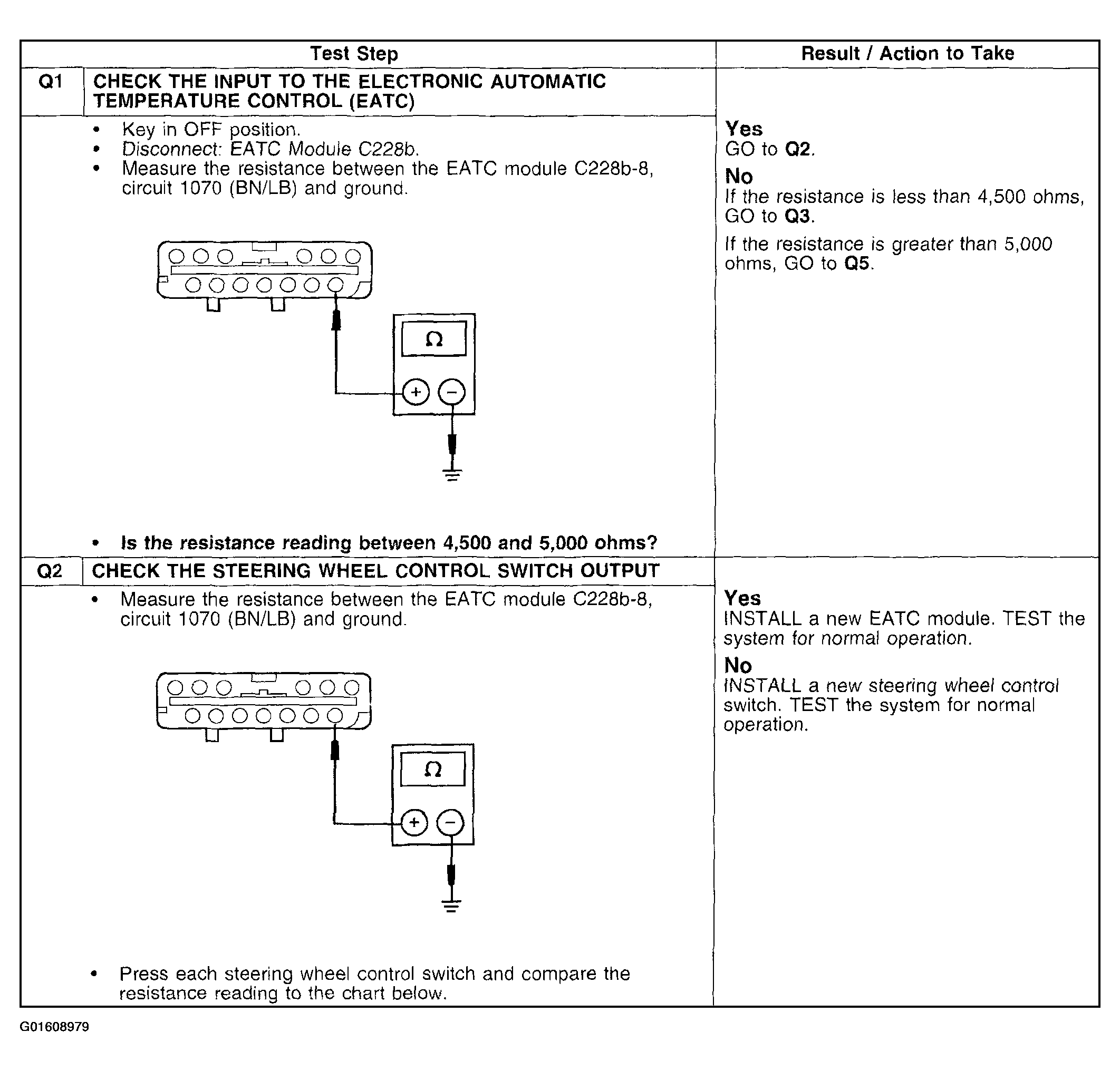

Fig 1: Pinpoint Test Q: Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Q1-Q2)
G01608979Courtesy of FORD MOTOR CO.

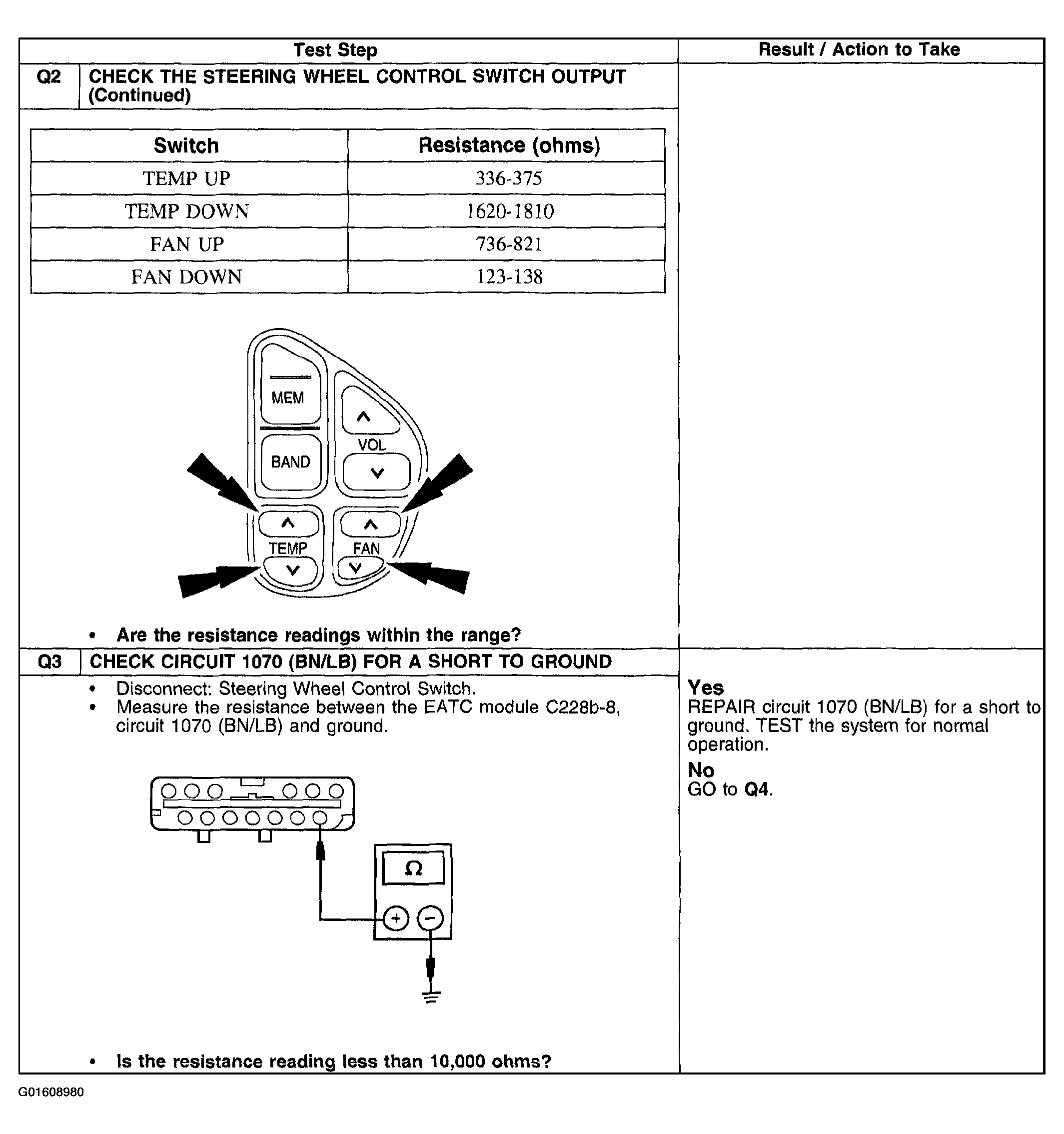

Fig 2: Pinpoint Test Q: Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Q2 Cont.-Q3)
G01608980Courtesy of FORD MOTOR CO.

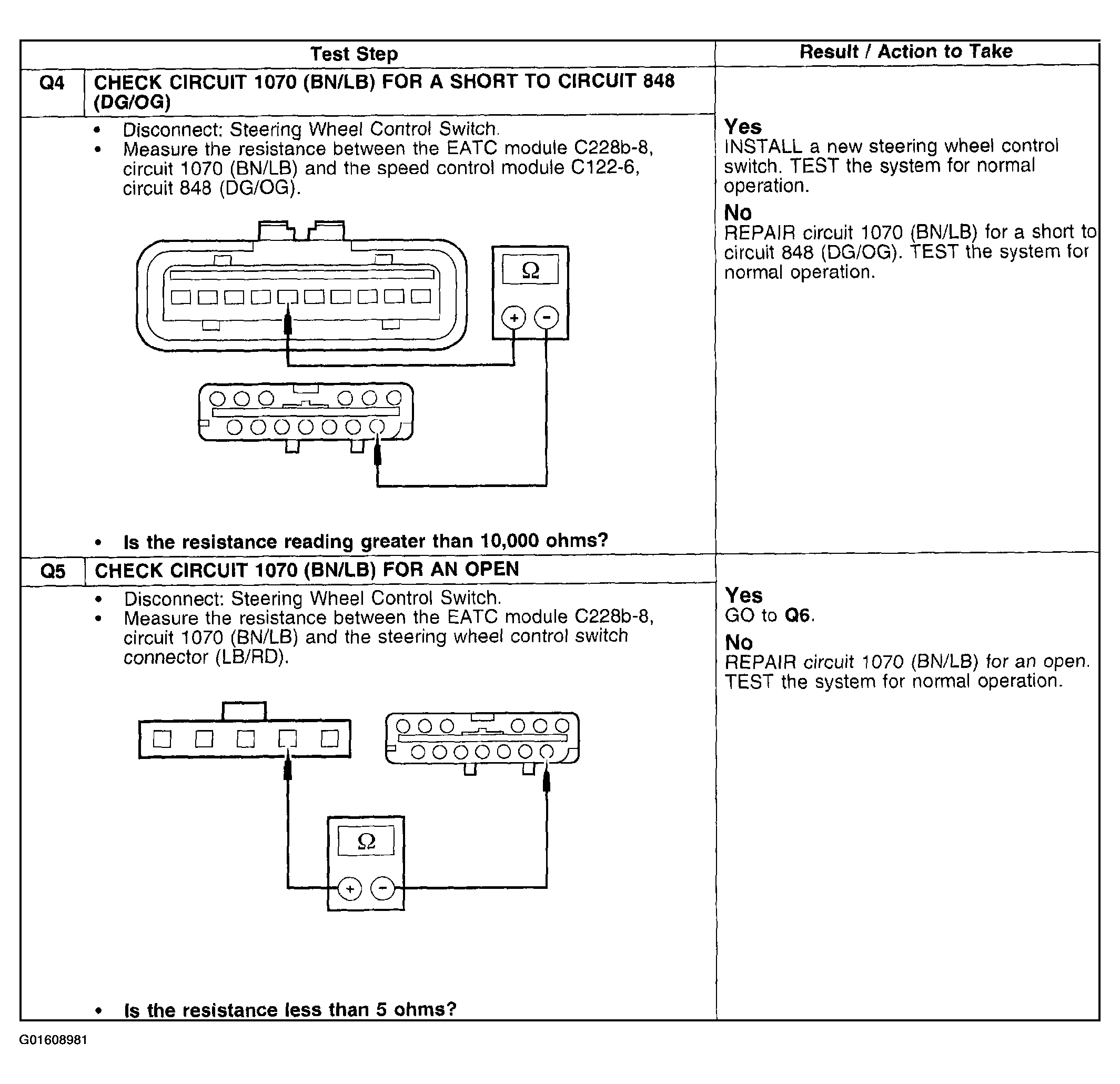

Fig 3: Pinpoint Test Q: Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Q4-Q5)
G01608981Courtesy of FORD MOTOR CO.

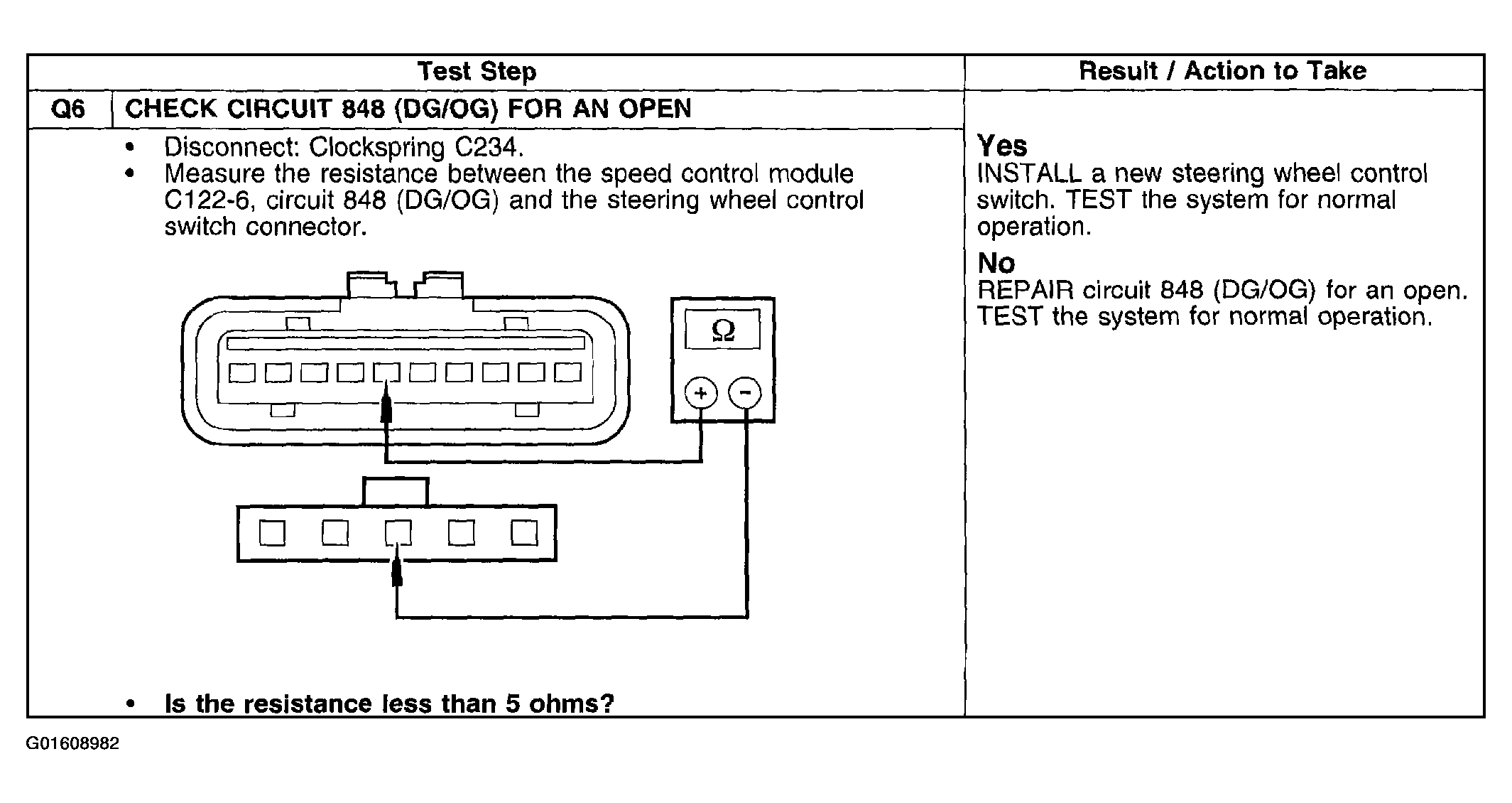

Fig 4: Pinpoint Test Q: Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Q6)
G01608982Courtesy of FORD MOTOR CO.
