Pinpoint Test B: Manual Switch Does Not Move The Adjustable Pedals - Memory Is Functional: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

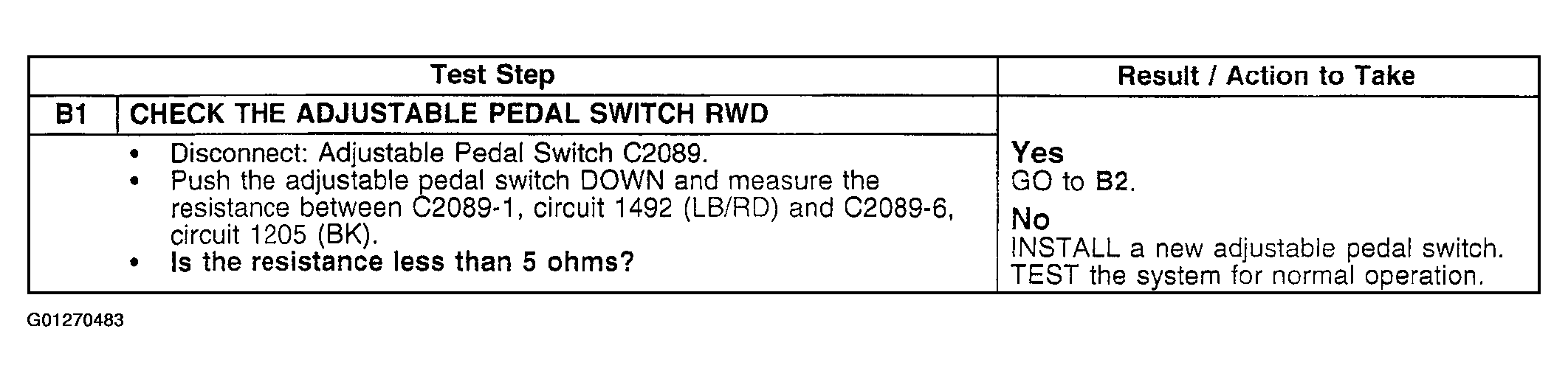

Fig 1: Pinpoint Test B: Manual Switch Does Not Move Adjustable Pedals - Memory Is Functional (B1)

Courtesy of FORD MOTOR CO.

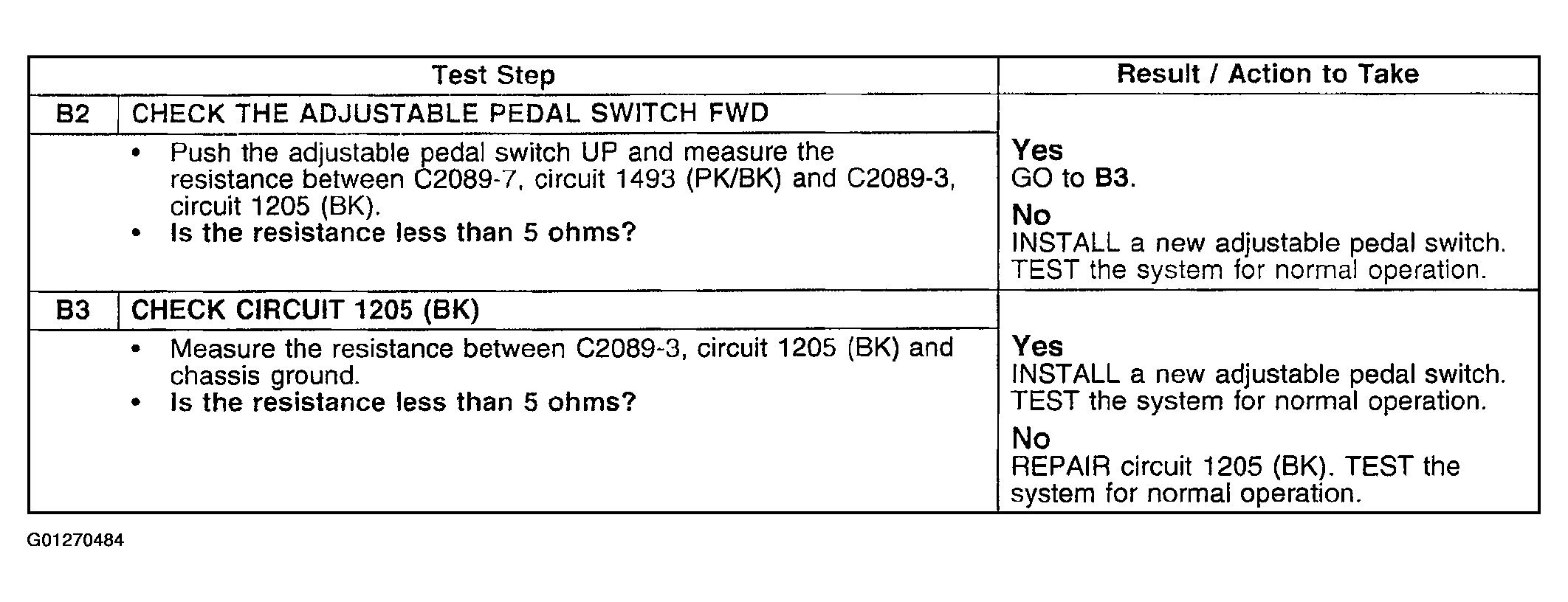

Fig 2: Pinpoint Test B: Manual Switch Does Not Move Adjustable Pedals - Memory Is Functional (B2 - B3)

Courtesy of FORD MOTOR CO.
