Pinpoint Test C: The Adjustable Pedal Memory Function Does Not Operate - Manual Switch Commands Functional: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

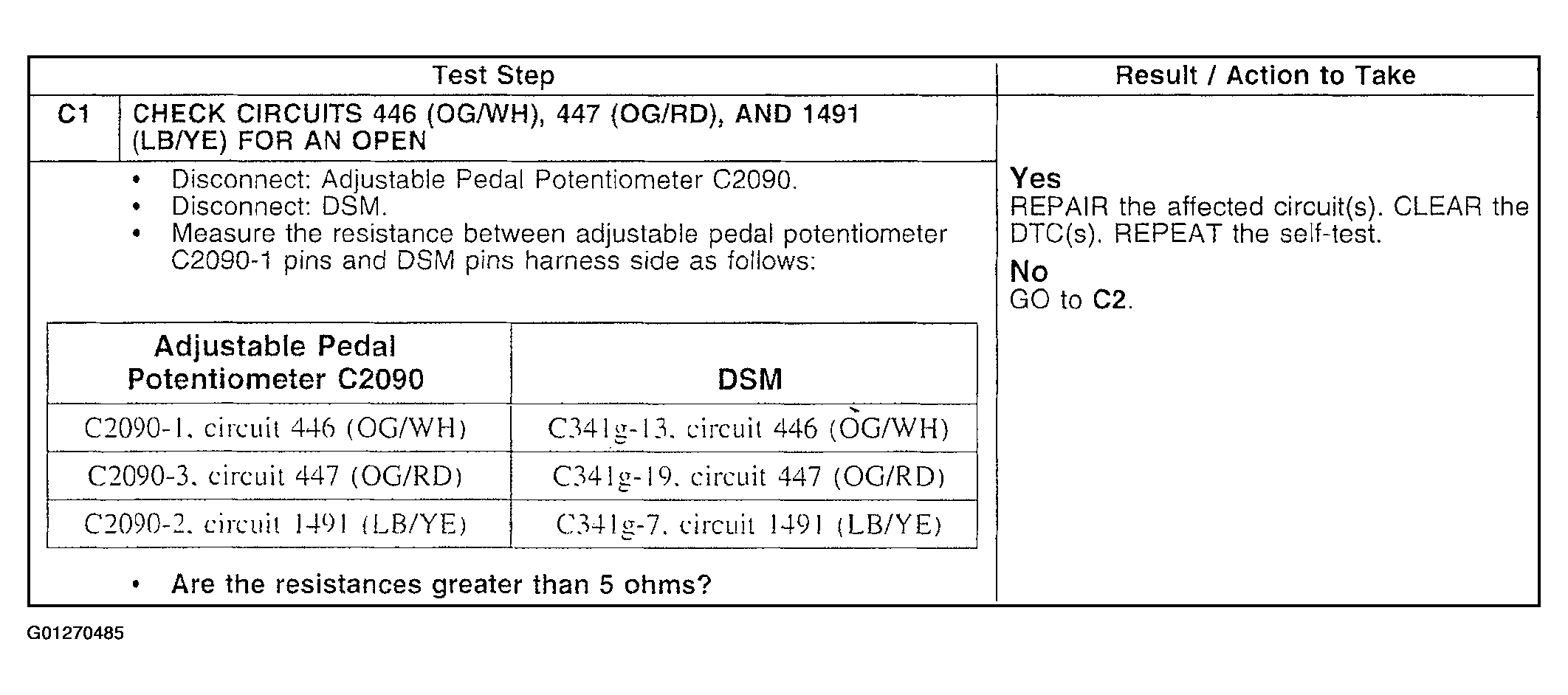

Fig 1: Pinpoint Test C: Adjustable Pedal Memory Function Does Not Operate (C1)

Courtesy of FORD MOTOR CO.

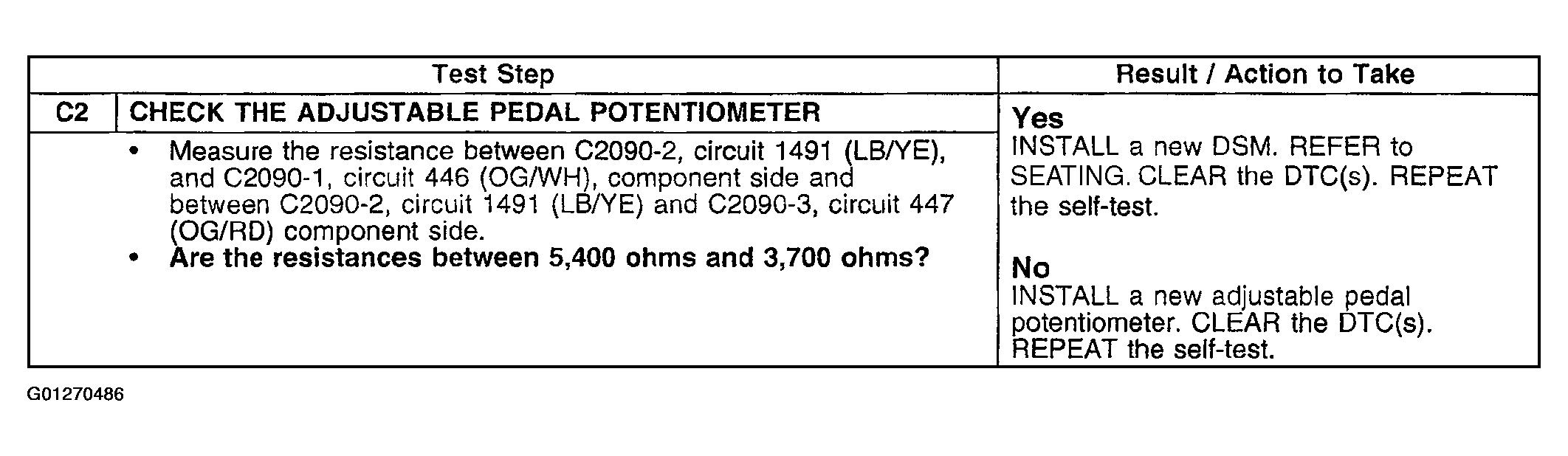

Fig 2: Pinpoint Test C: Adjustable Pedal Memory Function Does Not Operate (C2)

Courtesy of FORD MOTOR CO.
