Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY AND CHARGING SYSTEM .
  2. Remove the components in the order indicated in the following illustration and table.

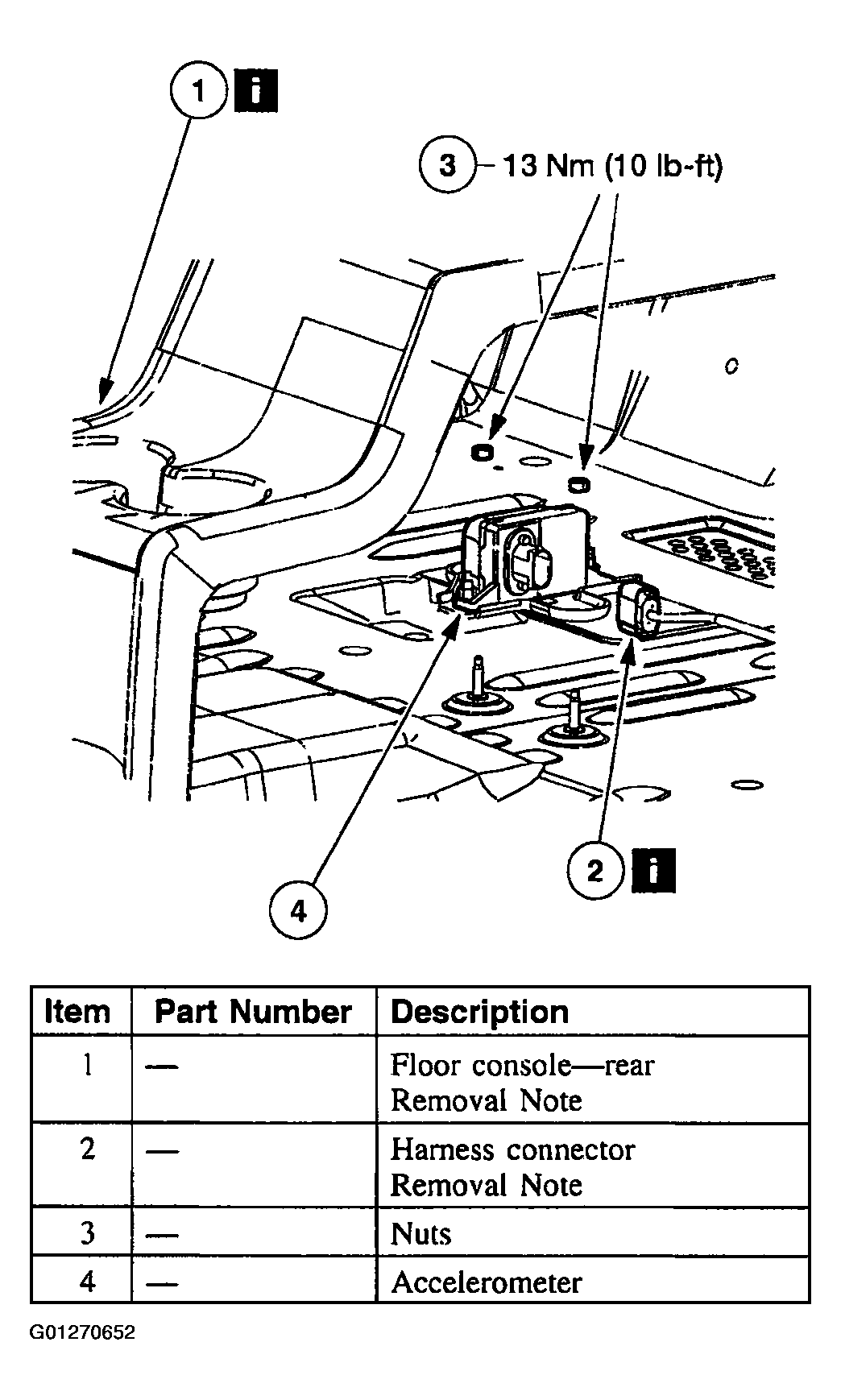

    Fig 1: Identifying Accelerometer Components In Order Of Removal
    G01270652Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
