Pinpoint Test B: The 4-Wheel Drive (4WD) Control Module Does Not Respond To The Diagnostic Tool: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

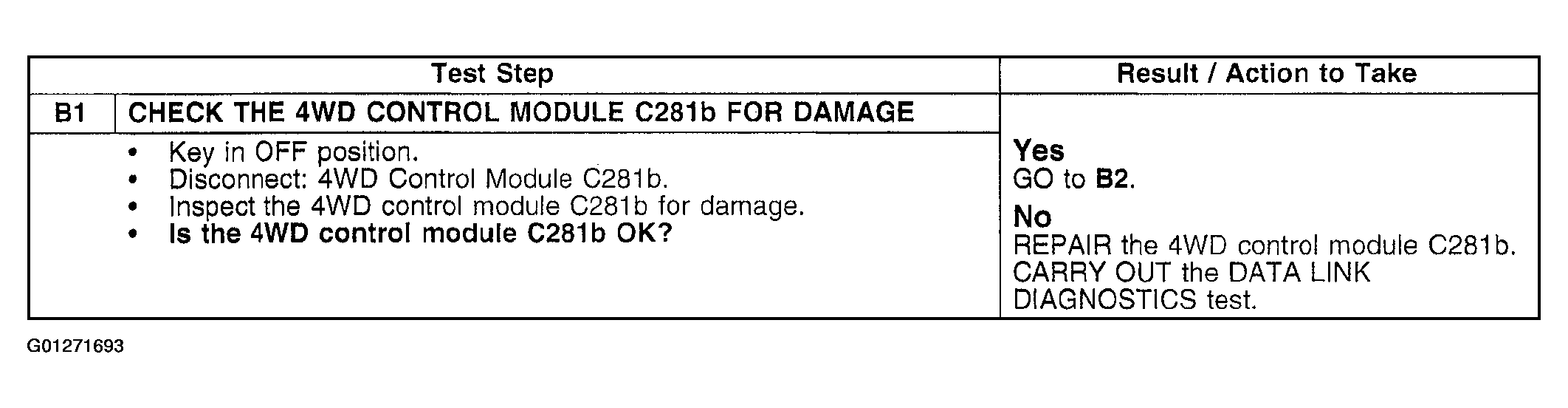

Fig 1: Pinpoint Test B 4-Wheel Drive (4WD) Control Module Does Not Respond To Diagnostic Tool (B1)
G01271693Courtesy of FORD MOTOR CO.

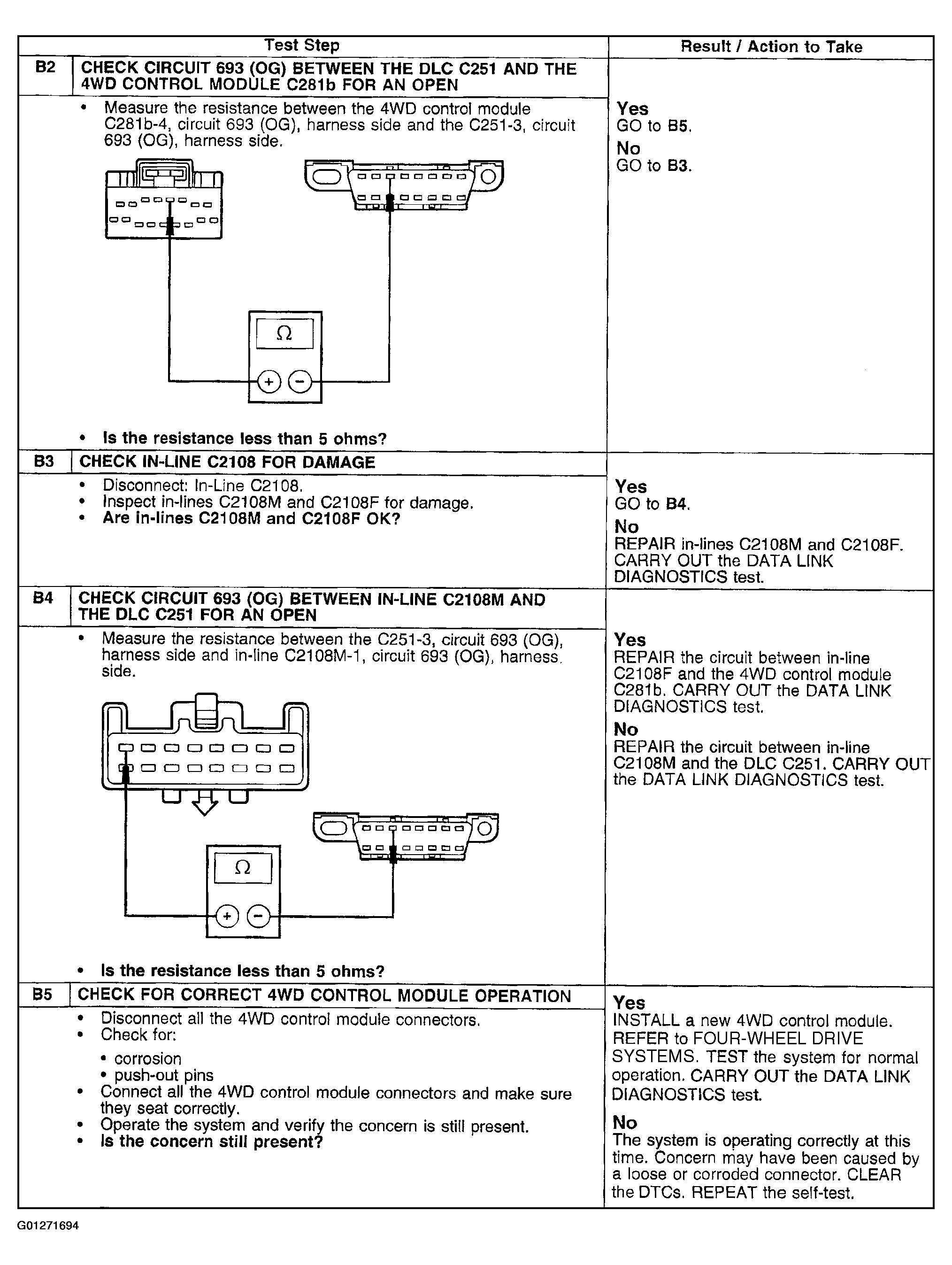

Fig 2: Pinpoint Test B 4-Wheel Drive (4WD) Control Module Does Not Respond To Diagnostic Tool (B2 - B5)
G01271694Courtesy of FORD MOTOR CO.
