Pinpoint Test F: The Parking Aid Module Does Not Respond To The Diagnostic Tool: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

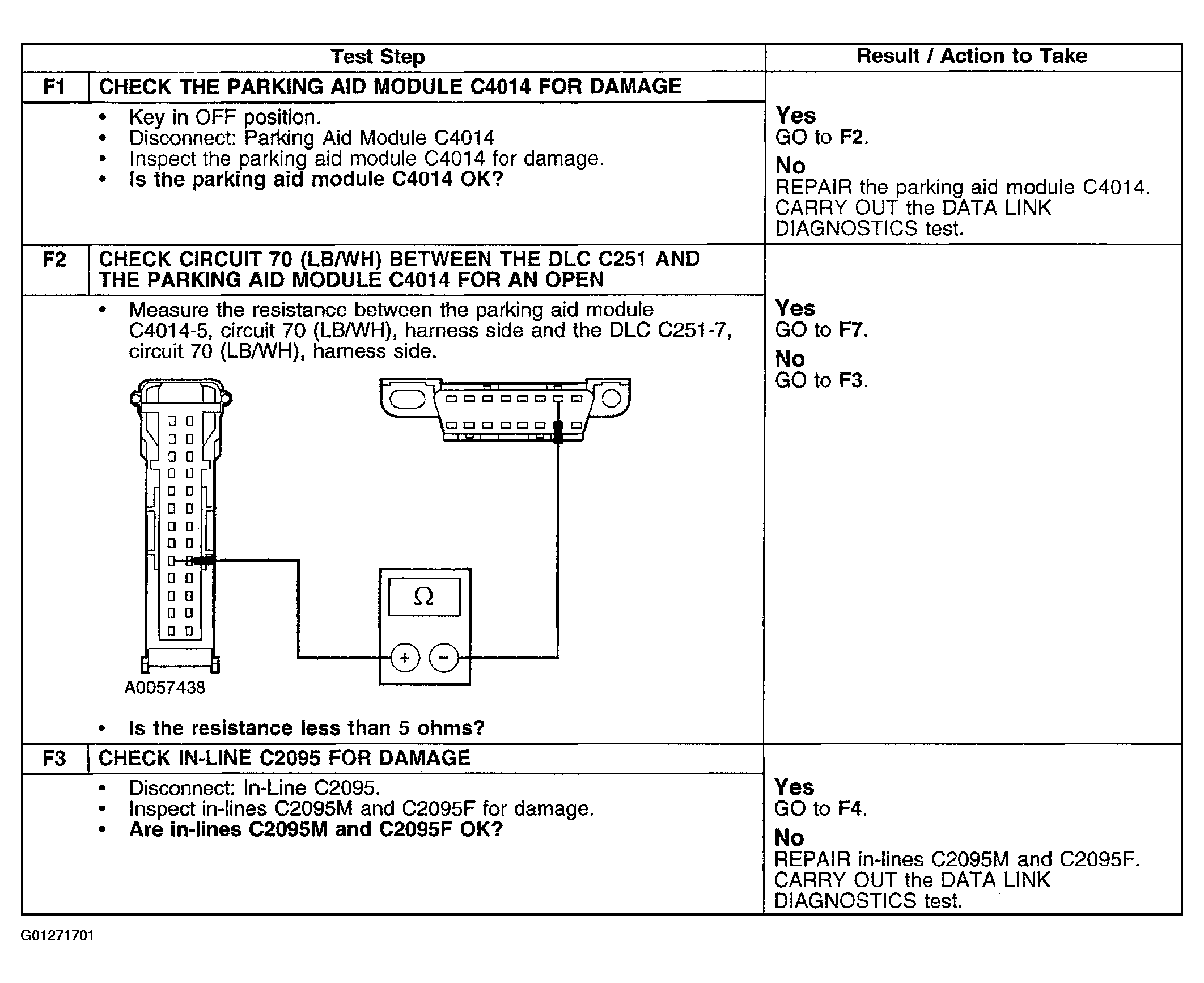

Fig 1: Pinpoint Test F Parking Aid Module Does Not Respond To Diagnostic Tool (F1 - F3)
G01271701Courtesy of FORD MOTOR CO.

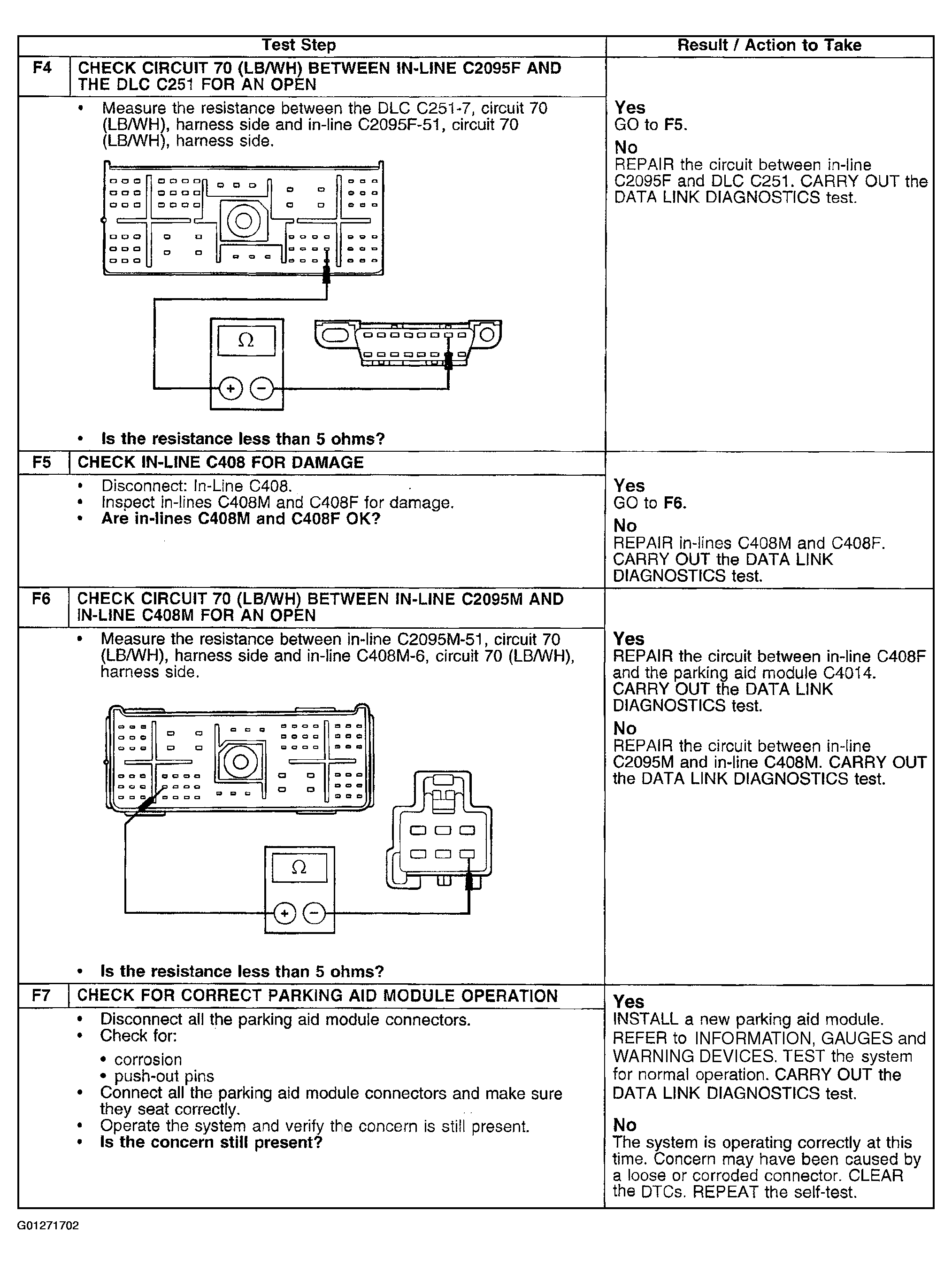

Fig 2: Pinpoint Test F Parking Aid Module Does Not Respond To Diagnostic Tool (F4 - F7)
G01271702Courtesy of FORD MOTOR CO.
