Pinpoint Test B: DTC 1897 - Steering VAPS Circuit Loop Failure

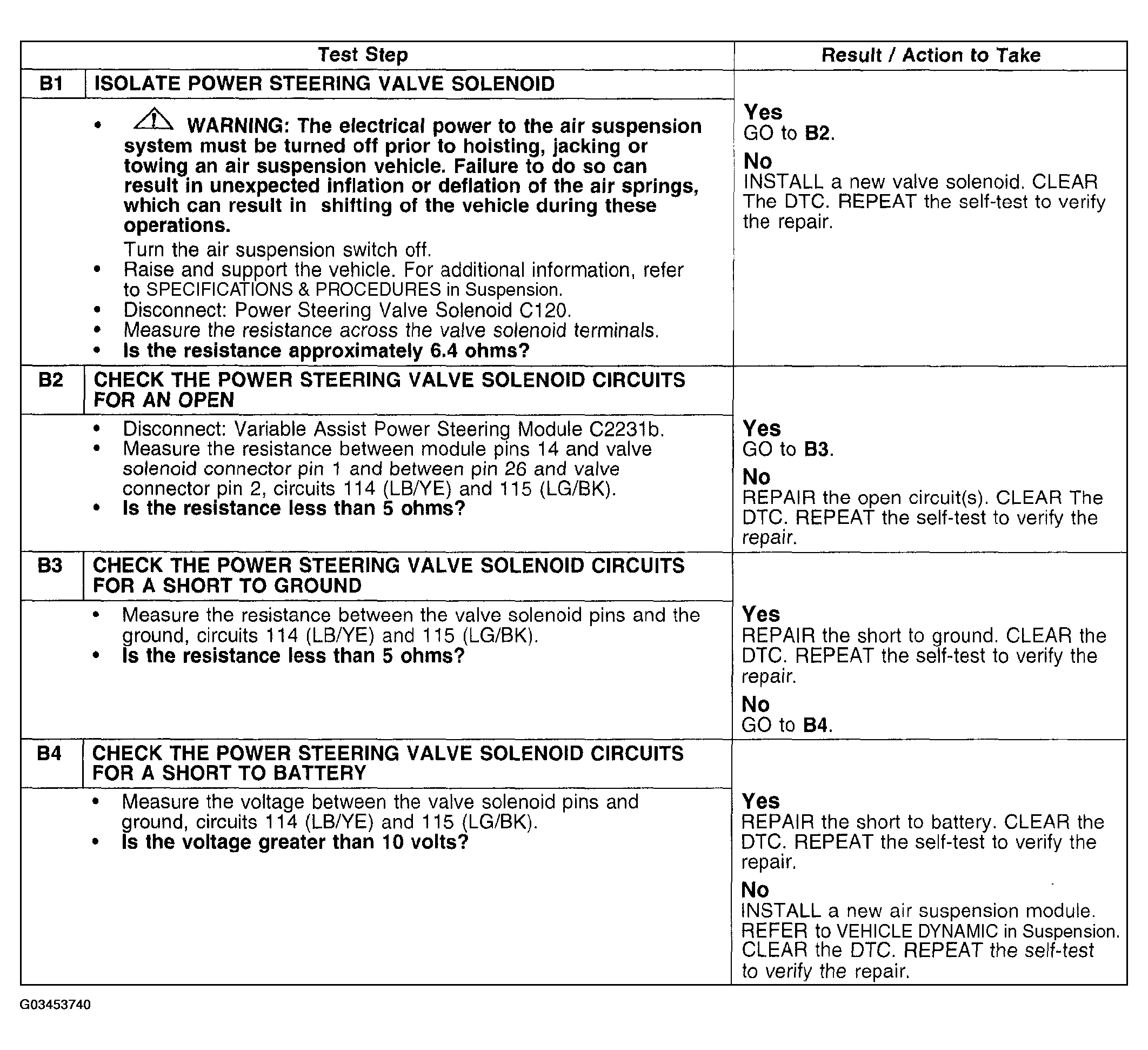

Fig 1: Pinpoint Test B: DTC 1897 - Steering VAPS Circuit Loop Failure (Step B1 - B4)
G03453740Courtesy of FORD MOTOR CO.
