Pinpoint Test A: The Anti-Lock Brake System (Abs) Control Module Does Not Respond To The Diagnostic Tool (SCP)

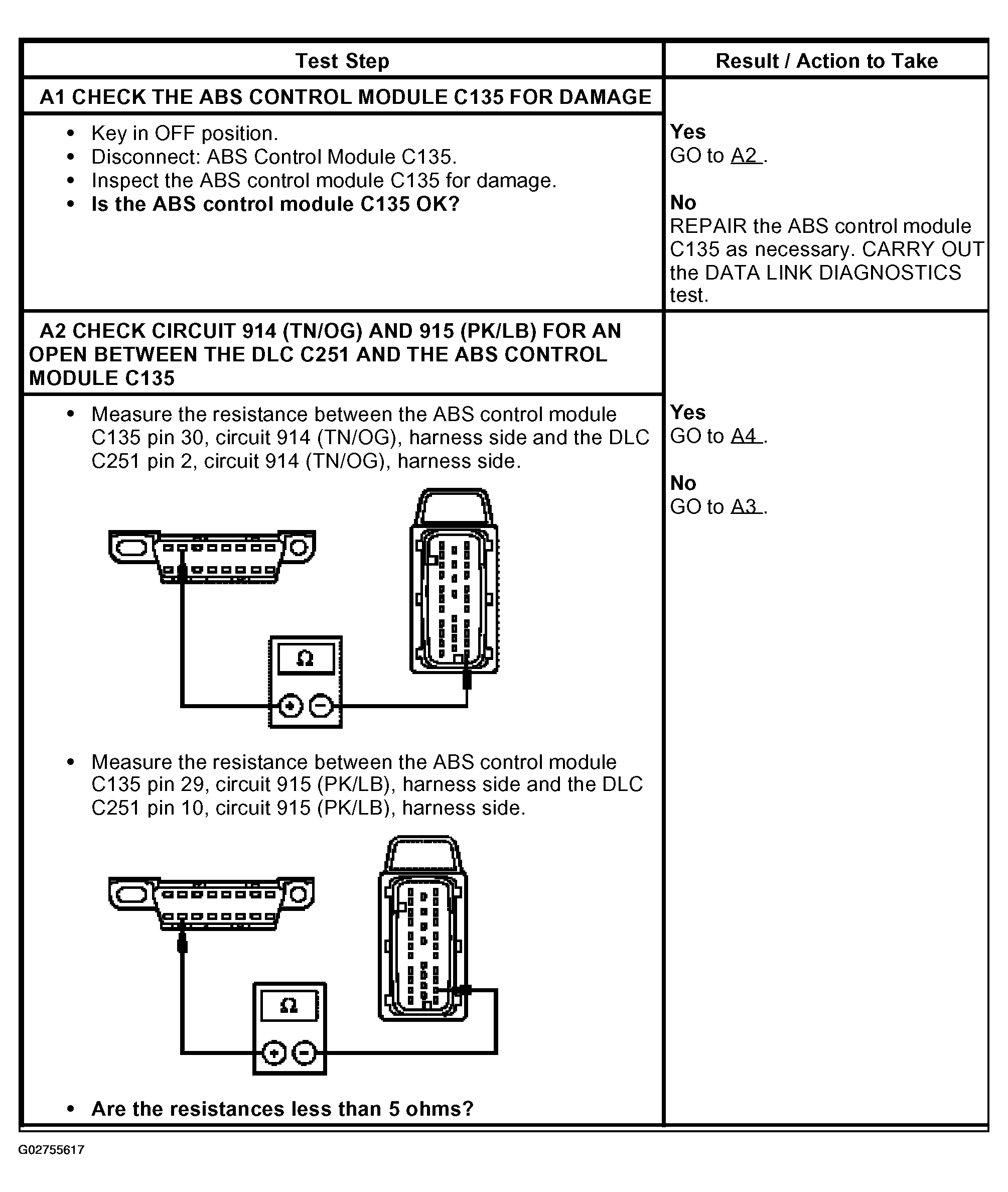

Fig 1: Pinpoint Test A: Anti-Lock Brake System (ABS) Control Module Does Not Respond To Diagnostic Tool (SCP) (Step A1 & A2)
G02755617Courtesy of FORD MOTOR CO.

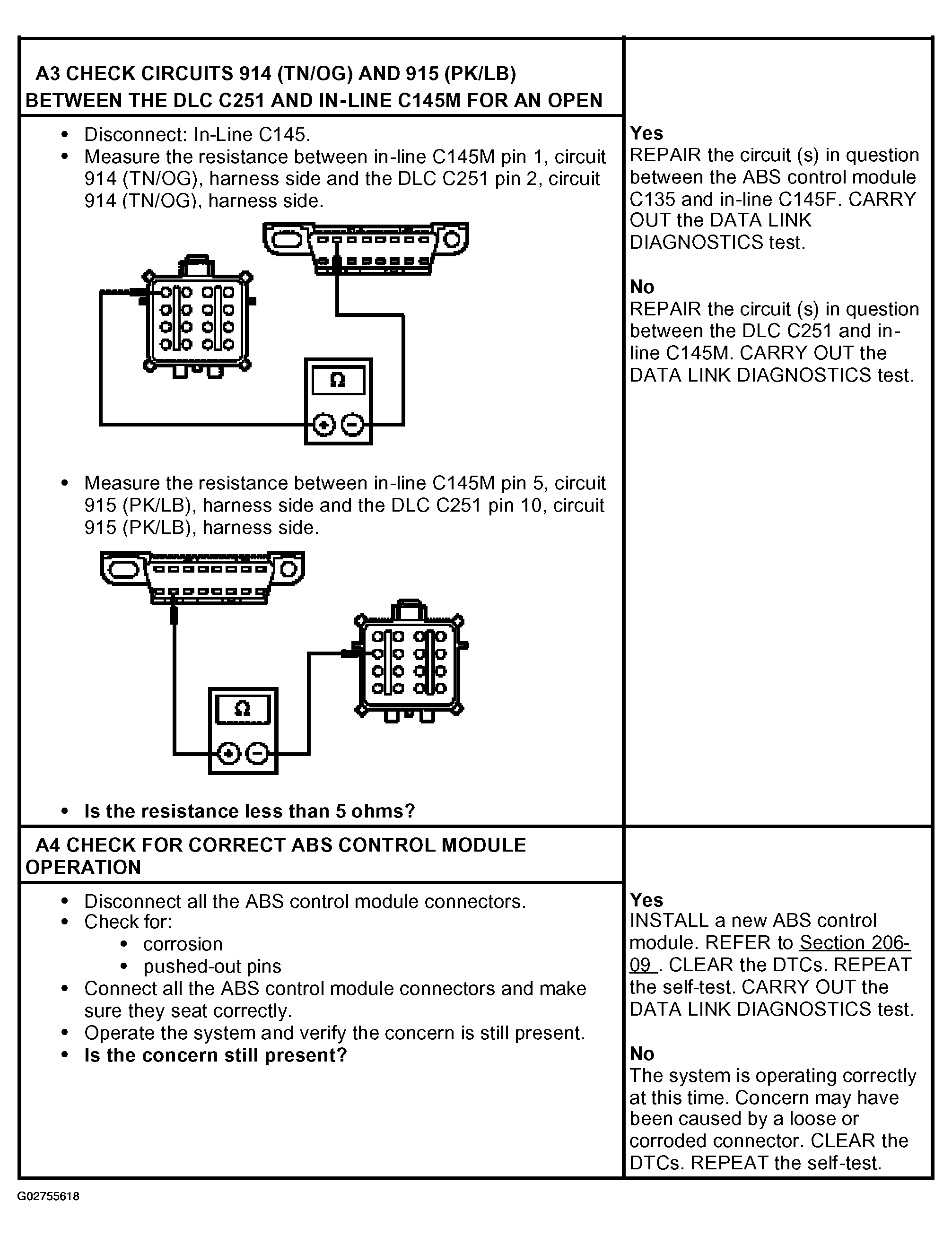

Fig 2: Pinpoint Test A: Anti-Lock Brake System (ABS) Control Module Does Not Respond To Diagnostic Tool (SCP) (Step A3 & A4)
G02755618Courtesy of FORD MOTOR CO.
