Pinpoint Test B: The Anti-Lock Brake System (Abs) Control Module Does Not Respond To The Diagnostic Tool (ISO)

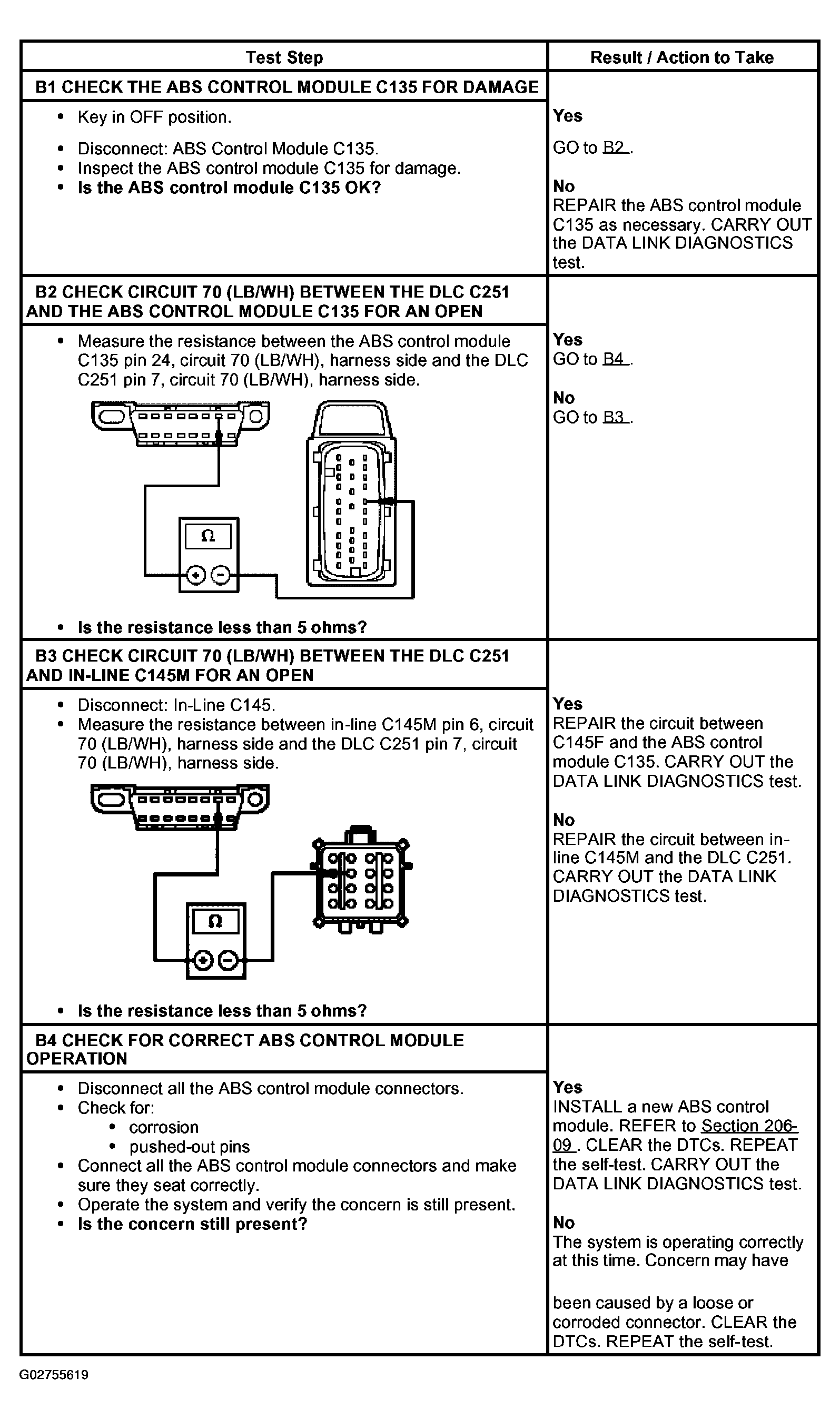

Fig 1: Pinpoint Test B: Anti-Lock Brake System (ABS) Control Module Does Not Respond To Diagnostic Tool (ISO)
G02755619Courtesy of FORD MOTOR CO.
