Pinpoint Test D: The Natural Gas Vehicle Module (NGVM) Does Not Respond To The Diagnostic Tool

Fig 1: Pinpoint Test D: Natural Gas Vehicle Module (NGVM) Does Not Respond To Diagnostic Tool (Step D1 & D2)
G02755621Courtesy of FORD MOTOR CO.

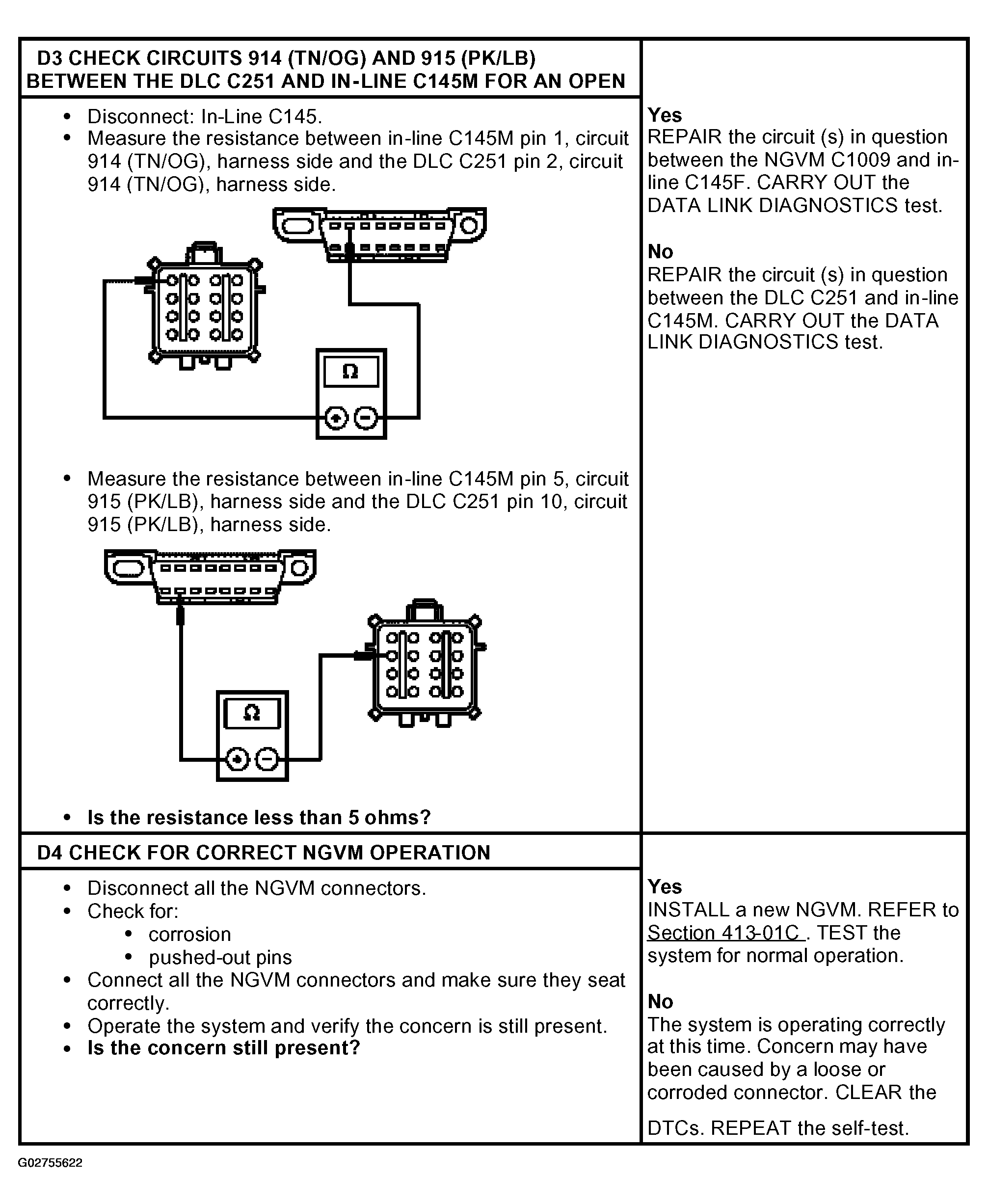

Fig 2: Pinpoint Test D: Natural Gas Vehicle Module (NGVM) Does Not Respond To Diagnostic Tool (Step D3 & D4)
G02755622Courtesy of FORD MOTOR CO.
