Pinpoint Test E: The Electronic Automatic Temperature Control (EATC) Module Does Not Respond To The Diagnostic Tool -

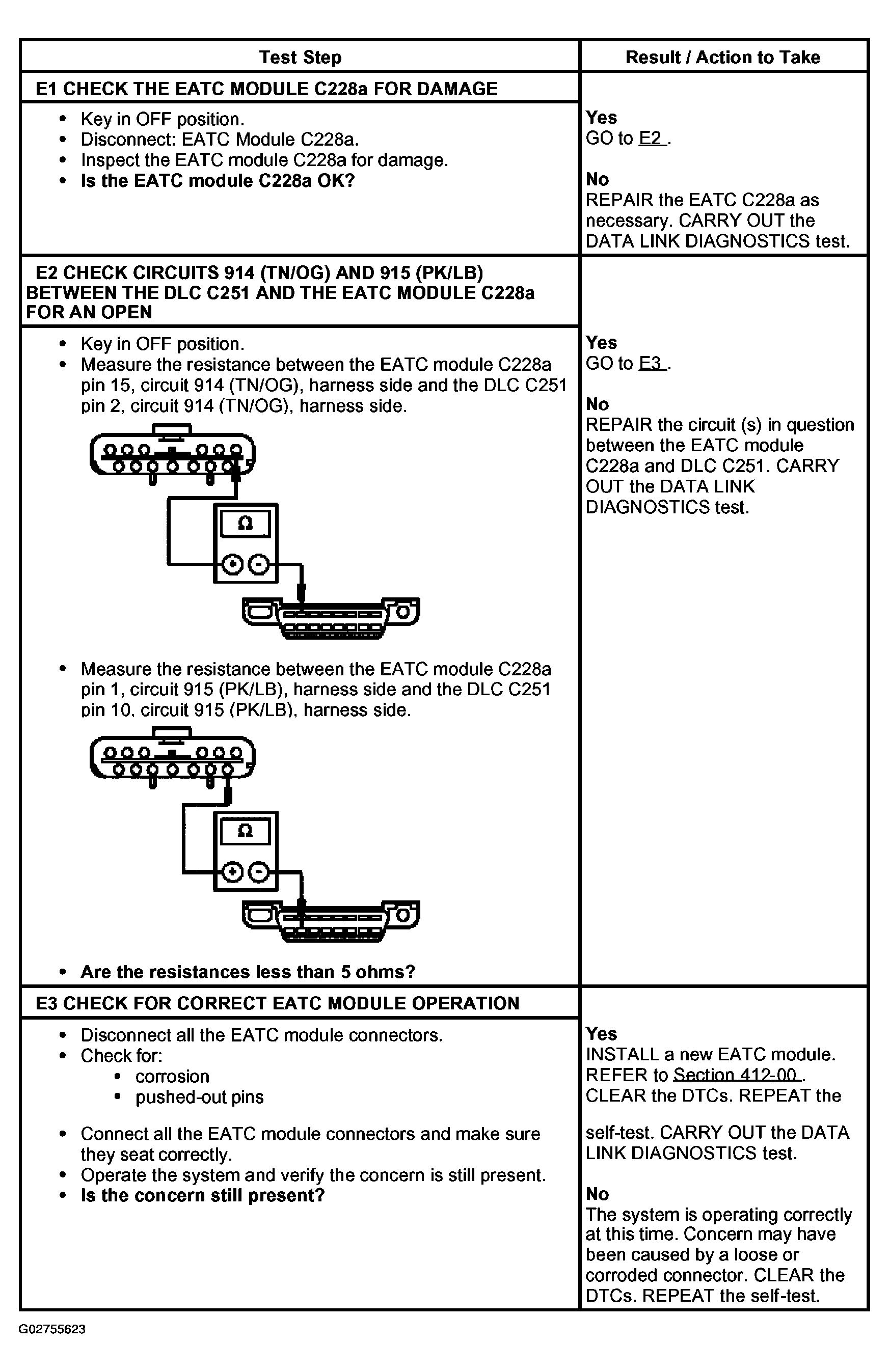

Fig 1: Pinpoint Test E: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool
G02755623Courtesy of FORD MOTOR CO.
