Pinpoint Test F: The Restraint Control Module (RCM) Does Not Respond To The Diagnostic Tool

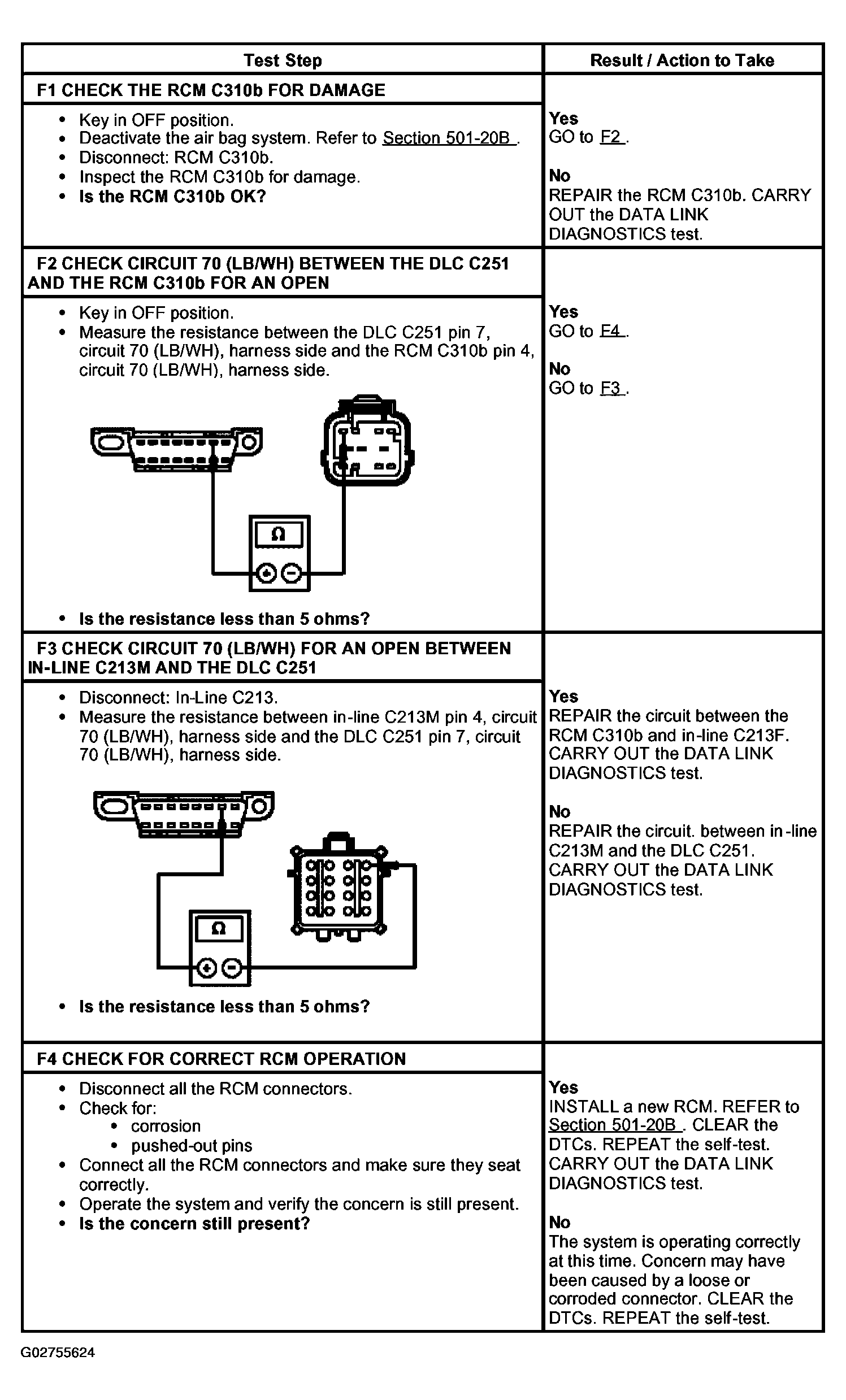

Fig 1: Pinpoint Test F: Restraint Control Module (RCM) Does Not Respond To Diagnostic Tool
G02755624Courtesy of FORD MOTOR CO.
