Pinpoint Test G: The Powertrain Control Module (Pcm) Does Not Respond To The Diagnostic Tool

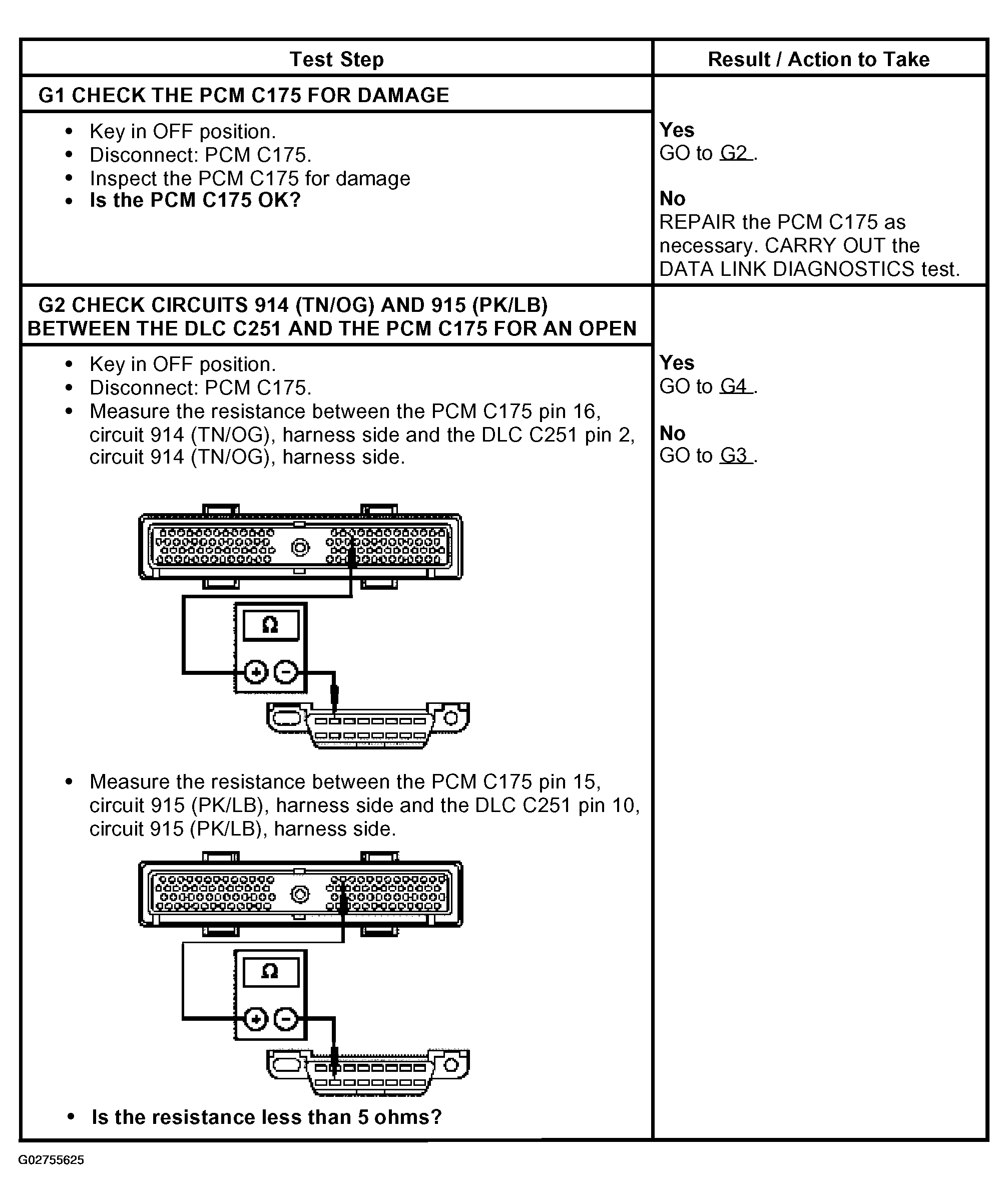

Fig 1: Pinpoint Test G: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Step G1 & G2)
G02755625Courtesy of FORD MOTOR CO.

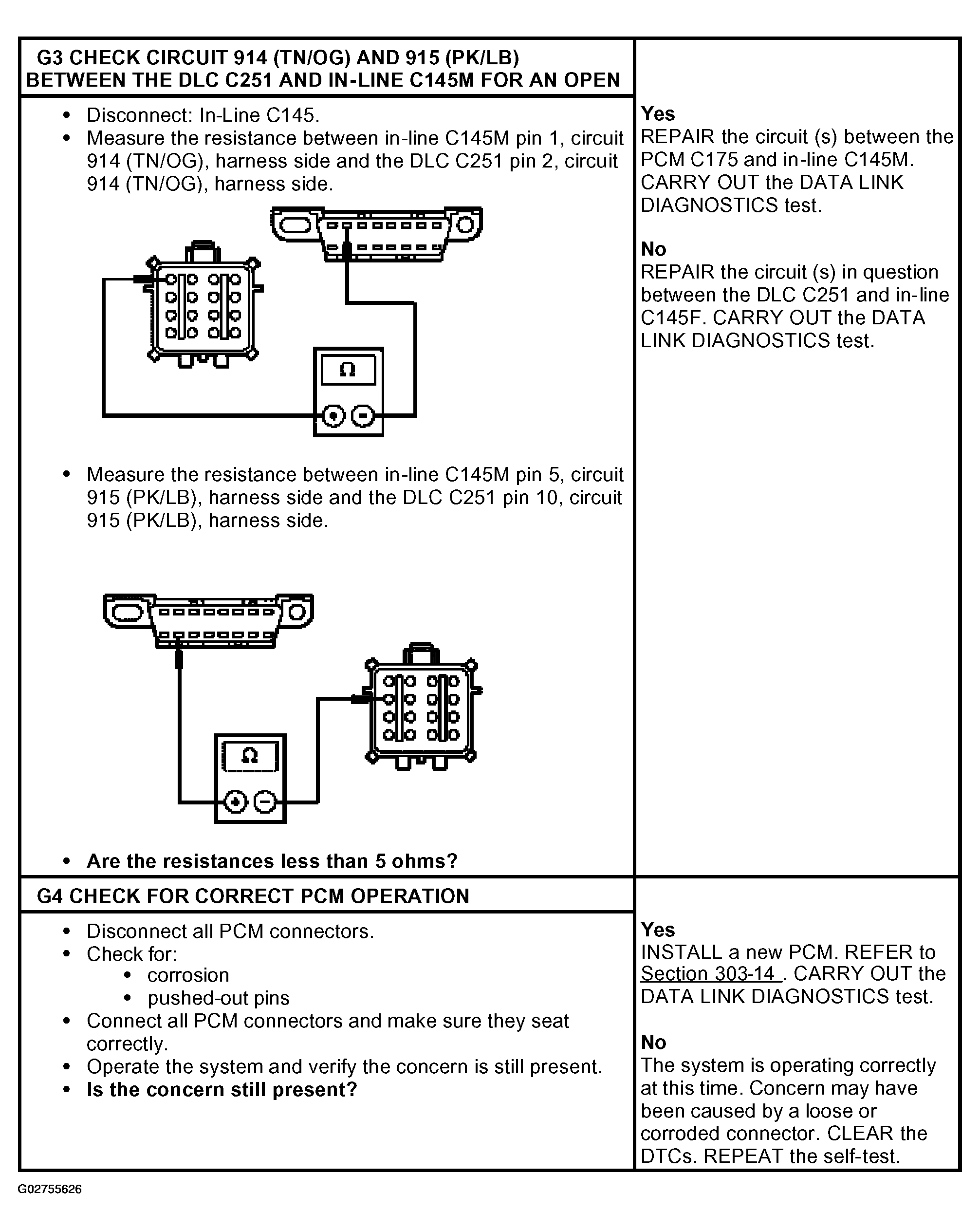

Fig 2: Pinpoint Test G: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Step G3 & G4)
G02755626Courtesy of FORD MOTOR CO.
